Petrel advanced gridding and upscaling

Preserve resolution throughout your model, maintaining geologic and reservoir flow integrity

Overview

With any type of modeling there exists an enormous challenge around scale. In reservoir modelling, this challenge typically focuses on the difference in resolution between core, well log, well test, and seismic, where the complexity remains in trying to connect and relate these different resolutions of data.

Local grid refinement around a multilateral well.

Unstructured grids around the well.

Coarse and fine geology.

Dual-scale modelling, fault shapes preserved in coarse (left) and fine (right) grids.

Maximizing reservoir contact by investigating different well path scenarios using uncertainty workflows in Petrel RE.

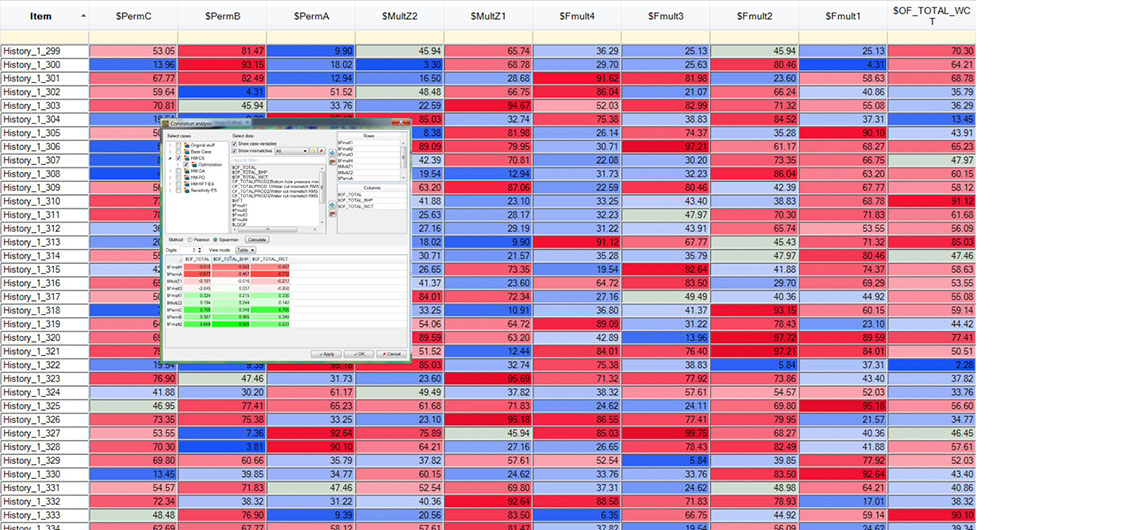

Investigate the impact variables can have on total production by harnessing the power of different uncertainty parameterization.

Investigate different sweep scenarios to maximize oil and gas recovery while minimizing costly injected fluids.

Applications

Ensure correct property sampling

Reservoir models commonly begin as very detailed geological models used to calculate in-place volumes. These models are then frequently coarsened for dynamic flow simulation. The advanced gridding & upscaling module provides a detailed, yet intuitive workflow to take the static geomodel structure and property definition to a coarser more simulation-appropriate gridding resolution where engineers and geoscientists can ensure correct property sampling and averaging methodologies are used.

Additionally, this module gives the ability to change the grid resolution locally, where wells or planar hydraulic fracture events can be gridded in higher resolution where there is crucial pressure and saturation changes occurring in a very short period of time.

Benefits

With the advanced gridding & upscaling module for Petrel™, engineers and geoscientists can manipulate gridding resolution with ease in order to portray either more or less detailed aspects of the reservoir model at the appropriate scale.

Easily manage a large number of uncertainty simulations to understand correlations and trends across an array of uncertainty parameters.

Features

Advanced gridding & upscaling module for Petrel
Ability to change the grid resolution locally
Dual-scale modeling
Ability to investigate different sweep scenarios to maximize oil and gas recovery while minimizing costly injected fluids.
