Maximus Eon motor improves ESP reliability with cooler running temperatures as compared with previous-generation ESP motors.

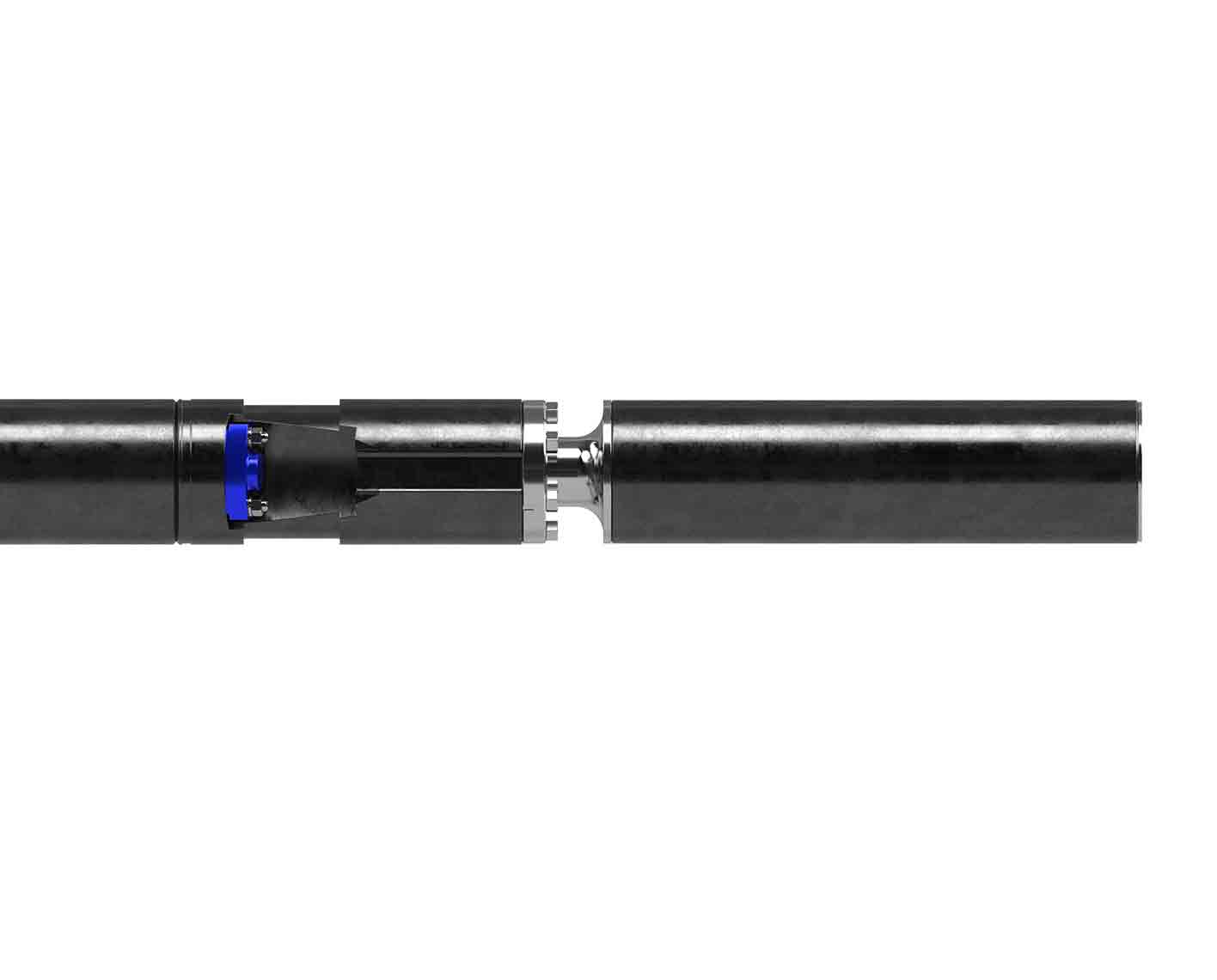

REDA Maximus Eon

Extended-life, install-ready ESP motor

Download PDF Contact Us Related Resources

UN SDGs

Aligns with United Nations Sustainable Development Goals 12 and 13.

Emissions Reduction

Reduces CO2 emissions by up to 86 metric tons per well per year—equivalent to 347,835 km driven by an average passenger vehicle.^†‡

Energy Consumption Reduction

Lowers electricity consumption by a minimum of 3.5%.^†

Multi-Industry Application

More than 200,000 ESPs currently operate in oil and gas, geothermal, mining, and other industries.

Wide-ranging impact

Hundreds of thousands of ESPs currently operate in diverse industries, and most of them use induction motor technology. REDA Maximus Eon extended-life, install-ready ESP motor’s optimized electromagnetic design delivers a minimum of 3.5% higher electrical power efficiency—directly reducing energy consumption and Scope 1 or Scope 2 emissions, with applicability across a range of industrial sectors.

Maximus Eon motor improves ESP performance with cooler running temperatures as compared with previous induction motor technology.

Maximus Eon motor improves ESP performance with cooler running temperatures.

Maximus Eon motor (right) improves ESP performance with cooler running temperatures compared with previous induction motor technology (left). It also delivers higher available horsepower per rotor and increased application flexibility.

Reduce opex

High-efficiency, electromagnetic-optimized motor reduces your power consumption and electricity costs

Improve reliability

Robust rotor assembly and bearings, better electrical resistance, and cooler running temperatures extend run life, reducing workover costs and deferred production

Add flexibility

Shorter motor length gives you more flexibility in string position and eliminates the need for tandem configurations

Motor OD: 4.56 in [115.8 mm]

Efficiency: 85.2%

Motor length: Up to 40% shorter than previous induction motor

Increase ESP reliability and lifetime with a cooler, more robust, and more efficient motor

REDA Maximus Eon extended-life, install-ready ESP motor delivers industry-leading efficiency and power factor with optimized motor geometry for maximum electromagnetic and thermal performance through the operating range.

The two-pole, three-phase, squirrel-cage induction motor transfers generated heat to the well fluid flowing past the motor housing, and the motor thrust bearing carries the load of the rotors.

REDA Maximus Eon Motor: Introduction

Find out how your wells can benefit from a cooler, more robust high-efficiency ESP motor.

Improve motor performance and flexibility

The motor can be delivered with standard thermally optimized windings or encapsulated windings for extra cooling that lower operating temperature by as much as 30 degF [16.8 degC]. A temperature-sensing device enables real-time monitoring of motor-winding temperature.

Simplify installation and enable real-time monitoring

The motors are factory vacuum filled in a controlled environment with high-temperature synthetic oil to provide dielectric strength, lubrication for bearings, and thermal conductivity. MaxJoint ESP flange connection and MaxLok ESP quick-plug motor lead extension (MLE) simplify installation at the wellsite. The gauge-ready base is also compatible with any Phoenix artificial lift downhole monitoring systems sensor for real-time monitoring of ESP and reservoir properties.

Rendering showing the REDA Maximus Eon motor design for cooler running temperatures and longer lifetime.

The new electromagnetic-optimized geometry enables boosting horsepower by 33% compared with prior-generation motors.

† The performance improvement is based upon a 540-hp motor configuration and in comparison with previous-generation induction motor technology. Calculations are based on a run life of 365 days with 100% uptime and take into consideration efficiency losses of the power cable, variable frequency or variable speed ESP drive, and transformer. The conversion from electricity to CO2 is based on the IEA (2019) Emission Factors reference of 485.30 g of CO2/kW.h.

‡ The potential CO2 savings per year per well are equivalent to eliminating emissions from 216,135 miles [347,835 km] driven by an average passenger vehicle, as determined using the Environmental Protection Agency’s greenhouse gas equivalencies calculator.
