Remove debris loosened while cleaning the blowout preventer (BOP), wellhead, and riser

The WELL PROTECTOR debris collection tool is engineered to collect debris loosened during BOP and wellhead cleaning as well as after testing BOP rams. Our WELL PROTECTOR tool acts as a backup to capture debris that is not circulated out or falls down into the well. The tool also is designed to validate that all debris was removed from the wellbore.

The tool is run below the wellhead and inside the casing during BOP and wellhead jetting and after function testing of BOP rams. It also can be positioned in the casing during riser cleaning operations or when retrieving wear bushings and bore protectors.

Manage debris and validate with diverter cup

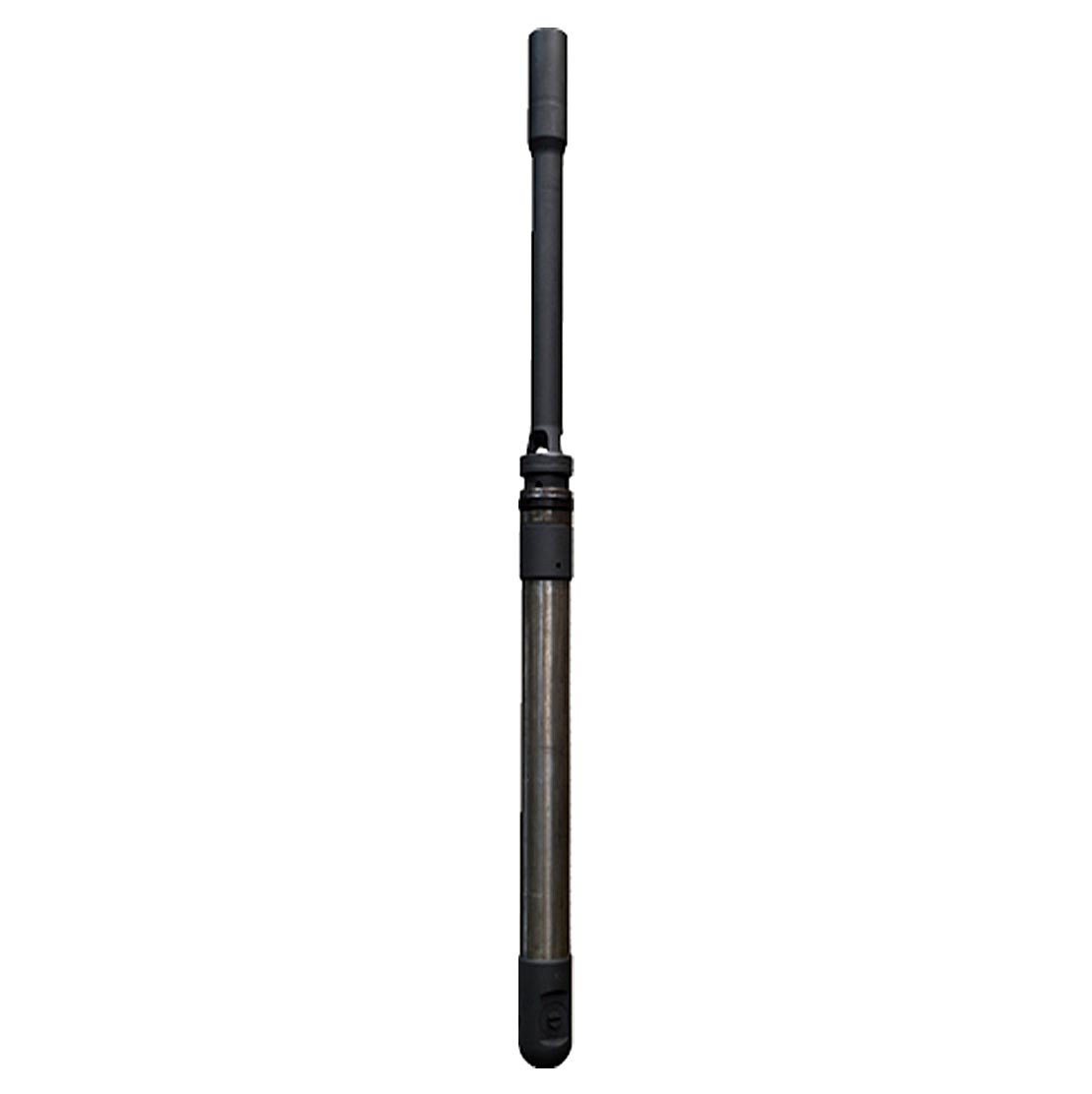

The M-I SWACO WELL PROTECTOR tool features a large-capacity 6-ft wire-wrap screen to filter both small- and large-size debris. A rounded bull nose on the bottom acts as a guide and includes a large valve for easy removal of collected material. A diverter cup and ported standoff guide above the screen validate that all the debris was collected rather than falling around the outside of the tool.

The WELL PROTECTOR tool is equipped with an integral drillpipe-handling sub for slips and elevators and a 4½-in IF (NC 50) box connection.
