CAMFRAC

Isolation system

Concrete blue texture

Enable hydraulic fracturing at pressures higher than your tubing spool outlet ratings

The CAMFRAC isolation system is designed to accommodate fracturing pressures in excess of the upper flange and outlet pressure ratings of a Type C tubing spool.

The fracturing sleeve protects the bore of the spool from high pressure and erosion while enhanced connection technology allows fracturing pressures of 10,000 psi using a 5,000-psi-rated tubing spool and 15,000 psi using a 10,000-psi-rated tubing spool.

The system is available for 7 1/16-in Type C tubing spool profiles, and it has full opening to both 4 1/2-in and 5 1/2-in production casings.

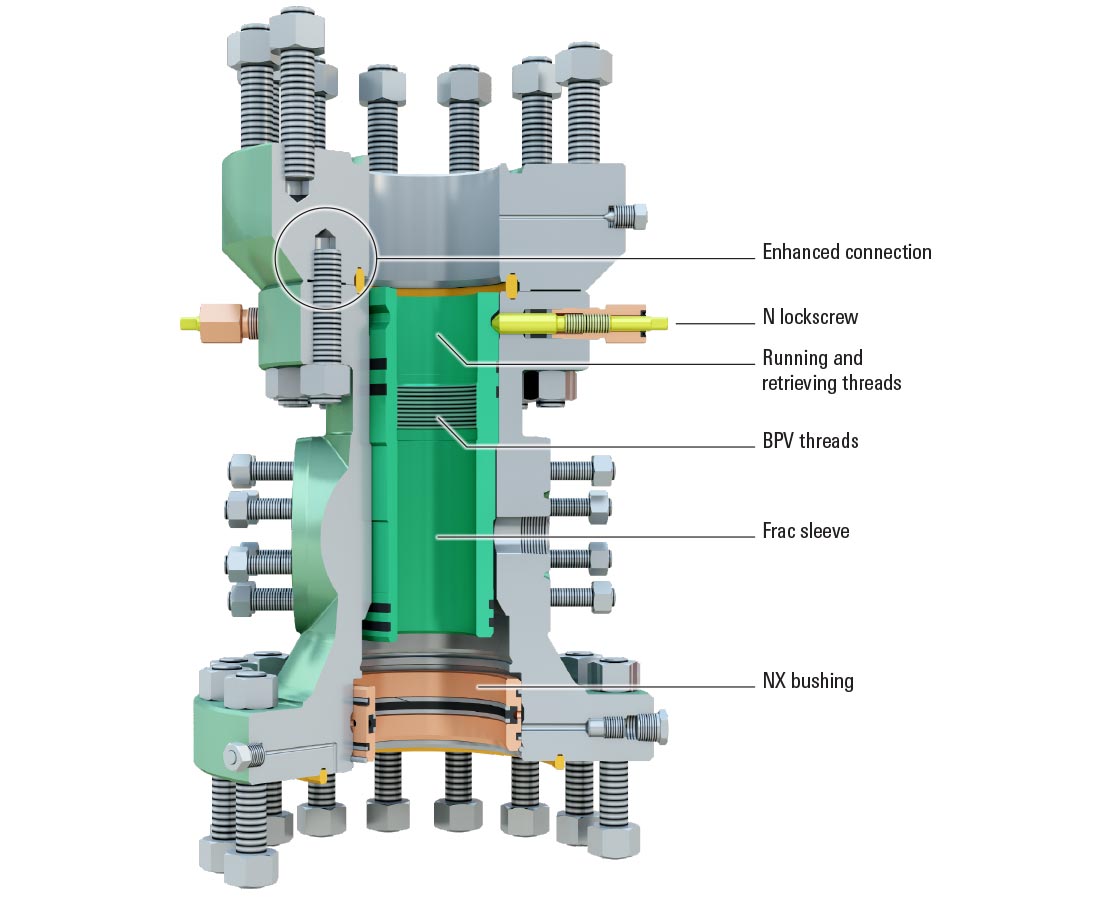

CAMFRAC isolation system Diagram
CAMFRAC isolation system Diagram
CAMFRAC isolation system

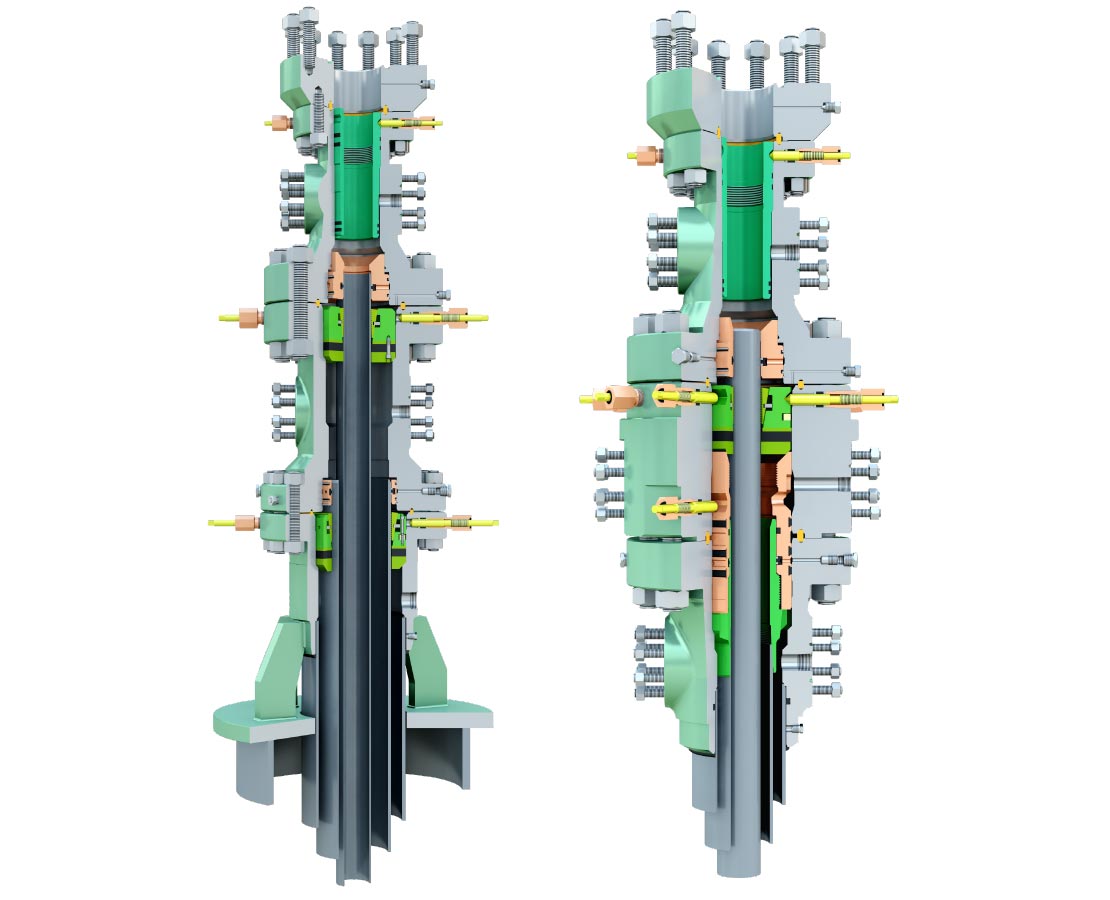

A conventional wellhead system with CAMFRAC isolation system (left) and a multibowl wellhead system with CAMFRAC isolation system.

Flexibility to do more with less

  • Eliminates the need to kill the well
  • Eliminates the need for a wireline unit
  • Mitigates erosion from high-pressure fracturing slurry
  • Leverages existing tubing spool inventory
