Intelligent flowback system

Choose from a range of options to control well flowback and acquire critical flow data in real time

Overview

Enhance performance with ease and flexibility in unconventional shale plays and other environments

Our intelligent flowback system enables both remote control and accurate measurement of well flow during flowback and well testing, helping you optimize performance while keeping personnel out of hazardous zones. You can choose from three methods of control.

Remote control: Remote adjustments executed via an edge user interface
Automated control: Automatic choke adjustment based on a predetermined schedule loaded into the software during programming
Closed loop control: Automatic choke adjustment to maintain a preset liquid or gas flow rate based on feedback from a Vx Spectra™ surface multiphase flowmeter measuring the rate of well flow.

The heart of the system is a remotely operated choke skid, which controls the CAM20-FB or CAM30-FB multitrim flowback choke. Skid components can be easily incorporated into your existing choke manifold by simply removing the manually operated choke and replacing it with the remote-controlled technology.

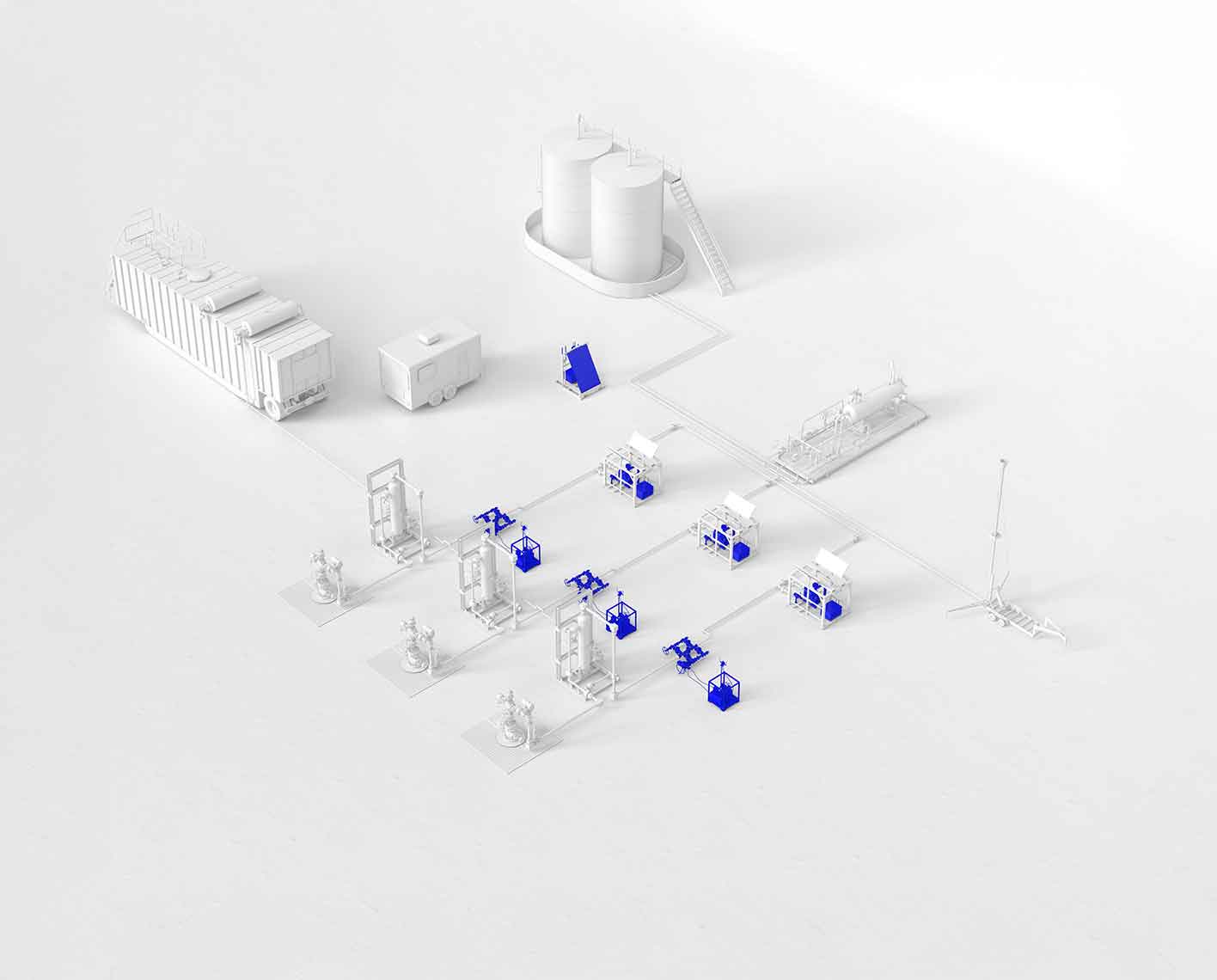

Take flowback management to the next level by using digital metering to make informed adjustments to the automated choke skid and streamline report compilation. A data acquisition skid commingles data from connected intelligent and monitoring equipment across the entire pad—such as a digitally enabled three-phase separator, wireless pressure and temperature transducers, and Vx Spectra flowmeter—enabling you to make flow control decisions based on real-time data.

Applications

Optimize well flowback after hydraulic fracturing.

Benefits

Lower risk

Reduce the need for personnel in hazardous zones and minimize potential for human errors.

Elevate performance

Benefit from accurate flow control, prevent surging during choke adjustments, and make informed decisions based on real-time data.

Decrease total cost of ownership

Extend service life with Invincible trim™ extreme wear-resistant choke trim, field proven to last up to 100 times longer than tungsten carbide choke trim.

Features

Leverage distinguishing features

Highly accurate flow control via remotely actuated chokes
Blockage detection and autorocking algorithm that clears debris in less than 7 seconds without manual intervention
Uniquely engineered, wear-resistant, adjustable multitrim choke valves with high durability and low maintenance requirements
Edge user interface with onsite metering capabilities for visualization and control without requiring cellular connectivity
Integration of reporting module into the local user interface
