Product Sheet Model A Adjustable Joint
Reliable means of spacing out and connecting the tubing between two dual packers.
Model A
Adjustable joint
The Model A adjustable joint provides a reliable means of spacing out and connecting the tubing on the short string side between two dual packers. It can also be used to space out the production tubing near the surface in single and dual completions.
The adjustable, telescoping action of the Model A enables you to set and lock it at any desired position within its adjustment length, allowing pressure integrity to be maintained in the tubing string. After the union is in place, the desired amount of tension or weight may be applied on the string. Rotational torque can be applied to the tubing through this tool.

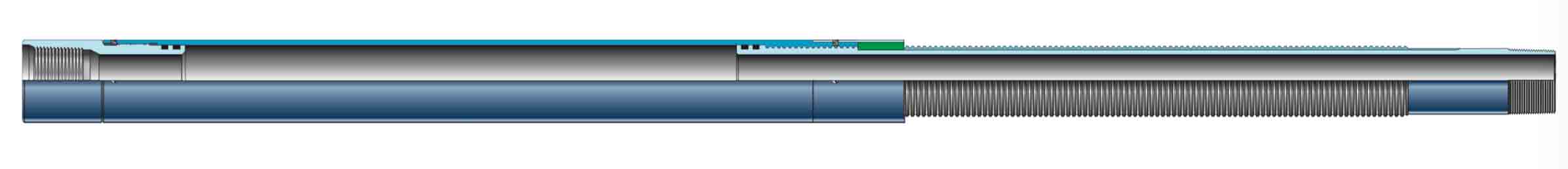

Model A adjustable joint.
| AUT-1 Adjustable Union specifications | ||||||
|---|---|---|---|---|---|---|
| AUT-1 Adjustable Union specifications, AUT-1 Adjustable Union specifications Tubing† | AUT-1 Adjustable Union specifications, AUT-1 Adjustable Union specifications, AUT-1 Adjustable Union specifications, AUT-1 Adjustable Union specifications, AUT-1 Adjustable Union specifications Adjustable Joints | |||||
| AUT-1 Adjustable Union specifications OD, in [mm] | AUT-1 Adjustable Union specifications Weight, lbm/ft | AUT-1 Adjustable Union specifications Min. Casing Size for Joint, in [mm] | AUT-1 Adjustable Union specifications Min. Casing Size for Joint, lbm/ft | AUT-1 Adjustable Union specifications Max. OD, in [mm] | AUT-1 Adjustable Union specifications Drift, in [mm] | AUT-1 Adjustable Union specifications Adjustment Length, ft [m] |
| AUT-1 Adjustable Union specifications 1.900 [48.3] | AUT-1 Adjustable Union specifications 2.9 | AUT-1 Adjustable Union specifications 4.500 [114.3] | AUT-1 Adjustable Union specifications 9.5 | AUT-1 Adjustable Union specifications 2.500 [63.5] | AUT-1 Adjustable Union specifications 1.516 [38.5] | AUT-1 Adjustable Union specifications 2.0 [0.7] |
| AUT-1 Adjustable Union specifications 2.375 [60.3] | AUT-1 Adjustable Union specifications 4.7 | AUT-1 Adjustable Union specifications 4.500 [114.3] | AUT-1 Adjustable Union specifications 9.5 | AUT-1 Adjustable Union specifications 3.063 [77.8] | AUT-1 Adjustable Union specifications 1.901 [48.3] | AUT-1 Adjustable Union specifications 2.0 [0.7] |
| AUT-1 Adjustable Union specifications 2.875 [73.0] | AUT-1 Adjustable Union specifications 6.5 | AUT-1 Adjustable Union specifications 4.500 [114.3] | AUT-1 Adjustable Union specifications 15.1 | AUT-1 Adjustable Union specifications 3.668 [93.2] | AUT-1 Adjustable Union specifications 2.347 [59.6] | AUT-1 Adjustable Union specifications 2.0 [0.7] |
| AUT-1 Adjustable Union specifications 3.500 [88.9] | AUT-1 Adjustable Union specifications 9.3 | AUT-1 Adjustable Union specifications 5.000 [127.0] | AUT-1 Adjustable Union specifications 13.0 | AUT-1 Adjustable Union specifications 4.250 [108.0] | AUT-1 Adjustable Union specifications 2.867 [72.8] | AUT-1 Adjustable Union specifications 2.0 [0.7] |
† Other sizes are available on request.
