XMP

Premium multiport production packer

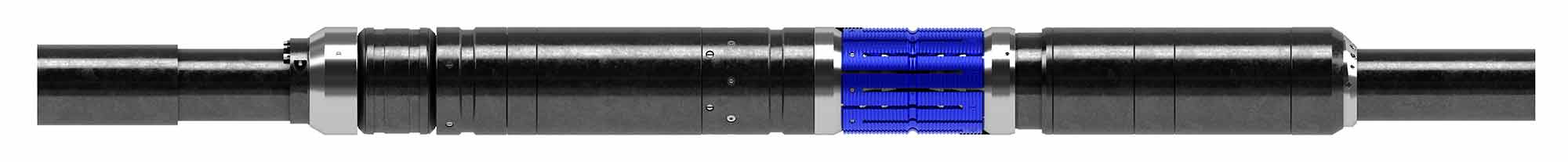

3D render of XMP packer
minus

Test and isolate intelligent completion segments

Designed for use in intelligent completions, the XMP™ premium multiport production packer is a tubing-conveyed, hydraulic-set, retrievable packer with multiple bypass configurations for hydraulic control lines or electric conduits. It is installed with the completion tubing and set by applying pressure to the tubing.

Applicable in single- and dual-zone completions, the packer is capable of surface testing and has a short length to facilitate running into the well.

Rated up to 10,000 psi [69 MPa]
Rated up to 350 degF [177 degC]
Validated to ISO 14310 and API Spec 11D1 V0
XMP premium multiport production packer.
  • Single- and dual-zone completions
  • Single-trip completions
  • Intelligent completions
  • Vertical, deviated, or horizontal wellbores

Add flexibility for intelligent completions

The setting mechanism eliminates pipe movement. The packer is available with a standard cut-to-release (CTR) configuration; either an explosive jet cutter or mechanical pipe cutter can be used. A straight-pull-to-release (SPR) option can also be provided.

The barrel slip design makes the packer suitable for unsupported casing, and slips are located below the element to protect them from debris and minimize risks for retrieval.

  • Tensile and compressive ratings compatible with completion tubulars
  • Short packer body length
  • Premium elastomers and metallurgy
  • Antipreset and antireset mechanism
  • Centrally located hydraulic setting mechanism
