Simplify completions with a preassembled system for enhanced pumpdown perforating performance

Unity™ integrated frac plug and perf gun system revolutionizes the plug-and-perf workflow by replacing traditional, labor-intensive wellsite assembly with a prevalidated, streamlined system. This approach ensures faster deployment, fewer errors, and reliable performance across unconventional oil fields.

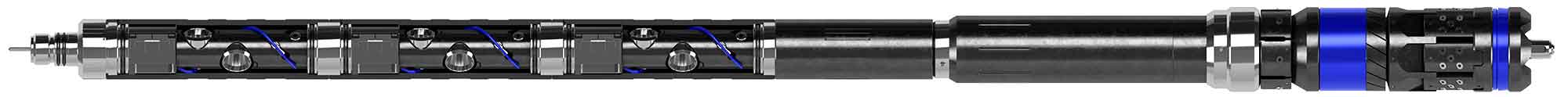

The Unity system combines a frac plug, setting tool, and perforating guns into a single system. It is delivered assembled and requires only connection and verification at the wellsite, eliminating complex interface management.

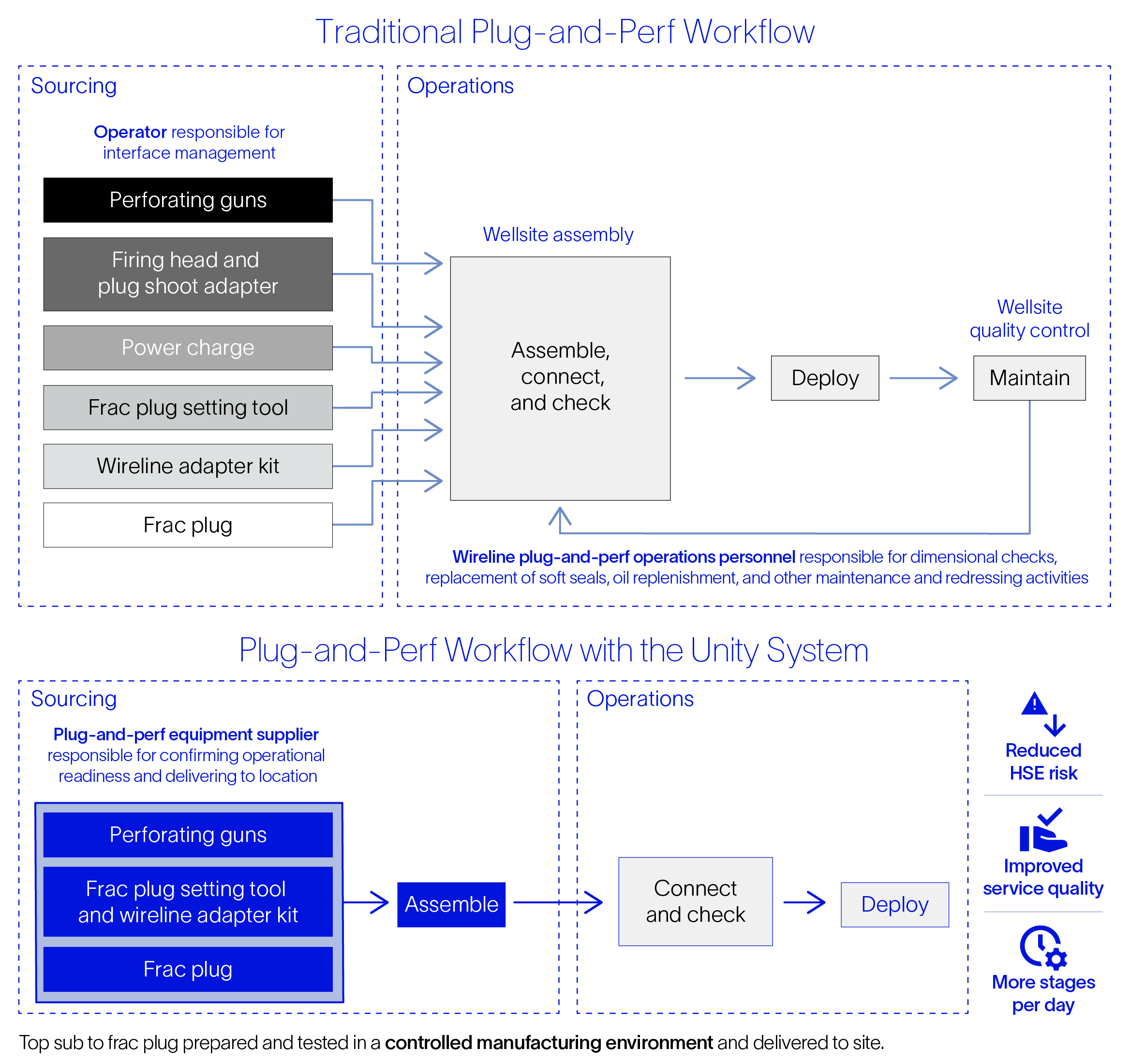

With all components integrated and pretested, the Unity system eliminates traditional workflows, which require complex onsite assembly, dimensional checks, and multicomponent quality control.

• Unconventional oilfield completions requiring pumpdown perforating systems
• Wells with potential for ovalized casings, where plug slippage is a concern
• High-efficiency operations seeking to maximize the number of stages completed per day

Improve service quality, simplify sourcing, and complete more stages per day with lower HSE risk

• Controlled offsite testing ensures consistency and operational readiness
• This technology eliminates the need for managing numerous vendors and coordinating multiple interfaces
• Streamlined operations increase efficiency, enabling higher throughput
• Preassembled system minimizes wellsite handling and exposure to hazards

• Compatibility with ReacXion™ fully dissolvable frac plugs and FracXion Micro fully composite frac plugs, providing versatility
• Controlled-burn power charge that extrudes slips securely, even in challenging environments
• Gun systems with shaped charges that provide uniform entrance holes and excellent penetration

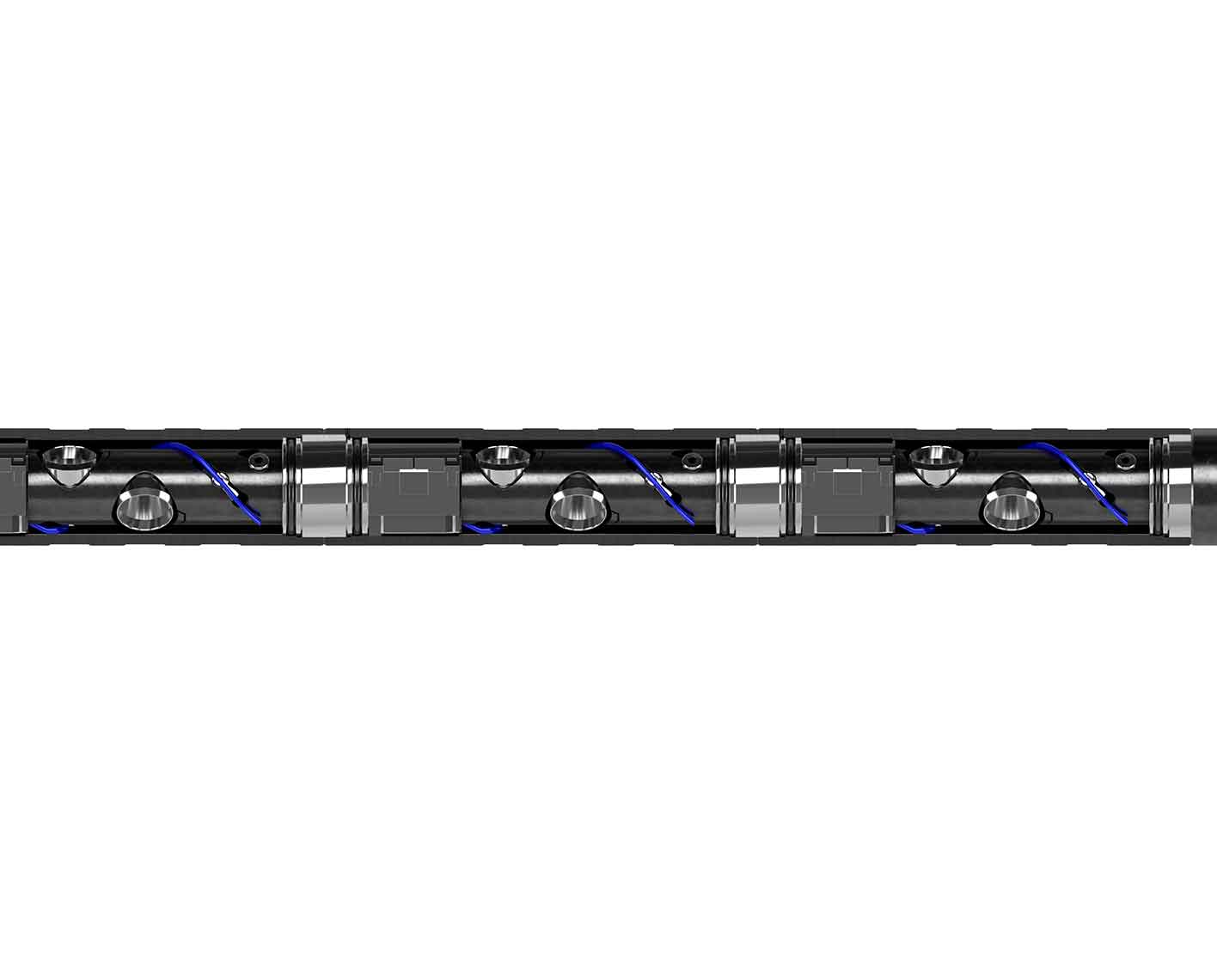

• Phased and self-orienting gun systems for flexibility to meet diverse perforation design requirements
• Preassembled system that is fully tested in a controlled manufacturing environment, arriving at the wellsite ready to connect, check, and deploy
