Sand Control Downhole Tool Systems

Maximize well performance with tools and systems that mitigate risks

OSMP OptiPac Service Mechanical Packer

High reliability and performance for openhole and cased hole sand control

Field-proven and reliable packers, service tools, fluid loss control devices, and accessories for openhole and cased hole sand control help you maximize well performance over time, mitigate formation damage, and avoid costly interventions.

Sand Control Packers

Ensure zonal isolation for gravel and frac packing applications in conventional and extended-reach wellbores through unconsolidated sands.

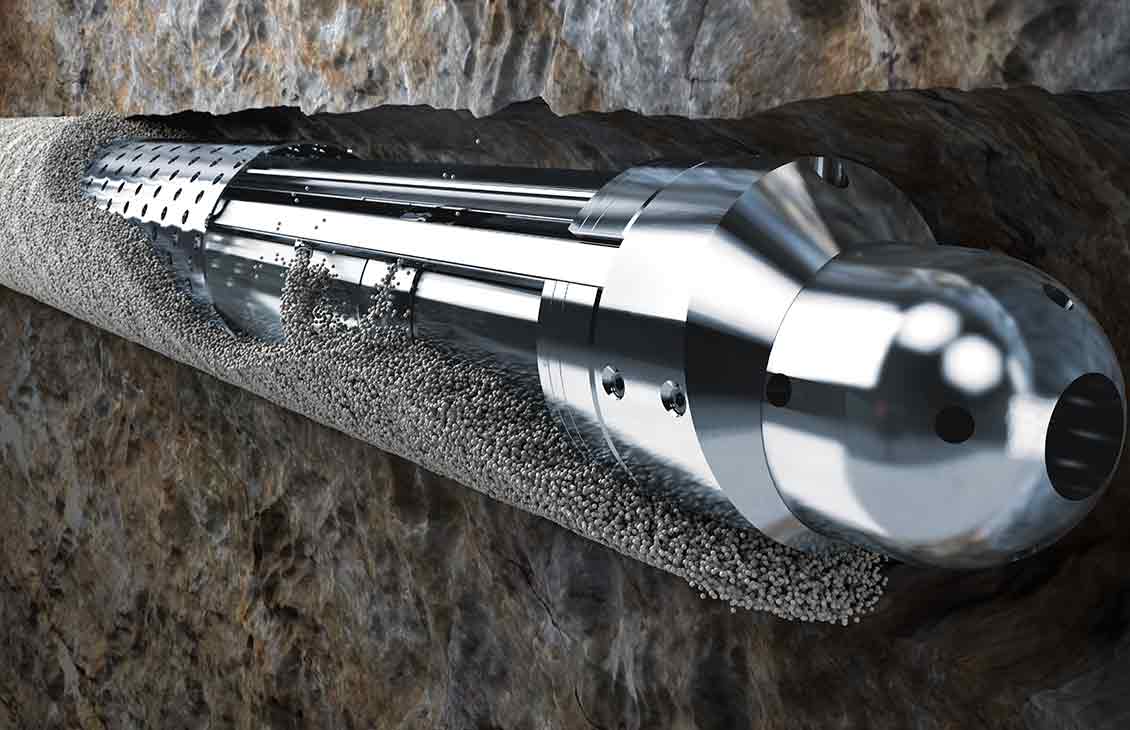

  • OSMP OptiPac Service Mechanical Packer
    OSMP
    OptiPac service mechanical packer

    Save time on Alternate Path gravel-pack services with instantaneous packer setting, and enable future water and gas shutoff. View

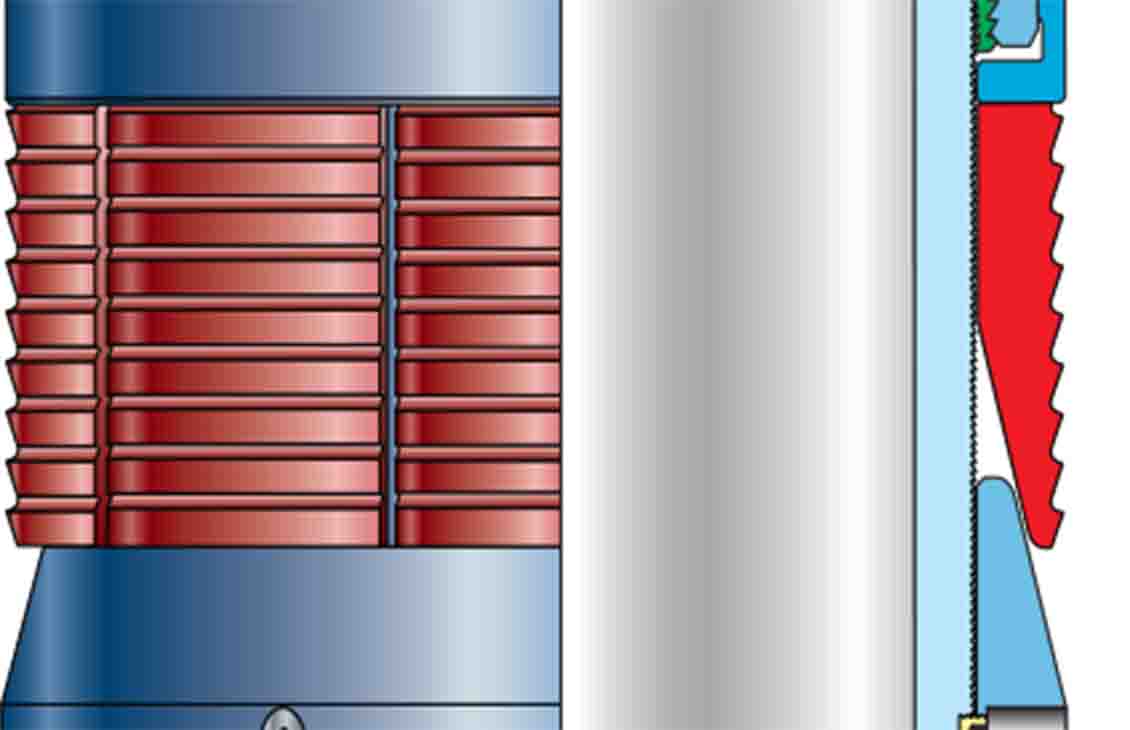

  • QL Conventional Sealbore Packer
    QL
    Conventional sealbore packer

    Save rig time by running the QL packer as a production packer, gravel-pack packer, or sump packer in standard or H2S service. View

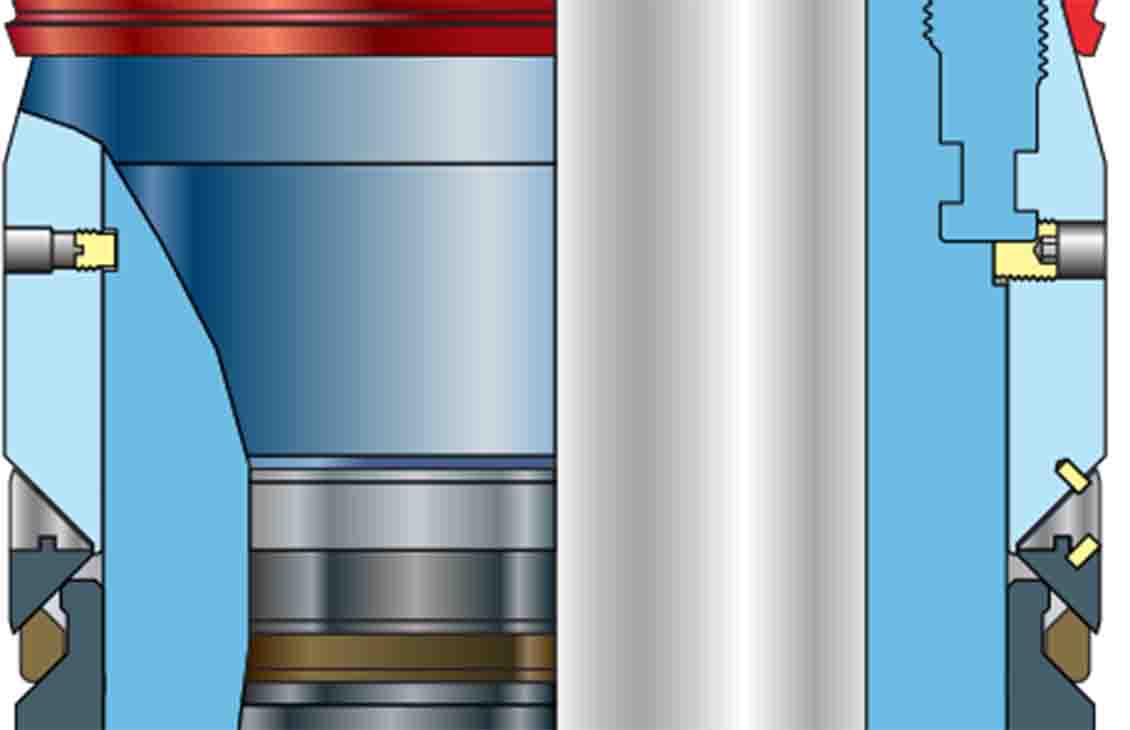

  • QLH Permanent Hydraulic-Set Production Packer
    QLH
    Permanent hydraulic-set production packer

    Achieve fast installation with this robust high-pressure production or isolation packer. View

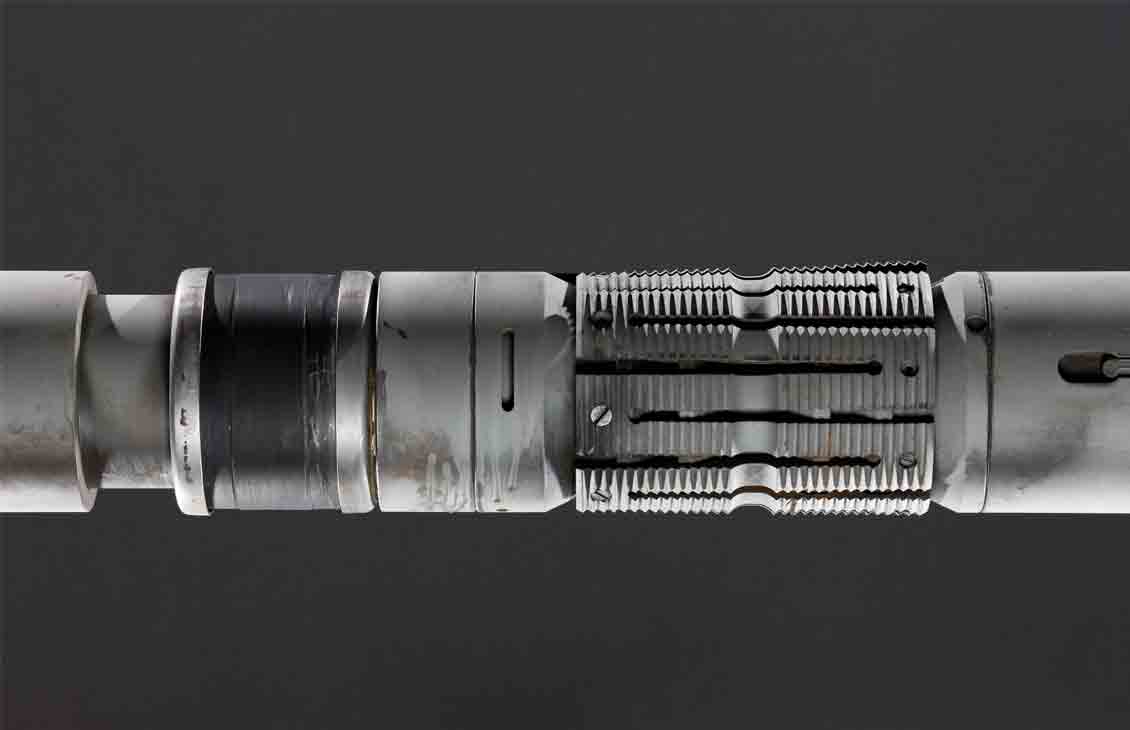

  • QUANTUM gravel-pack packer
    QUANTUM
    Gravel-pack packer for sand control

    Save rig time with a single-trip sand control solution for single- and multizone completions. View

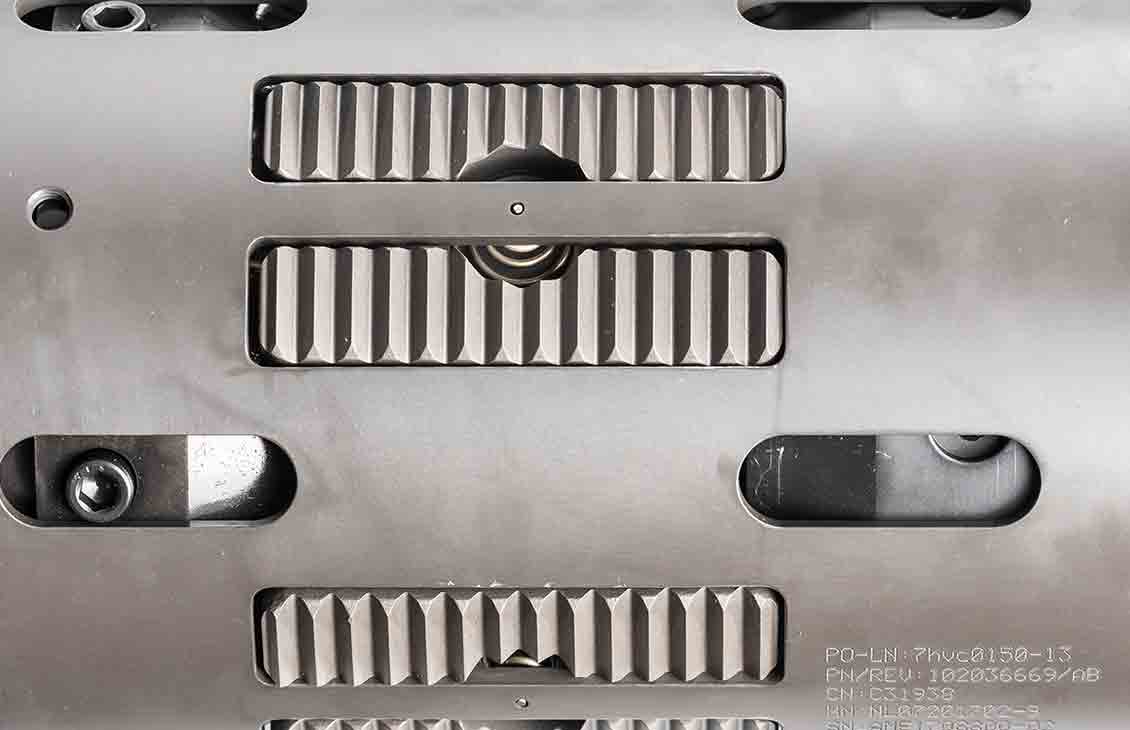

  • QUANTUM HSB Gravel-Pack Dual-Bore and Sealbore Packer
    QUANTUM HSB
    Gravel-pack dual-bore and sealbore packer

    Enable efficient performance in high-rate production wells, dual-bore completions, and gravel pack completions. View

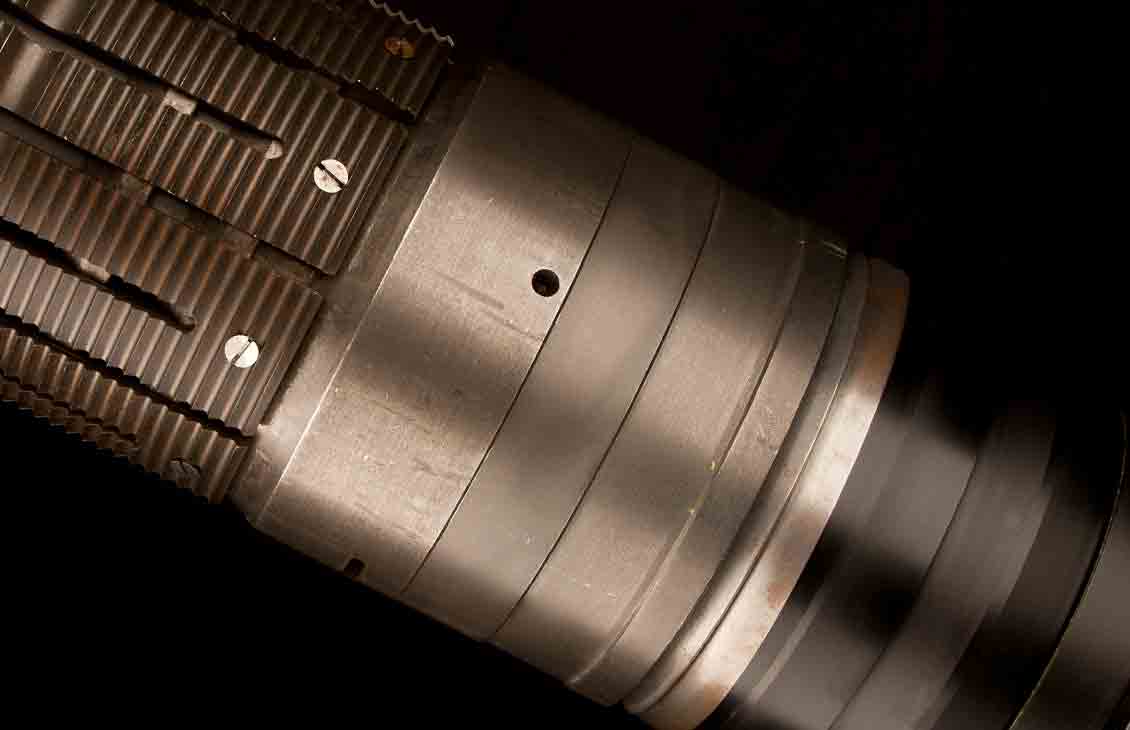

  • QUANTUM MAX HPHT gravel- and frac-pack packer
    QUANTUM MAX
    HPHT gravel- and frac-pack packer

    Maximize production and improve performance parameters in HPHT gravel and frac packing, production testing, and drillstem testing. View

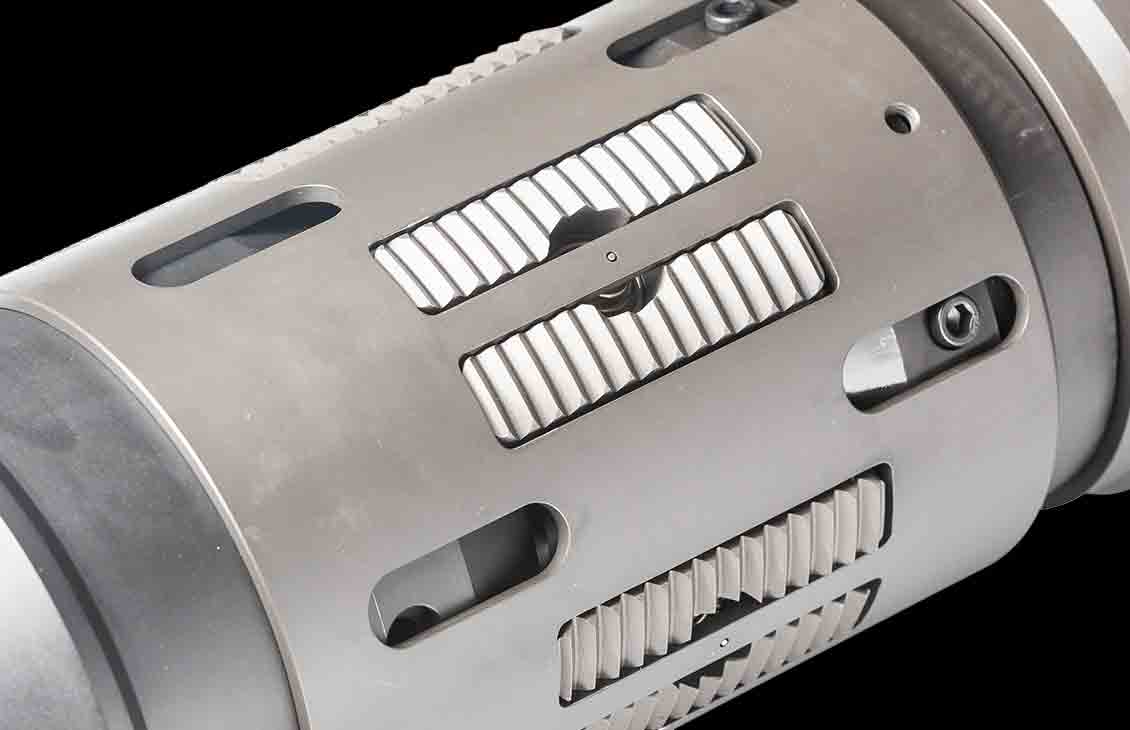

  • QUANTUM MultiPort Packer
    QUANTUM MultiPort
    Gravel-pack multiport packer

    Simplify onsite feed-through and connection of electric and hydraulic conduits for intelligent completions with gravel packs. View

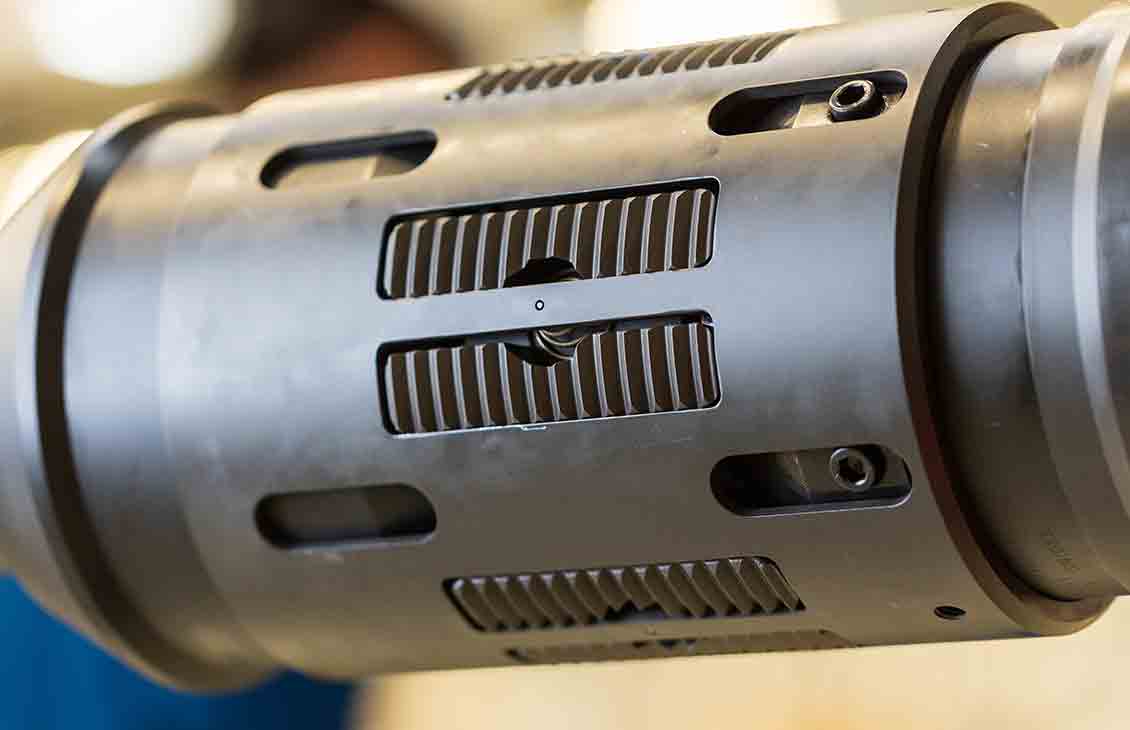

  • QUANTUM HS retrievable hydraulic-set sealbore production packer
    QUANTUM HS
    Retrievable hydraulic-set sealbore production packer

    Streamline running and setting in deviated wells with single-trip gravel-pack completions, and use any QUANTUM packer accessories. View

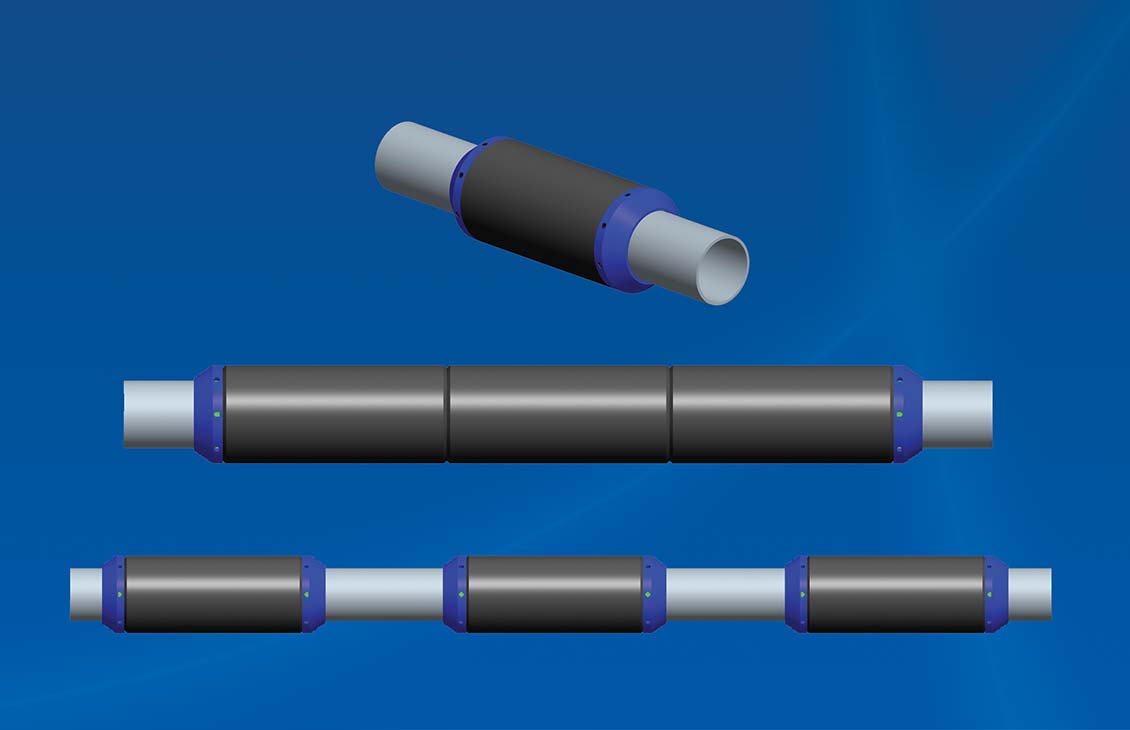

  • ResPack Slip swellable slip-on packer
    ResPack Slip
    Swellable slip-on packer

    Facilitate packer installation and inventory for ICD completions, gravel-packing, and acidizing in openhole and cased hole wells. View

  • ResPack swellable bonded-to-pipe packer
    ResPack
    Swellable bonded-to-pipe packer

    Optimize multistage fracturing and ICD or sand screen completions with elements that seal the annulus even in high-pressure conditions. View

Sand Control Service Tools

Minimize NPT and risk while running and retrieving downhole sand control equipment—from high-pressure conventional wells to deepwater applications.

Service Tool Applications
Product Openhole Sand Control Cased Hole Sand Contro
10K HPHT openhole gravel-pack antiswab service tool (ASST)
is rated to 10,000 psi and enables wellbore stability before gravel placement and filtercake cleanup after gravel placement.
Y
QUANTUM antiswab openhole service tool
is rated to 6,000 psi and enables wellbore stability before gravel placement and filtercake cleanup after gravel placement.
Y
QUANTUM MAX service tool
enables high-performance gravel and frac packing in HPHT sandface completions.
Y
MZ-Xpress service tool
is used with the MZ-Xpress service for cased hole single-trip multizone gravel and frac packing.
Y

Accessories

Optimize sand control completions with efficient and versatile seals, plugs, safety release tools, and miscellaneous accessories.

Miscellaneous Sand Control Accessory Applications
 Accessory Openhole Sand Control Cased Hole Sand Control
Pressure-operated isolation tool
prevents premature packer setting caused by gun shock, underbalance pressure surges, and well control operations.
   Y
Ported crossover bodies
divert the pumped sand control treatment from the workstring into the casing-screen annulus below the QUANTUM gravel-pack packer.
 Y  Y
Tubing-deployed isolation plug
is a reliable mechanical fluid loss prevention device that is used to completely isolate a specific interval; it withstands higher differential pressures than flapper valves.
 Y  Y
QUANTUM tubing swivel
enables rotation of the gravel-pack assembly without transferring torque to the washpipe or seal units mounted below.
 Y  Y
Fullbore washpipe gauge carrier
enables delivery of data from a gravel- or frac-pack completion while leaving the washpipe unobstructed.
 Y  Y
QUANTUM packer type II setting tool
sets QUANTUM series retrievable and permanent packers.
 Y  Y
QUANTUM packer type III setting tool
sets QUANTUM series retrievable and permanent sealbore packers.
 Y  Y
QUANTUM retrieving tool
retrieves the QUANTUM packer and assembly in one trip without rotation.
 Y  Y
QUANTUM releasing tool
allows simple, straight pickup release of QUANTUM packers.
 Y  Y
Bottom assemblies for QL-series packers
provide a fit-for-purpose bottom on the packer (e.g., to enable connection of the bottomhole assembly to the packer)
 Y  Y
Model E hydraulic setting tool
is used to run and set packers, bridge plugs, and cement retainers on a workstring, production tubing, or coiled tubing.
 Y  Y
QUANTUM wireline adapter kit
enables QUANTUM series retrievable sealbore packers and QL series permanent packers to be set by wireline.
   Y
Sand Control Seal Applications
 Accessory Openhole Sand Control Cased Hole Sand Control
Polished bore receptacle (PBR), O-ring seal sub, and stinger
direct fluid flow to assist with effective fluid or gravel movement by providing pressure and fluid sealing at selected points in the completion assembly.
 Y  Y
QUANTUM anchor latch assembly
provides a positive surface indication that the seal assembly is correctly positioned in the polished bore.
 Y  Y
QUANTUM shear-type anchor latch
provides a positive surface indication that the seal assembly is correctly positioned in the PBR and eliminates production seal movement during normal changes in pressure and temperature.
 Y  Y
QUANTUM snap latch assembly
provides a surface indication that the seal assembly is correctly positioned in the polished bore.
 Y  Y
QUANTUM no-go locator
provides a surface indication that the seal assembly is correctly positioned in the polished bore.
 Y  Y
Sealing systems
provide an efficient and effective seal between the packer and the production tubing.
 Y  Y
QUANTUM standard seal units
provide an efficient and effective seal between the QUANTUM gravel-pack packer and the production tubing.
 Y  Y
Premium seal units
are HPHT seal units used as completion seals between packers, packer and tubing, and PBR and tubing.
 Y  Y
QUANTUM guide shoe
is used to ensure proper seal assembly entry into a production packer or a PBR and to assist as a wireline reentry guide.
 Y  Y
QUANTUM self-aligning guide shoe
is used to ensure proper seal assembly entry into a production packer or a PBR in wells where tubing rotation is to be avoided.
 Y  Y
QUANTUM lower-zone multiseal assembly
seals in the packer bore and isolates the gravel-pack ports of the lower QUANTUM packer in a multizone gravel-pack well.
 Y  Y
QUANTUM long-string seal assembly
is part of a seal system designed for multizone wells.
 Y  Y
QUANTUM one-trip seal latch
is recommended for applications where extreme dynamic seal movement is anticipated.
 Y  Y
QUANTUM sealbore extension
is used in completions where a sealbore packer is used as a production packer and tubing movement is expected.
 Y  Y
Millout extensions
provide a larger ID below QUANTUM and QL series packers to protect floating seals and to accept the packer-retrieving sub of a milling tool.
 Y  Y
Sand Control Plug Applications
Accessory Openhole Sand Control Cased Hole Sand Control
QUANTUM BA packer plug
converts the QUANTUM packer to a temporary bridge plug, allowing operations above the packer without affecting the zone below the packer.
 Y  Y
QUANTUM BA packer plug pulling tool
retrieves the QUANTUM BA packer plug when used in the QUANTUM line of sealbore packers.
 Y  Y
QUANTUM short-catch packer plug with mandrel saver
converts the QUANTUM packer to a temporary bridge plug, allowing operations above the packer without affecting the zone below the packer.
 Y  Y
QUANTUM short-catch packer plug running and pulling tool
sets and retrieves the QUANTUM short-catch packer plug when used with QUANTUM sealbore packers.
 Y  Y
 Sand Control Safety Release Applications
 Accessory Openhole Sand Control Cased Hole Sand Control
QUANTUM long-stroke safety shear sub
provides a weak point in the tubing string so that the completion assembly can be retrieved if required, even if the packer or seal assembly does not release.
 Y  Y
Tubing tension safety joint
is a straight pickup, shear-release tool that provides a means of separating the production tubing above or below a packer, if necessary
 Y  Y
Type A rotation-release safety joint
provides tensile strength equal to the tubing and requires right-hand rotation to release.
 Y  Y
Polished bore receptacle.



Use isolation valves to eliminate the need for potentially damaging fluid loss control materials.
