Recovery

Wireline-retrievable subsurface safety valve

Overview

General service, self-equalizing, rod-piston flapper valve

The Recovery™ wireline-retrievable subsurface safety valve is a value-driven, reliable choice. These hydraulically actuated, tubing-pressure sensitive, standard spring valves are suitable for a range of subsurface environments, including both production and injection wells and various wellbore fluids—oil, gas, and water. The rod-piston actuator uses premium dynamic seals and is combined with the rugged flapper-and-seat closure mechanism to provide long-term reliability.

The versatile design is available in a range of sizes and accepts any manufacturer’s lock assembly. The Recovery valve can be used as the primary safety valve by placing it into a hydraulic communication nipple. Alternatively, it can be used as a contingency measure by placing it in a locked-open, tubing-mounted safety valve that is no longer operable.

Working pressures up to 10,000 psi [69 MPa]

Operating temperatures 40 to 300 degF [4 to 149 degC]

Setting depths up to 6,000 ft [1,829 m]

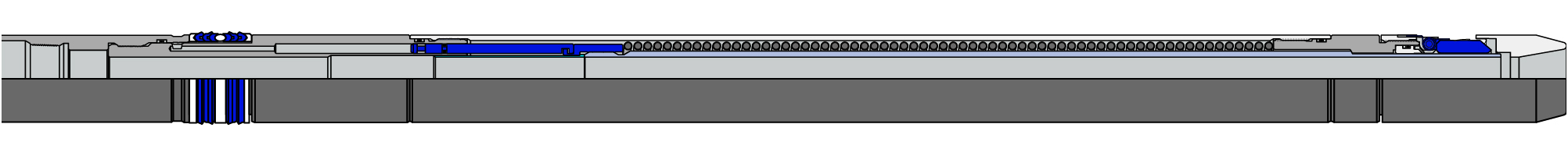

Recovery wireline-retrievable subsurface safety valve.

Applications

Sweet to severely corrosive environments
Oil and gas wells

Benefits

Provides a cost-effective and easy to deploy solution
Enables flapper pressure equalization without compromising reliability
Lowers workover costs by extending the life of the completion

Features

Field-proven INCONEL^® 718 flapper and seat with secondary soft seat
Flapper-mounted, dart-based equalizing system
Rod-piston actuator with premium dynamic seals
Sliding components with optimal geometry and clearance
Validation to API Spec 14A V2

INCONEL is a registered trademark of Special Metals Corporation.

FAQs

How are the valves qualified?

The valves are validated to API Spec 14A, but their performance exceeds the certification requirements.

Flapper leakage: API Spec 14A allows leakage up to 5 ft³/min. The acceptance criterion for Recovery safety valve flapper systems is 150 times more stringent.

Hydraulic actuator integrity: API Spec 14A allows up to 5% drop in applied hydraulic pressure; for 10,000-psi hydraulic pressure, the acceptable leakage is 500 psi. Recovery safety valve actuators allow <1% drop, as confirmed by rigorous tests.

Slam closure: The valve's flapper system has been successfully slam tested at high flow rates that exceed the Annex K requirements of API Spec 14A.
