StreamLine

Polymer-locked wireline cable

Download PDF Contact Us Related Resources

Overview

Engineered for efficiency in all environments

StreamLine™ polymer-locked wireline cable can be deployed in all environments to effectively address the challenges posed by the use of conventional wireline cable in intervention, workover, and completion operations. Advanced features and torque-balanced design help mitigate maintenance trips associated with grease injection, armor stranding, birdcaging, corrosion, and twisting. The result is a significant efficiency gain with reduced operational and well control risks, maintenance-related logistics, and costs.

Applications

Pumpdown perforation in unconventional wells
Extended-length gun system perforations
Combined wireline and slickline operations
Environmentally responsible operations
Limited-footprint wellsites

Benefits

Increases overall efficiency
Minimizes operational risk in all environments
Reduces maintenance and cost of operation
Reduces cable friction to improve well access with increased overpull margins
Delivers faster running speed by reducing friction and eliminating cable seasoning

Features

Integrated cable and dual-packoff system

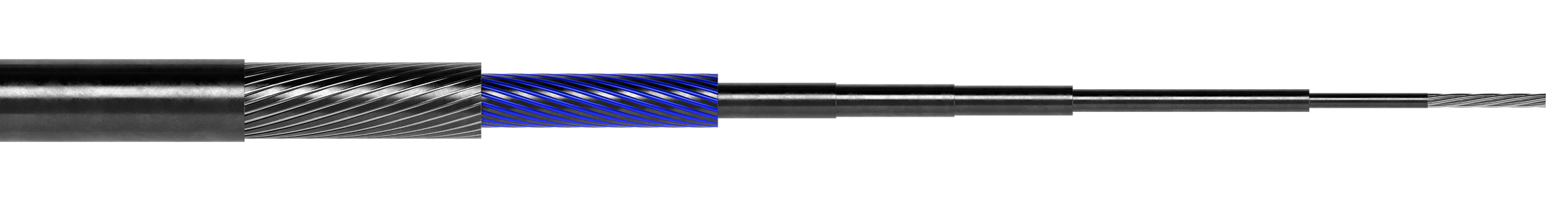

Polymer-locked smooth jacket
Shock- and flame-resistant design
Elimination of grease injection, armor stranding, birdcage formation, and armor corrosion
Reduced maintenance requirements

How It Works

StreamLine cable is provided as a system with integrated dual packoff and a specially designed sealed torpedo to ensure complete isolation from well fluids such as gas entering the cable. Reduced friction from the cable’s smooth polymer jacket makes StreamLine cable the optimal conveyance for high-efficiency perforating operations. In pumpdown operations in North American unconventional reservoirs, using StreamLine cable has increased the stage yield by 15%.

Tech Specs

Specifications	StreamLINE
Safe working load (SWL)* TDL	6000 lbf [26.7 kN]
Safe working load (SWL)* CMTD	5000 lbf [22.2 kN]
Cable nominal OD	0.332 in [8.433 mm]
Diameter variation	0.003 in [0.076 mm]
DC resistance at 68 degF [20 degC]	AWG 16 (center): 4.3 ohm/1000 ft [14.1 ohm/km], Armor resistance: 3.1 ohm/1000 ft [10.2 ohm/km]
Voltage rating (conductor)	1100 V DC [778 V rms]
Current rating (conductor)	2.6 A
Insulation resistance (500 V)	15000 megohm.1000 ft [4572 megohm.km]
Calculated weight in air	155.55 lbm/1000 ft [231 kg/km]
Calculated weight in fresh water	118.02 lbm/1000 ft [176 kg/km]
Temp. rating, 24-h	350 degF [177 degC]
Temp. rating, min.	-40 degF [-40 degC]
Temp. rating, min. storage	-60 degF [-40 degC]
