EVO-Con

Adaptable collet connector

Dark texture background

The EVO-Con adaptable collet connector provides versatility and capacity. With the ability to work on any wellhead, the EVO-Con connector’s collet fingers can be changed out, enabling the use of different connector brands and sizes, including 27- and 30-in H4.

It has the strength of the DWHC connector with a shorter swallow. The EVO-Con connector also features a simple design with only one hydraulic circuit which uses less hydraulic fluid for locking and unlocking.

Specifications
Preload
3,250,000 lbm
Height
63.06 in [1,601 mm]
Max. subsea wellhead OD
30 in [762 mm]
Max. connector OD
72 in [1,828 mm]
Adapter kit
H4 wellheads and various connection sizes

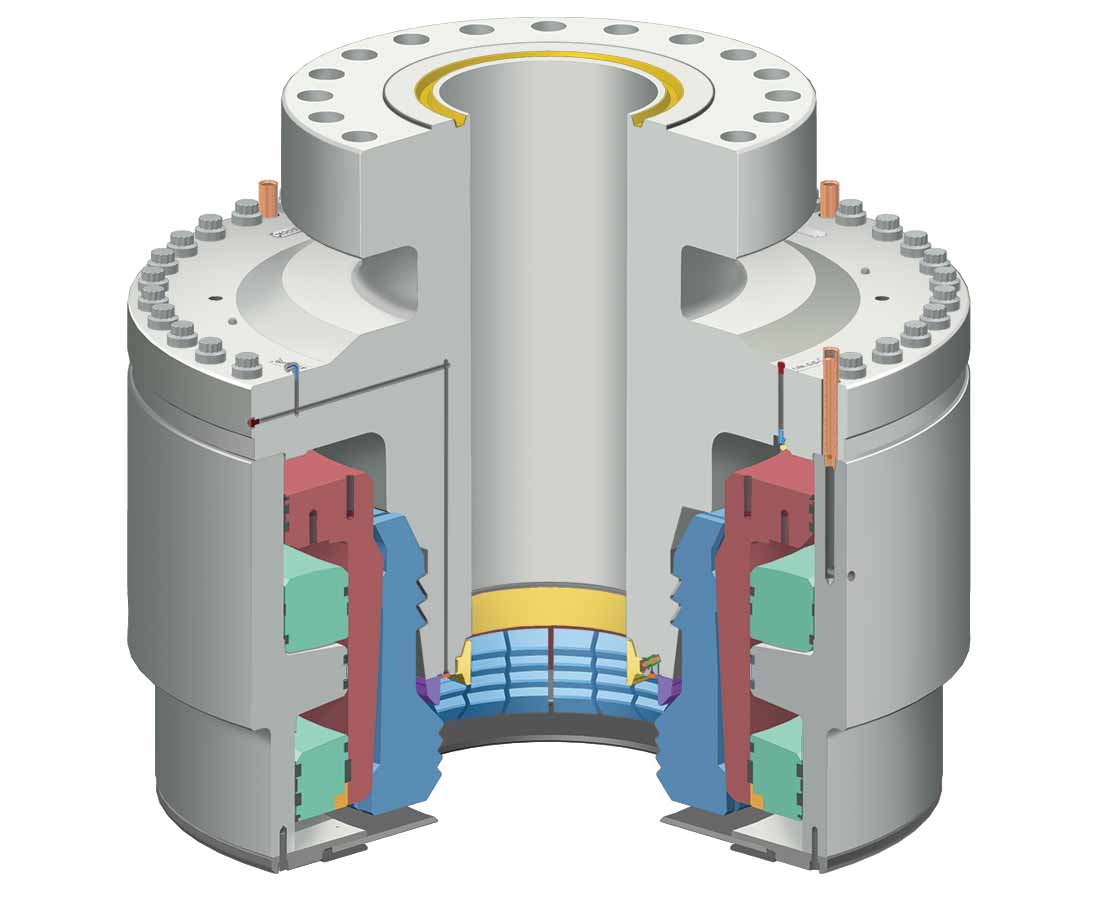

EVO-Con Adaptable Collet Connector 3D Model
