Product Sheet Iron Roughnecks
Cost-effective, compact designs with user-intuitive control systems.
Iron Roughnecks
Smart technology for makeup and breakout of drill pipe and drill collars
Cameron provides cost-effective, modern iron roughnecks in a compact format. Featuring an advanced control system, our iron roughnecks keep safety in mind and are a sensible choice for today’s demanding drilling needs.
- Pipe range from 2 7/8 to 10 in [73 to 254 mm] for enhanced versatility
- Triple-grip torque wrench that delivers 166,000 ft.lbf of torque
- High-performance spinner that can deliver 3,500 ft.lbf of torque, improving efficiency during challenging pipe connections
- Smart technology for makeup and breakout of drill pipe and drill collars

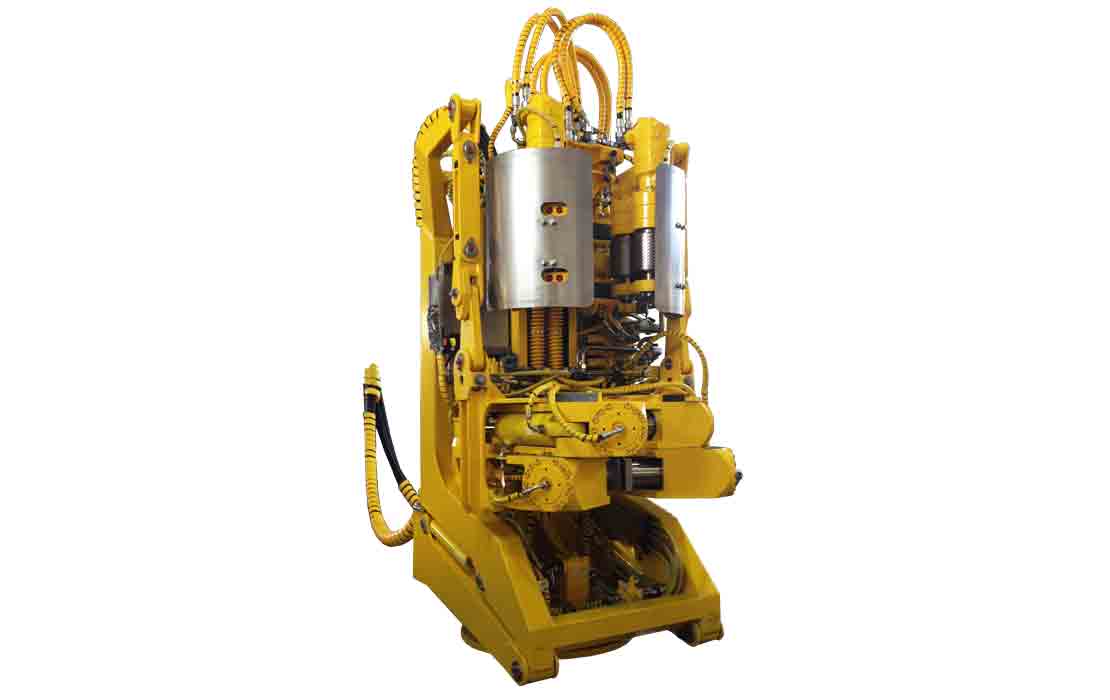

T-P iron roughneck
- Light weight
- Torque wrench in an articulated arm that allows travel of torque wrench and spinner assembly from parked position to well center
- Elevation system that ensures handling of a wide range of stickups with ease and precision Hydraulic Roughneck
T-P iron roughneck

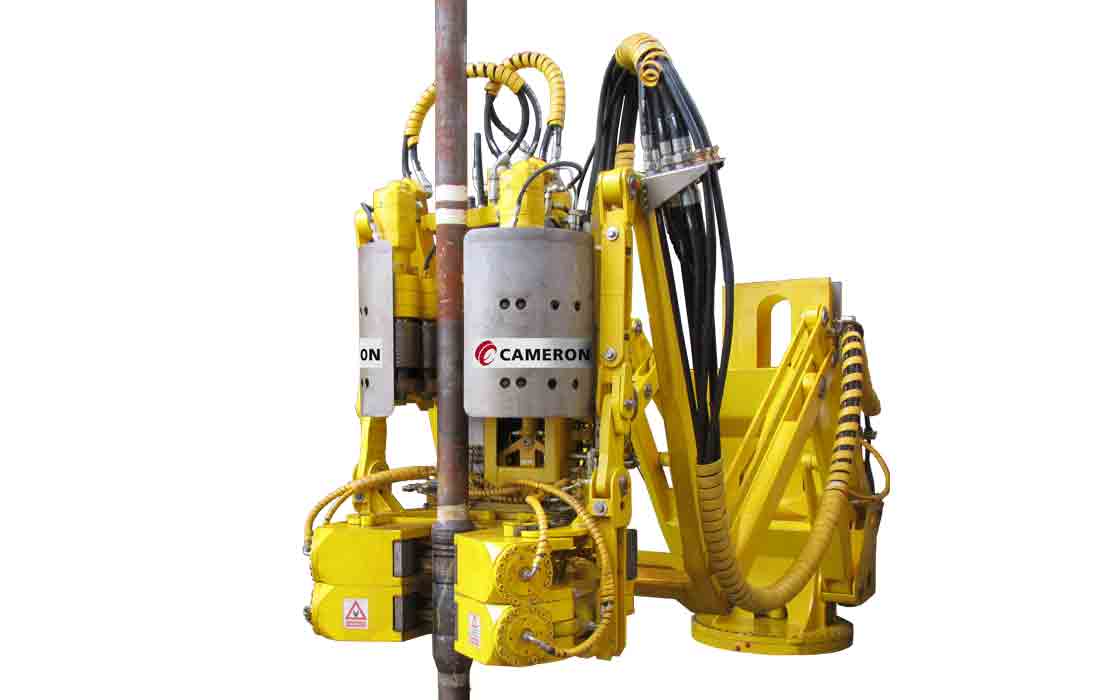

T-P-L iron roughneck
T-P-L iron roughneck
- Maximum reach of 16 ft [4.90 m] for enhanced drill floor flexibility
- Long-reach articulated arm and slewing system
- Torque wrench and spinner assembly that can travel from parked position to well center or other positions such as the mousehole
- Elevation system that enables streamlined and accurate handling of a wide range of stickups

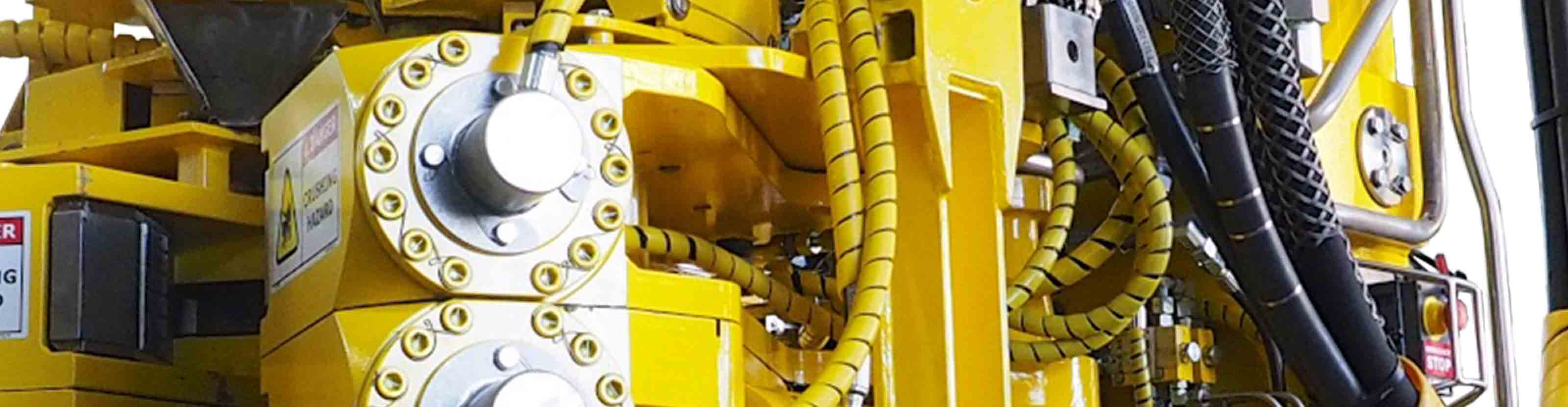

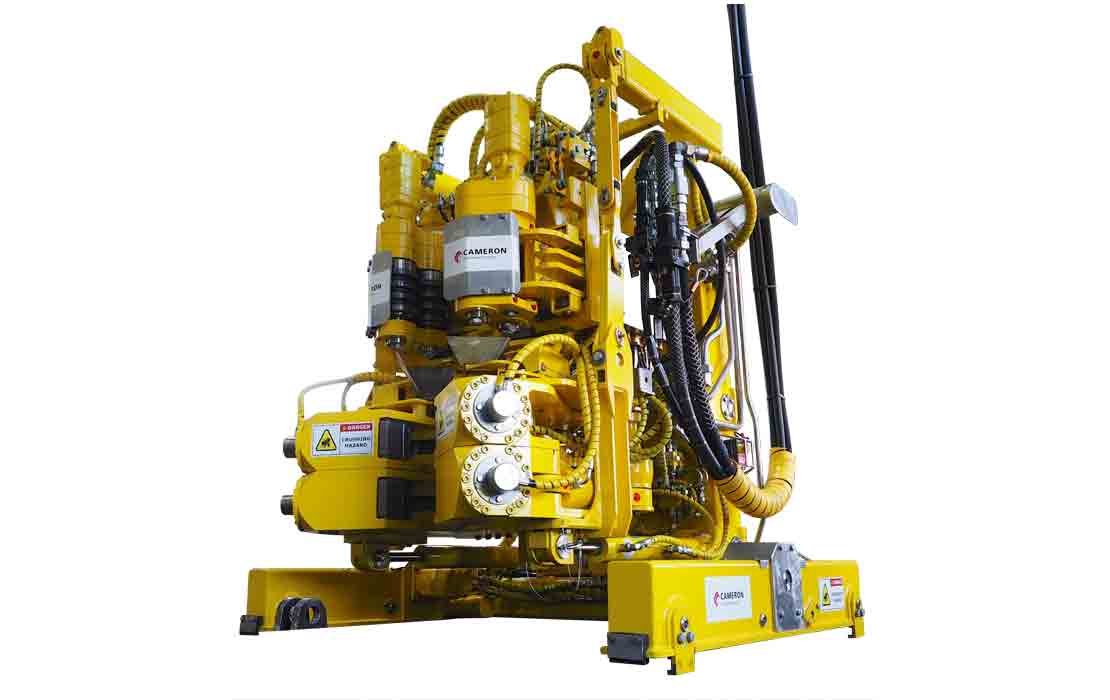

M-R iron roughneck
- Modular, rail-mounted design that improves drill floor efficiency and tool changeout safety
- Efficient and precise movement from parked position to well center
- Backup torque arrestor functionality—81,000 ft.lbf [110,000 N.m] transmitted to the floor
- Backup torque readings
- Enhanced bit makeup and breakout functionality
- Optional Cameron casing tongs and casing backup tongs
M-R iron roughneck
