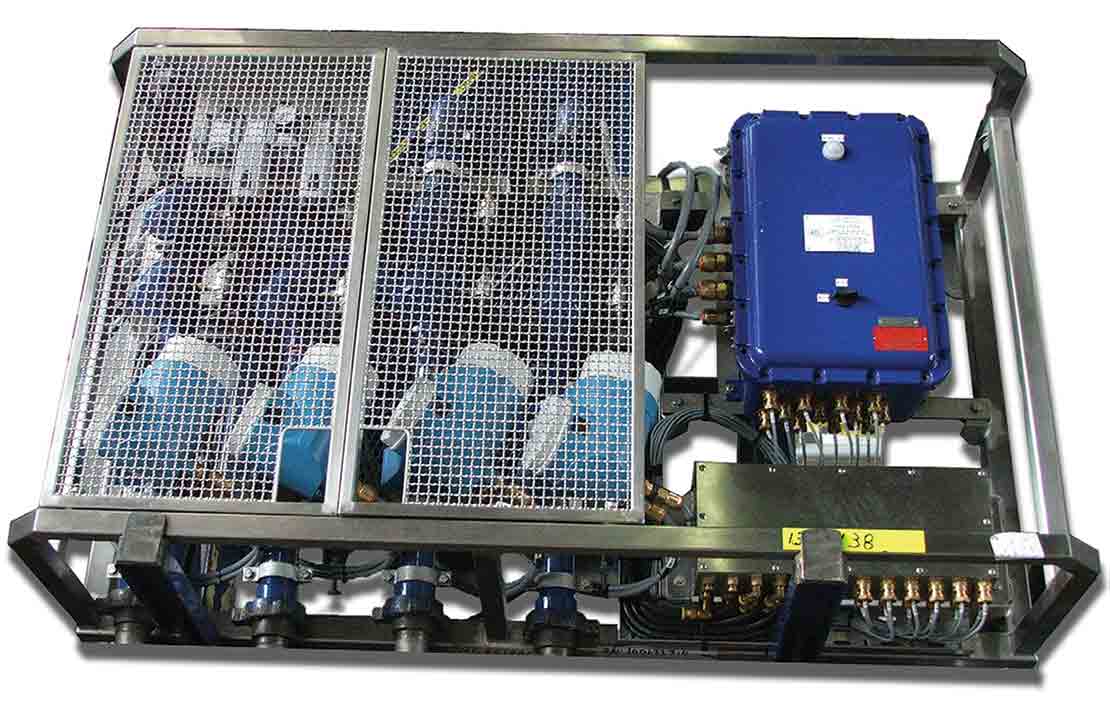

The CMP-751 computerized liquid additive system meters liquid additives for cement slurry blending. Four different additives can be metered simultaneously or in sequence with high accuracy.

The system includes a metering control module and electromagnetic flowmeters with control valves. The flowmeters measure the additive flow rates and preset amounts are measured into the displacement tank by remote control.

In combination with a proportioning tank, the CMP-751 system provides all the advantages of process control. A manual override is available as backup.

The system is used with cementing units equipped with the advanced cement control (ACC) data acquisition and monitoring system.

Benefits

• Meters liquid additives for cement slurry blending
• Provides all the advantages of process control when used in combination with a proportioning tank

Features

• Facility to preprogram up to four different additives
• Metering control module and four electromagnetic flowmeters with control valves
• Four pneumatic control valves and four pneumatic restriction valves
• Control cabinet
• Solenoid valve box
• Manual override available as backup
• Certified for use in Zone 2 hazardous areas
