Peak Family large-bore gauge hanger
High load capacity for high-flow-rate wells
Overview
High load capacity for tool hanging and anchoring

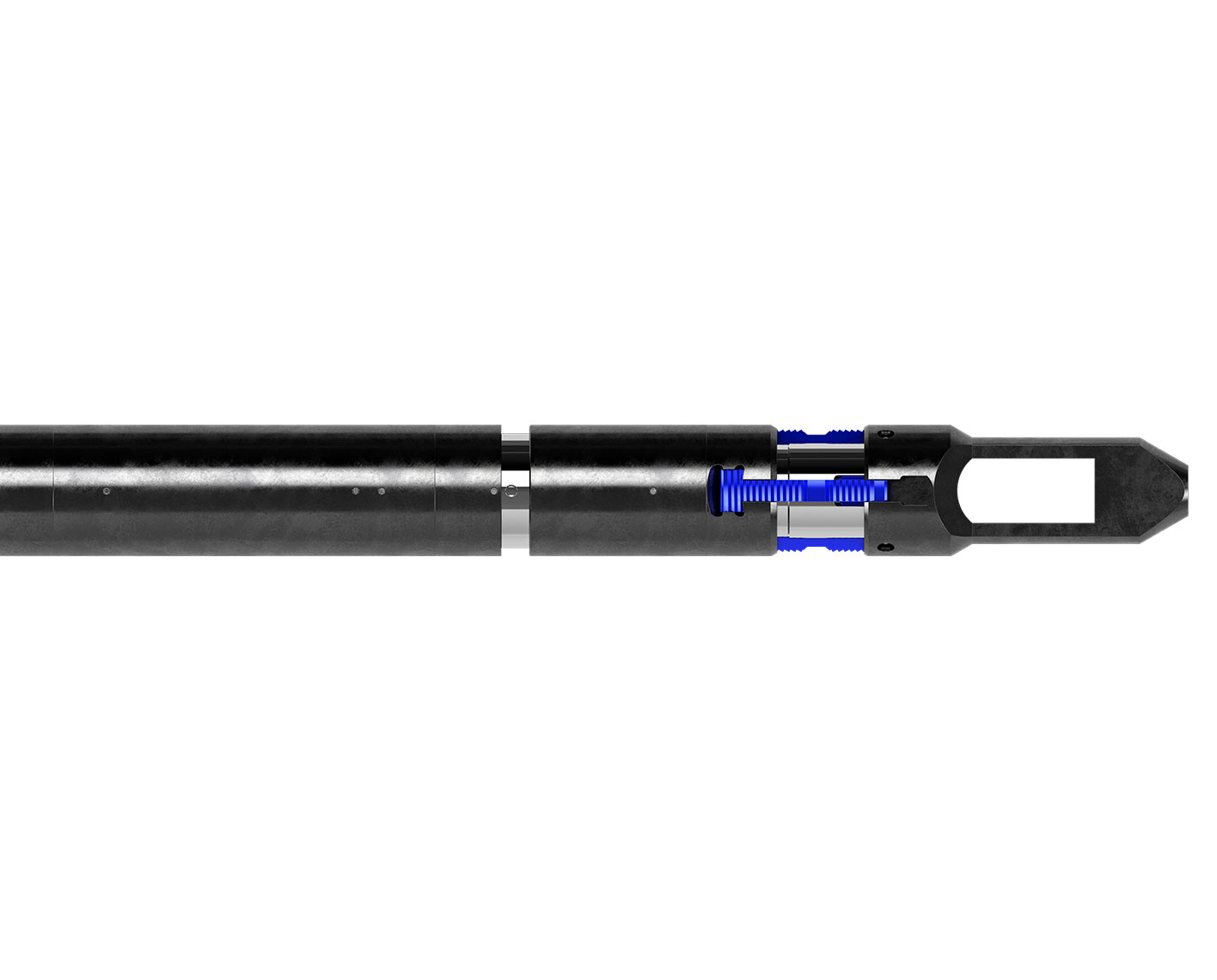

The large-bore gauge hanger of the Peak Family™ flow control and well intervention tools can be used to carry data acquisition devices or set as an anchor to provide a platform for equipment that requires suspension in the wellbore.
It can be set 100% mechanically using the slickline-deployed running tool of the SIM™ sealing integrity management system or any available industry-standard deployment methods. The large-bore gauge hanger has an extremely high load capacity and is ideal for use in high-flow-rate wells or high weight stack-up applications.
Applications
- Gauge hanger for pinpointing real-time and memory data acquisition
- Anchoring device to provide a platform for or suspension of stack-up perforating guns, swellable packers, sampling gauges, and other equipment
- Barrier to prevent unwanted movement of abandoned equipment in flowing wells
Benefits
Large through bore
Increases flow rate, enabling better-quality data recordings during production and injection
Optimized gauge placement
Provides high-quality data acquisition during well testing, production monitoring, and more
Flexible performance
Carries data acquisition devices or anchors to suspend downhole equipment
Tubing stop
Prevents unwanted movement of abandoned equipment in flowing wells
Features
- Compact design for use in height-restricted rig-ups
- 100% mechanical setting anywhere in the tubing
- Recoverable with the GS pulling tool
- Lower connection options available to suit customer requirements
The Peak Family large-bore gauge hanger can be set 100% mechanically on slickline using the SIM running tool.
