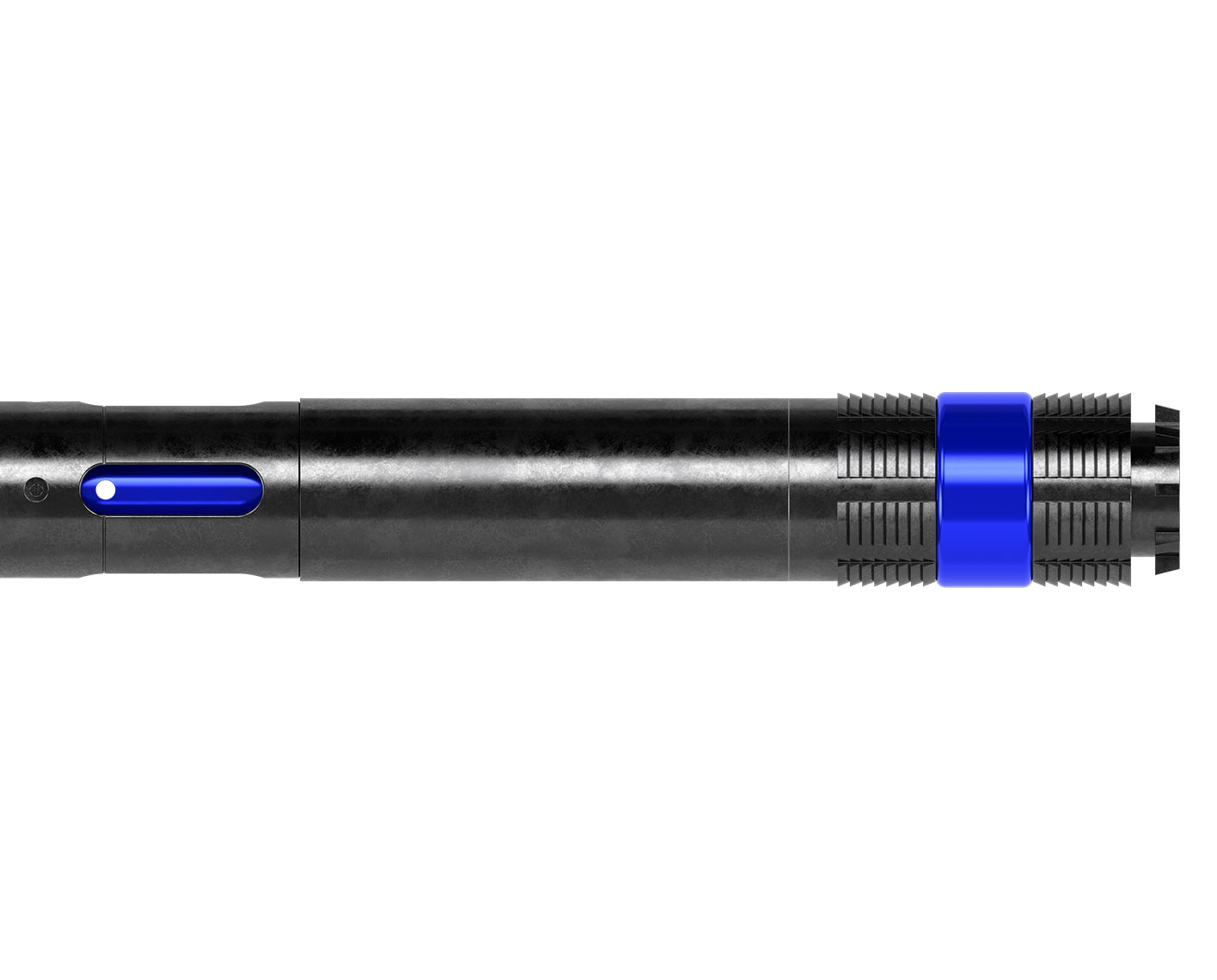

ReSOLVE Family setting tool

Large confirmed force and variable setting speed

Download PDF Contact Us Related Resources

Overview

Reliable, low-risk alternative to explosives

The setting tool of the The ReSOLVE Family™ instrumented wireline intervention service is deployed using the standard 3 1/8-in ReSOLVE™ instrumented wireline intervention service and the 2 1/8-in ReSOLVE iX™ intelligent extreme wireline intervention service for high performance in hostile environments, including high-pressure, deviated, restricted access, and sour well conditions.

The nonexplosive setting tool is hydraulically powered, providing a large force of up to 78,000 lbf [347,000 N] for setting plugs and packers. Its 20,000 psi [138 MPa] rating extends the operating envelope of setting tools to high-pressure operations.

With real-time confirmation reporting of the setting force applied and a variable setting speed, the setting tool is a reliable, low-risk alternative to the conventional use of explosives to set plugs and packers.

Not using explosives provides a significant advantage for operations in locations where explosives security and safety concerns can complicate logistics and cause delays. In addition, the setting tool can be performance tested at the surface before deployment, and radio silence is not necessary during operations.

ReSOLVE setting tool is hydraulically powered, delivering a large force of up to 78,000 lbf for setting plugs and packers.

Applications

Nonexplosive setting of:

Bridge and tubing plugs
Packers
Casing patches
Cement retainers

Benefits

Eliminate explosives

Provides a reliable, low-risk alternative to explosives, improving safety and simplifying logistics.

Confirm in real time

Delivers real-time progress monitoring and control of setting force and setting speed.

Operate in hostile conditions

Meets NACE MR0175 standards for H₂S and CO₂ resistance.

Features

Rated to 350 degF [177 degC]

Rated to 20,000 psi [138 MPa]

Provides large force up to 78,000 lbf [347,000 N]

These broken 55,000-lbf tension studs are from reliability testing of ReSOLVE Family services during which a single setting tool performed hundreds of simulated plug sets.

Tech Specs

Specifications

	ReSOLVE iX Setting Tool	ReSOLVE Setting Tool
Outputs	Head tension CCL Optional gamma ray Wellbore pressure Wellbore temperature Head voltage DC current Setting force	Head tension CCL Optional gamma ray Wellbore pressure Wellbore temperature Head voltage DC current Setting force
Mud type and weight	All	All
Pressure rating	20,000 psi [138 MPa]	20,000 psi [138 MPa]. High-temperature version: 30,000 psi [207 MPa]
Temperature range	32 to 350 degF [0 to 177 degC]	32 to 302 degF [0 to 150 degC]
Setting range	DSET-2: 10.24 in [260 mm], DSET-3: 10.43 in [264.9 mm]	11.4 in [289.6 mm]
Setting force	DSET-2: 33,000 lbf [146,791 N], DSET-3: 55,000 lbf [244,652 N]	78,000 lbf [346,960 N]
Restriction, min.	4 in [10.16 mm]	4 in [10.16 mm]
Tool OD	3 7/8 in [98.43 mm]	3 5/8 in [92.08 mm]
Length, min.*	21.2 ft [6.47 m]	19.8 ft [6.04 m]
Weight*	182 lbm [82.6 kg]	451 lbm [204.6 kg]
Tension	25,000 lbf [111,205 N]	60,000 lbf [266,890 N]
Compression	10,000 lbf [44,480 N]	20,000 lbf [88,960 N]
Special applications	NACE MR0175 compliant for H2S and CO2 resistance	NACE MR0175 compliant for H2S and CO2 resistance
