Single-Trip, Integrated Rathole Elimination BHA Drills Wells 7.5 Days Ahead of AFE, Offshore Sakhalin

Published: 06/16/2017

Case Study

Single-Trip, Integrated Rathole Elimination BHA Drills Wells 7.5 Days Ahead of AFE, Offshore Sakhalin

Published: 06/16/2017

Optimize hole enlargement while drilling

Sakhalin Energy Investment Company Ltd. (SEIC) was planning its first openhole gravelpack completions program for sand control offshore Sakhalin. Because the sea often freezes during the winter, SEIC needed to drill and complete two reservoir sections during the short summer months—before supply vessels could no longer operate.

SEIC partnered with Schlumberger for a detailed drilling and contingency program. After saving more than 20 hours on the first well, SEIC wanted to reduce time and costs while drilling the 8 1/2-in × 10 1/4-in section of the second well. In addition to greater operational efficiency, SEIC required a 45° inclination with minimal tortuosity, accurate LWD measurements not more than 49 ft behind the bit, and a solids-free environment for openhole gravel-pack operations.

Graph - The Rhino RHE system is able to eliminate cleanout trips, drill faster, and reduce costs compared with wells drilled using conventional BHAs.

The Rhino RHE system is able to eliminate cleanout trips, drill faster, and reduce costs compared with wells drilled using conventional BHAs.

Customize a first-of-its-kind BHA

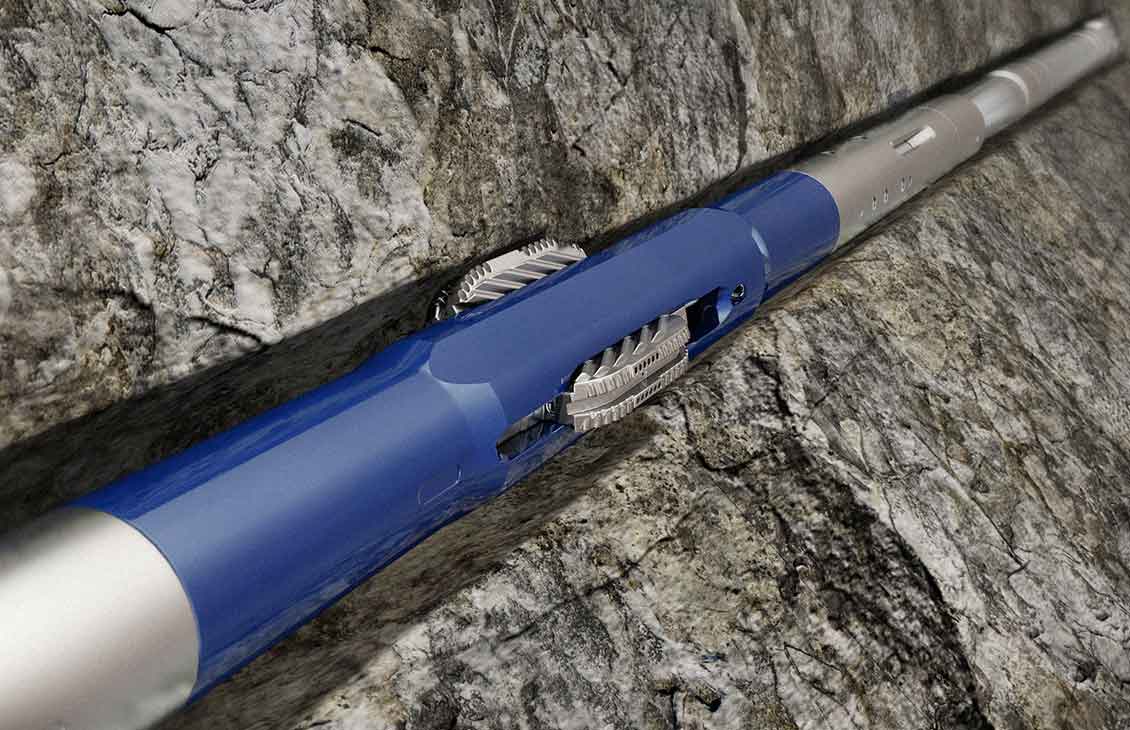

Schlumberger and SEIC performed a joint peer review of the sequence of operations, including the fluids program, which revealed that to maintain a solids-free environment, both reamers had to be closed after underreaming. To address this, SEIC agreed to deploy Rhino XS2 full-cycle expandable reamer, a double-ball drop system, so a second ball could be dropped to close the reamer after underreaming-while-drilling operations. This would prevent any additional cuttings generation from an open reamer while backreaming the enlarged hole, for risk-free backreaming inside the 9 5/8-in liner and 13 3/8-in casing.

Using the IDEAS integrated dynamic design and analysis platform, Schlumberger drilling experts compared more than 24 BHAs before customizing a design that would minimize shock, vibrations, and differential sticking while drilling through alternating lithology. The final BHA successfully addressed all the risks identified by the drilling, subsurface, and completions teams—enabling multiple operational steps to be performed with a single BHA. The engineered drillstring included

the Rhino XS2 reamer run above the MLWD tools
PowerDrive X6 675 RSS
near-bit Rhino XC on-demand hydraulically actuated reamer
MDi616 PDC drill bit from Smith Bits, a Schlumberger company, to match the reamer cutters.

This marked the world’s first rathole elimination job to use PowerDrive RSS with the Rhino XS2 reamer. The push-the-bit PowerDrive X6 675 RSS provided precise directional control through its closed-loop, inclination-hold feature, enabling SEIC to maintain a 45° inclination with no additional corrections.

Graphic - The dual-reamer BHA enabled SEIC to drill and enlarge the wellbore while reducing rathole length by 83%—eliminating the need for a dedicated cleanout run.

The dual-reamer BHA enabled SEIC to drill and enlarge the wellbore while reducing rathole length by 83%—eliminating the need for a dedicated cleanout run.

Once the BHA reached target depth, Schlumberger activated the lower Rhino XC reamer, reducing the rathole length from 138 ft to just 23 ft. Throughout drilling operations, EcoScope multifunction logging-while-drilling service and TeleScope high-speed telemetry-while-drilling service provided accurate, real-time MLWD data. With a full suite of formation evaluation measurements in one collar, SEIC was able to characterize the formation, enhance directional control, verify underreaming, and assist completions by determining the volume of proppant required.

Eliminated cleanout run, delivered well 7.5 days ahead of AFE

Applying lessons learned from the first well, Schlumberger and SEIC successfully used the dual-reamer BHA configuration to drill and ream the challenging 469-ft interval of the second well at an average ROP of 60 ft/h. SEIC enlarged the hole from 8 1/2 to 10 1/4 in one run, eliminating the need for a separate, time-consuming rathole cleanout run. The integrated drilling system saved SEIC a total of 60 hours, delivering the two wells 7.5 days ahead of the AFE. These drilling efficiencies reduced operational costs for both wells by more than USD 200,000 and USD 400,000, respectively.

Location

Russia, Europe, Offshore

Details

Challenge: Drill and complete two reservoir sections in a tight time frame due to seasonal constraints.

Solution: Deploy Rhino RHE dual-reamer rathole elimination system with PowerDrive X6 675 rotary steerable system (RSS), high-speed MLWD tools, and a Smith Bits MDi616 PDC drill bit to perform multiple operational steps using a single BHA.

Results:

Delivered two wells 7.5 days ahead of AFE.
Expanded 8 1/2-in × 10 1/4-in hole section in one run for two wells.
Drilled and reamed 522-ft interval of Well 1 at an average ROP of 65.6 ft/h while maintaining a 45° inclination.
Drilled and reamed the 469-ft interval of Well 2 at an average ROP of 60 ft/h.
Reduced 138-ft rathole to just 23 ft, eliminating dedicated rathole cleanout run.
Optimized openhole gravel-pack completions by minimizing solids generation from reamers during backreaming.
Cut operational costs by USD 600,000 on two wells.
