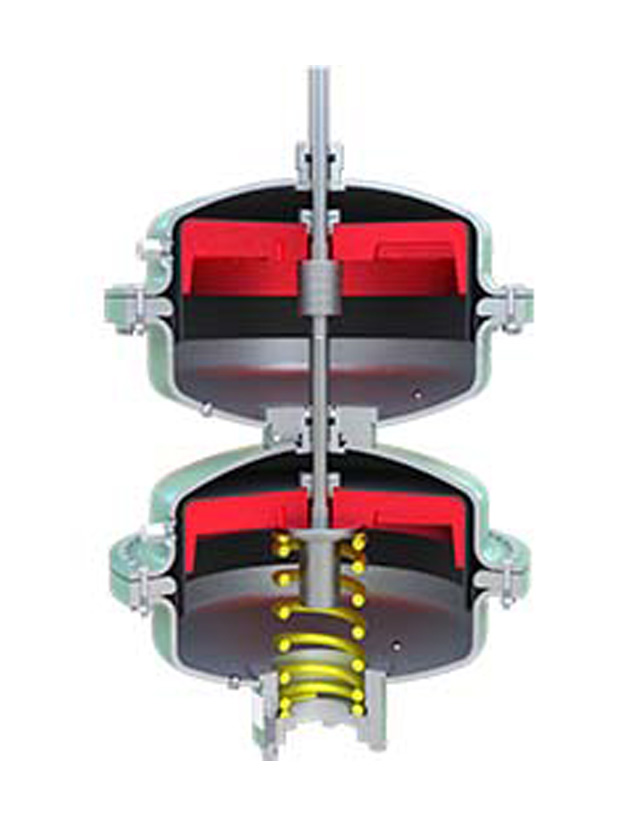

MA2020 Series
Pneumatic diaphragm actuators
Our Saf-T-Gard actuator line includes the MA2020 Series pneumatic diaphragm actuator, which incorporates features from our field-proven products, combined with our industry-leading, innovative technology. Particular attention has been given to safety, ease of maintenance, and cost of manufacturing. The Cameron pneumatic diaphragm actuator series is designed to be used with all manufacturers' gate valves in nominal sizes from 2 to 8 in.
The MA2020 Series increases the area affected by applied control pressure. Its simple design and operating principle make this diaphragm actuator inherently avoids most of the problems commonly associated with piston-type actuators, such as galling misalignment, distortion, and O-ring failures. The Saf-T-Gard actuators are interchangeable with other models in the product line, which reduces the number of spare parts typically required for maintenance.
Advantages
- Stronger actuator mounting arrangement
- Corrosion-resistant materials
- Superior diaphragm design
- Flexible actuator orientation
- Rapid closure
- Heavy-duty compression spring
- Simplified seal replacement
- Actuator interchangeability
- Fixed drift adjustment
- Cameron seal technology
Specifications
- Model: MA2020
- Series: 2020
- Specific application sizing: 1 13/16 through 8 in
- API Specs 6A and 6D
- Standard trim: AA
- PSL 1, 2, 3
- PR-1 and PR-2 Appendix F 2.5
- Standard class: 1, 2
- Maximum operating pressure: 170 psi
- Relief device setting: 170 psi [12 bar] at 130 degF [54 degC]
- Test pressure: 255 psi [18 bar]
- Spring preload at full closed position: 1,000 lbf
- Product weight: 450 lbm [160 kg]
- Operating temperature: 0 to 180 degF [–18 to 66 degC]
| Model | Size, in |
Operating Pressure Calculations |
| 2020-3 | 3 1/16 | (0.008 × WP) + 5 psi |
| 2020-4 | 4 1/16 | (0.009 × WP) + 5 psi |
| 2020-5 | 5 1/8 | (0.015 × WP) + 5 psi |
| 2020-6 | 6 3/8 | TBD |
| 2020-8 | 8 | TBD |
