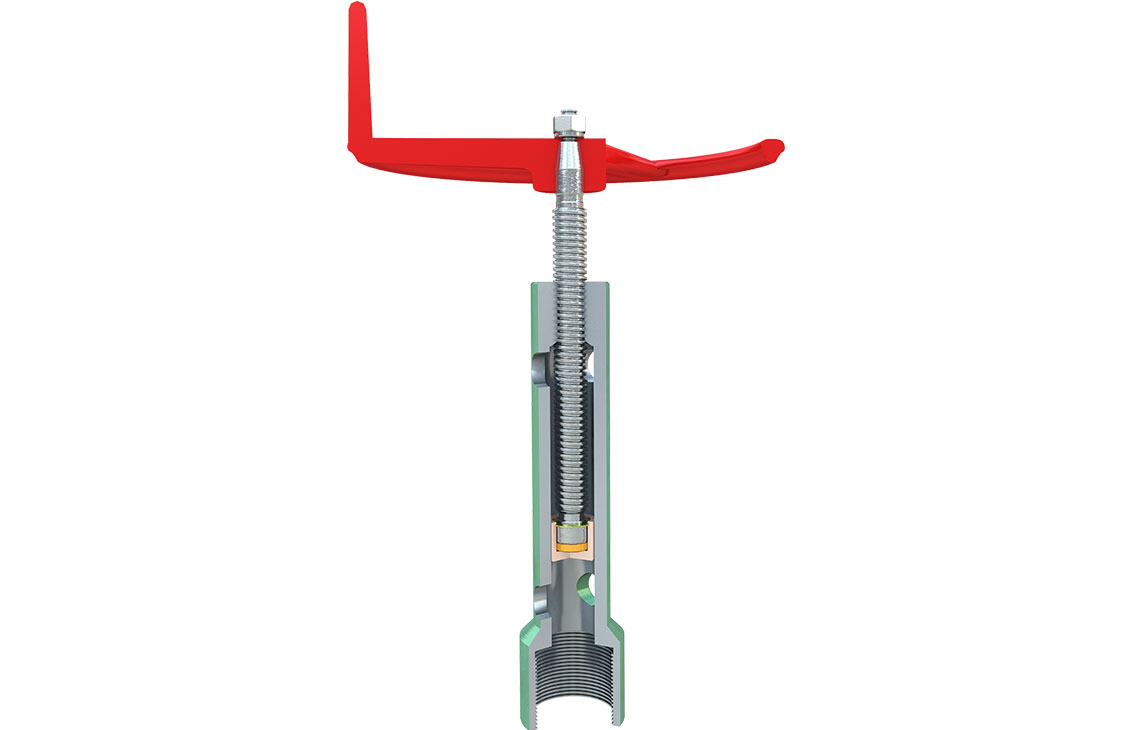

Manual Hold-Open Device with Limit Switches
Manual valve operation in absence of control pressure
Used with actuated gate valves sized 3-in or smaller with internal valve pressure up to 10,000 psi.
Handwheels
Fabricated for reliability

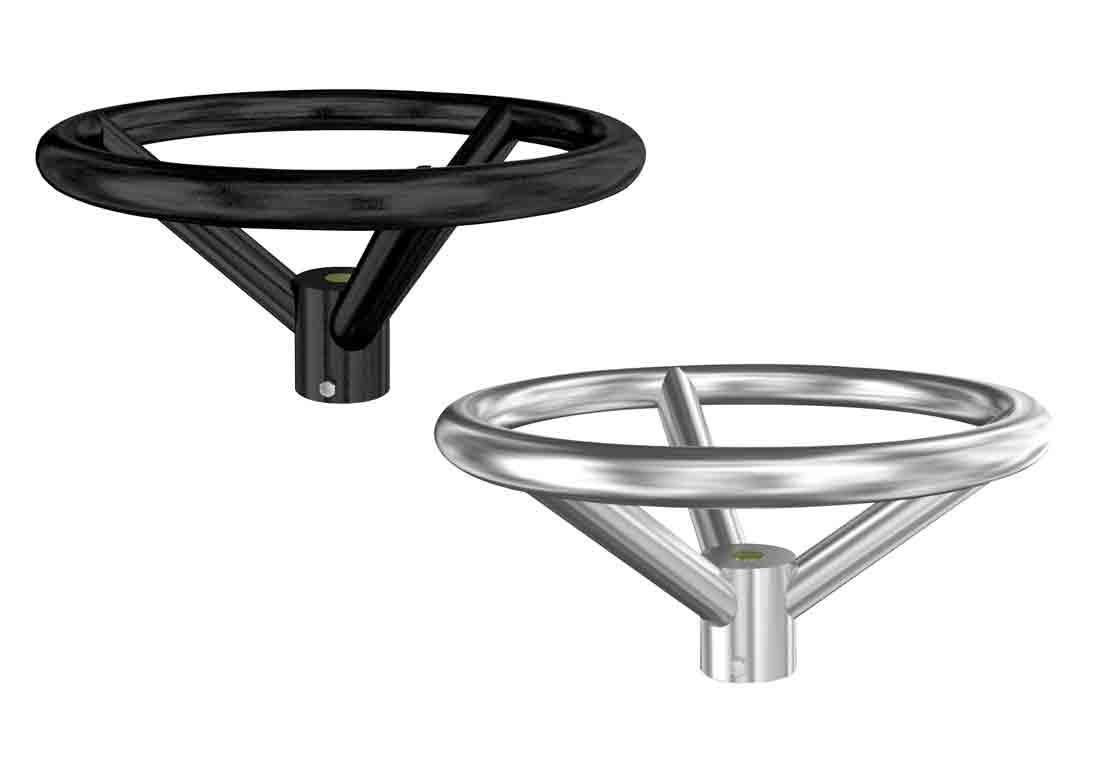

Our handwheels are suited for use with all of our quarter-turn and multiturn operators, manual overrides, and position indicators. Additionally, handwheels can be fitted to products manufactured by others, or, in some applications, be mounted directly to valve stems.
- 6- to 10-in handwheels are recessed, cast ductile iron
- 12- to 48-in handwheels are manufactured from tubing and available in standard recessed and optional flat configurations as well as in stainless steel
- Tubular handwheels are epoxy powder coated
- Cast handwheels are e-coated
- Additional diameters and interface machining available
Materials
Handwheel rims and spokes are constructed of high-quality 1-in-OD tubing. Handwheel hubs are constructed of cold-rolled carbon steel machined to your specifications.
Note: Use of cheater bars voids warranty. Assembling chainwheels to handwheel rims increases the weight and cantilever length and is not recommended. DYNATORQUE chainwheel adapters are recommended whenever using a chainwheel with a DYNATORQUE product gear. DYNATORQUE product recommends the use of our chainwheel adapters in lieu of handwheels in these applications.
| Design |
Model | Hub Recess, in |
0.625-in Bore, 0.281-in Crosshole† |
1.00-in Bore, 0.391-in Crosshole† |
Unit Weight, lbm |
|
HWRR Series |
HWRR12 | 5.63 | 11-694 | 11-321 | 4.5 |
| HWRR14 | 5.50 | 11-860 | 11-318 | 5.5 | |
| HWRR16 | 6.12 | 11-114 | 11-089 | 6.0 | |
| HWRR18 | 6.63 | 11-695 | 11-322 | 6.5 | |
| HWRR20 | 7.25 | 11-171 | 11-850 | 7.0 | |
| HWRR24 | 8.75 | 11-696 | 11-323 | 8.0 | |
| HWRR30 | 10.38 | Not applicable |
11-324 | 10.0 | |
| HWRR36 | 10.00 | Not applicable |
11-325 | 11.5 | |
|
HWRF Series |
HWRF12 | 2.13 | 11-327 | 11-327 | 4.0 |
| HWRF14 | 2.13 | 11-912 | 11-350 | 4.5 | |
| HWRF16 | 2.13 | 11-093 | 11-199 | 5.5 | |
| HWRF18 | 2.13 | 11-700 | 11-329 | 6.0 | |
| HWRF20 | 2.13 | 11-524 | 11-507 | 6.5 | |
| HWRF24 | 2.13 | Not applicable |
11-330 | 7.5 | |
| HWRF30 | 2.13 | Not applicable |
11-331 | 9.0 | |
| HWRF36 | 2.13 | Not applicable |
11-332 | 11.0 | |
|
HWCR Series |
HWCR6 |
2.38 | 11-831 |
11-833 | 2.5 |
| HWCR8 | 3.00 | 11-832 | 11-834 | 4.0 | |
| HWCR10 | 3.00 | 11-824 | 11-013 | 6.5 |
† Hub bores available as standard.
