DrillOps data aggregation and delivery

Surface, downhole and equipment data aggregation, transmission, and visualization to put all your data at your fingertips, anytime

联系我们 Related Resources

Overview

Access and analyze all your drilling data in real-time with DrillOps™ data aggregation and delivery, on the Delfi™ digital platform.

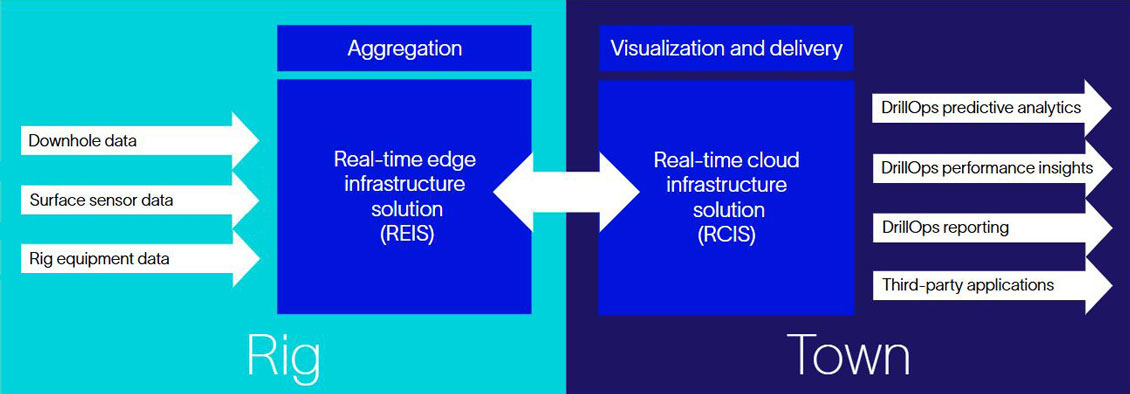

DrillOps data aggregation and delivery is a vendor neutral solution which can integrate all well operations data into a single ecosystem. This facilitates interpretation and is extensible to user-built solutions. It provides a step-by-step simplified workflow, reduces human dependencies, and transforms how data aggregation services are delivered. This enables a consistent approach so you can be closer to your data anytime, anywhere, and with the right context.

The ecosystem also enables data visualization at the rig and in town, through its cloud WITSML store application, opening the door for additional data and analytic service solutions offered by SLB. Third-party applications can also be fed from the same infrastructure through the DrillOps intelligent well delivery and insights solutions extensibility portal.

Applications

Ensuring quality-controlled data from your rig site activities is collected, stored, and made available for advanced analytics and decision-making processes.

Benefits

Collect all your data from multiple sources at the rig site, including third-party service companies and contractors (vendor neutral), and aggregate it into a single unified system.

Robust 24/7 data quality monitoring both at the rig site and in town, ensures the accuracy and reliability of the data being collected and transmitted.

Extract maximum value from your operational data by publishing it in a centralized location in town, enabling the use of analytics both at the edge (rig site) and in town.

Features

Town

Visualization

Data visualization through RtViz providing access to all streamed data in a variety of formats. Easily customizable dashboards ensure you view the data you need.

WITSML store

WITSML store in town provides access to all data collected. This supports the latest WITSML standards WITMSL 1.3.1.1 and 1.4.1.1 over ETP 1.1 as both producer and consumer. Supports all key WITSML standard objects (well, wellbore, logs, trajectory, mudlogs messages, DrillReport, risk, etc.).

Rig

Data quality monitoring

The system includes robust data quality monitoring both at the rig site and in town. Automated algorithms identify issues such as data gaps and spikes, and can create support tickets automatically, reducing the need for manual monitoring. This ensures that the data being aggregated is accurate and reliable.

Buffering and auto-reconnect

The system can buffer data for up to a week in case of connectivity issues. Once the connection is restored, the system automatically streams the buffered data to town, ensuring no data is lost and maintaining the integrity of the data set.

Edge orchestration

Edge orchestration enables remote management and monitoring of the edge devices. This includes deploying and redeploying services, monitoring the overall infrastructure, and ensuring that all services are running as expected. This centralized management enhances the efficiency and reliability of the system.

Custom computations and visualizations

The system includes a framework that allows users to add custom computations and visualizations. This means that specific data transformations or models can be applied directly at the rig site, and the results can be integrated with the rest of the data set. This flexibility enables users to tailor the system to their specific needs.

Plug-and-play architecture

The system is designed with a plug-and-play architecture, enabling easy addition of new applications and services. You can install additional applications like DrillOps automation, DrillOps advisory, and DrillOps procedural adherence on the same edge device, making the system highly flexible and scalable.

Support for multiple protocols

The system supports a variety of data protocols, including Modbus, OPC Unified Architecture (OPC UA), Data Scribe, Profibus, and WITS. This extensive protocol support allows the system to integrate data from diverse equipment and sources, ensuring that all relevant data can be collected and unified within the system.

Integration with third-party applications:

The system can transfer data to third-party applications in town, enabling further analysis and use of the data for various purposes, such as DrillOps predictive analytics and DrillOps performance insights. This integration extends the value of the data collected at the rig site by making it available for advanced analytics and decision-making processes.

Robust security measures

The system includes features such as antivirus software deployment and centralized monitoring for vulnerabilities, ensuring a secure environment for data aggregation and delivery. So you can be assured that your data is protected from potential threats.
