RCB

Retrievable cement bushing

Rated up to 10,000 psi [69 MPa]

Rated to 325 degF [163 degC]

Maintain pressure integrity for liner hanger operations

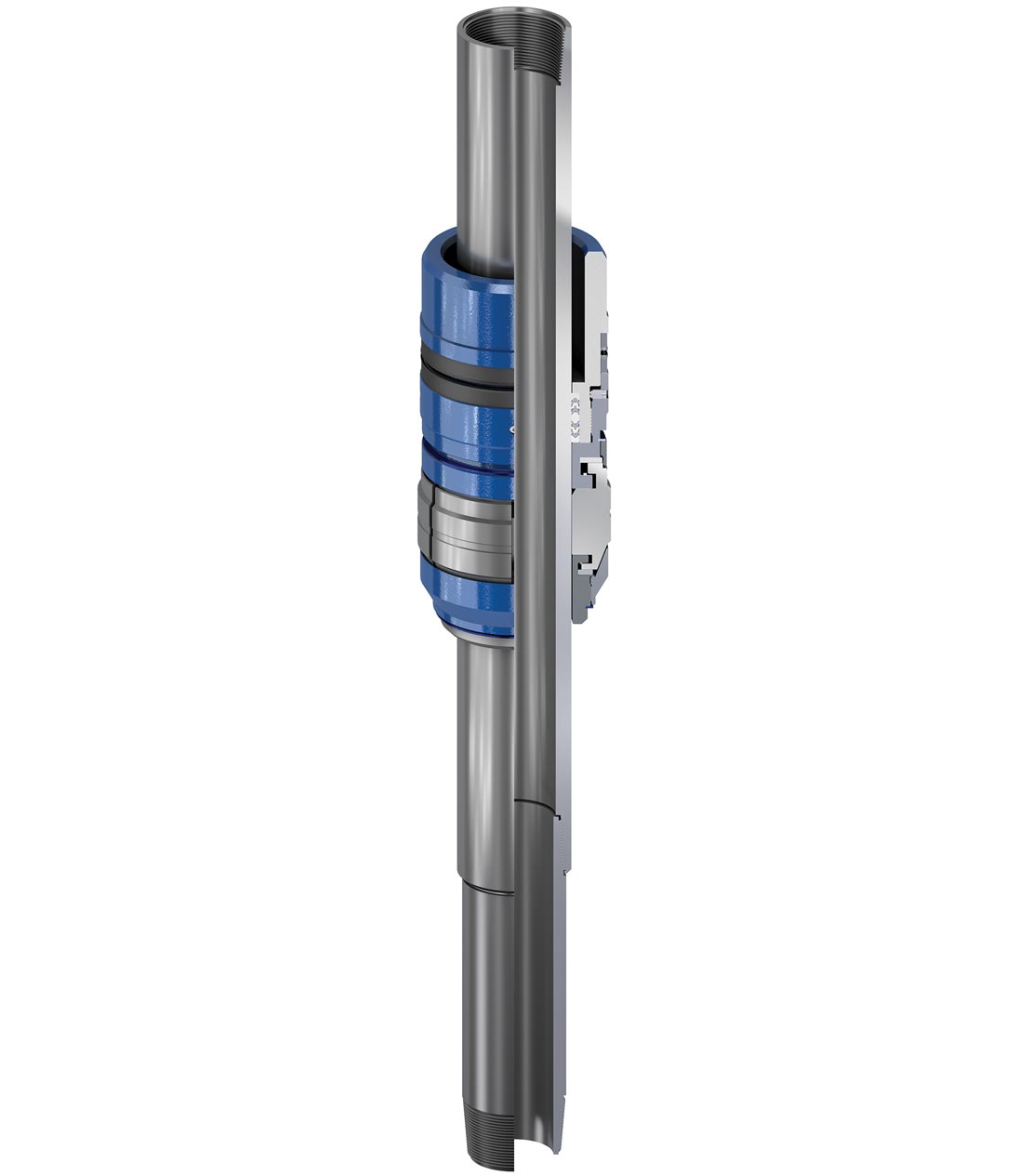

The retrievable cement bushing (RCB) is composed of a body with locking lugs and interior and exterior seals. It sits in a machined profile in the liner setting adapter, liner top packer, or profile sub. The recess on the polished OD setting tool slick joint allows retrieval of the RCB with the setting tool.

Features include full-circle locking lugs for optimal pressure resistance and small piston area to reduce forces on the workstring during circulation and cementing operations.

Optimize liner cementing and liner top packer setting operations

The RCB is optimized for use with the COLOSSUS CMT cemented liner hanger system and COLOSSUS UNC uncemented liner hanger system. It provides pressure integrity from the workstring to the liner toe. It remains in position throughout the running and cementing operations and enables pressure testing of liner top packers after they are set.

The system also enhances cementing operations and wellbore stability because the packoff ensures circulation of all cement behind the liner.
