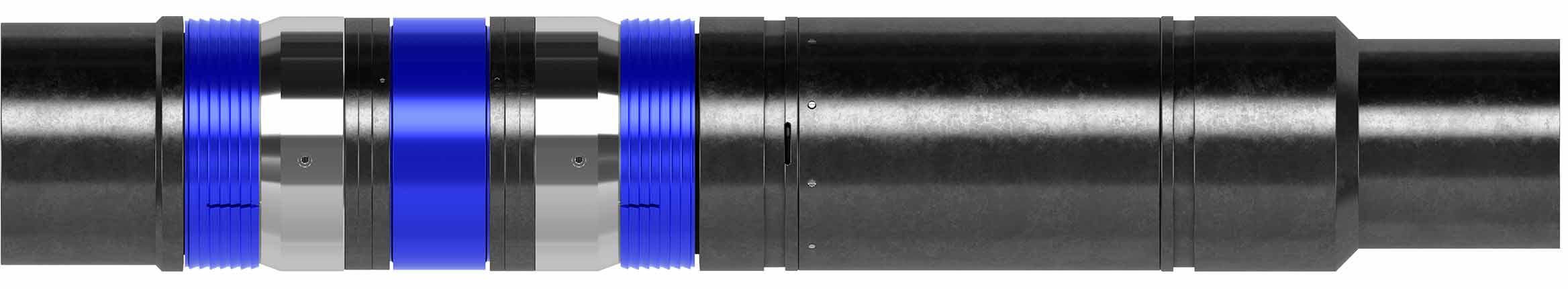

BluePack Max PH-V3

High-pressure permanent hydraulic-set production packer

Rated to 10,000 psi [69 MPa]

Rated up to 350 degF [177 degC]

Validated to ISO 14310 and API Spec 11D1 V3

Isolate high-pressure zones with confidence

BluePack Max PH-V3 high-pressure permanent hydraulic-set production packer is a single-string device that can hold differential pressure from above or below. It isolates the casing annulus to allow production of a specified zone. The packer can also act as an anchor for the tubing string.

The single-piece mandrel body makes this packer an economical choice for production and injection applications. The packer is configurable for tubing-mounted, sealbore, and step-bore options.

BluePack Max PH-V3 packers are available in a range of materials for a variety of service applications, including H₂S and CO₂ environments.

Save time with simplified installation

The packer is installed with the completion tubing and set by applying pressure to the tubing.

The design incorporates two full-circumference slips supported by two opposing tapered cones with a sealing element assembly positioned between them. The slips and sealing element assembly are sequentially set and held in position by a positive-lock mechanical ratchet. The slips are designed to split into multiple segments on setting and provide a full 360° grip on the casing.

Naming convention for BluePack family of packers

A simplified naming convention tells you what you need at a glance

The modular architecture of our BluePack packer family simplifies engineering designs across the entire family.

You can select the packer that’s best suited for your well environment while configuring certain components and subassemblies of the packer based on the specific needs or challenges of the well. For example, you might customize the elastomer based on the chemical properties of the fluids that will be in the well.

This standardization not only improves lead times and costs, it also improves operations by ensuring that employees are trained on a standardized deployment methodology.
