MRP-MP

Name: MRP-MP
Brand: SLB

Modular multiport packers

Download PDF 联系我们 Related Resources Buy now

Rated up to 5,000 psi [34.5 MPa]

Rated to 250 degF [121 degC]

Isolate segments in single- and multizone intelligent completions

Designed for intelligent completions, the MRP-MP modular multiport packer series consists of tubing-conveyed, hydraulic-set, retrievable production and isolation packers for single- or multizone completions.

Each packer features a multiple-bypass configuration for up to five hydraulic control line or electrical conduits, with flexible designs to match your completion requirements.

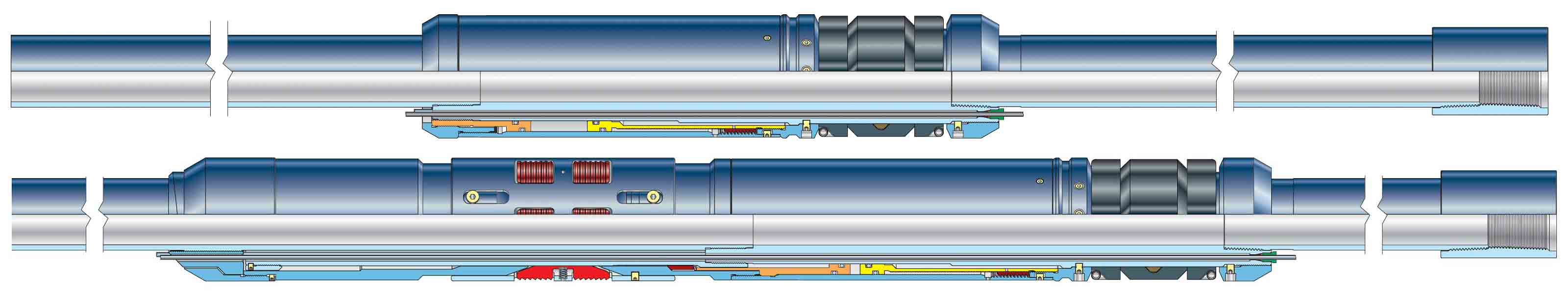

MRP-MP production packer (bottom) and isolation packer (top).

Reduce risks during installation and retrieval

Slips are located below the sealing elements, minimizing risks that debris will build up and hinder retrieval. Configuration options are available to suit multiple applications: straight pull-to-release, cut-to-release, and isolation.

The hydraulic setting mechanism is centrally located between the element and slips, and the packer design eliminates pipe movement during installation, which reduces risk of misruns.

The packers are also available in configurations that maintain premium connections throughout the tubing string.
