XHP-BB

Hydrostatically set big-bore premium production packer

Rated up to 10,000 psi [69 MPa]

Rated up to 400 degF [204 degC]

Validated to ISO 14310 and API Spec 11D1 V0

Minimize rig time with fewer interventions

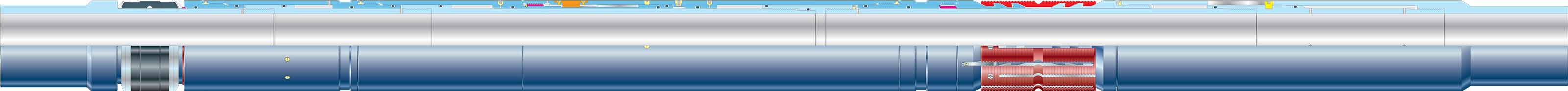

Designed for high-rate production and injection wells, the XHP-BB hydrostatically set big-bore premium production packer is qualified for low-temperature use in subsea injection wells, as well as for high-pressure, high-temperature (HPHT) environments.

The packer is available with premium metallurgy and elastomers to withstand harsh conditions and is designed for closed systems, such as cased hole wells before perforating and openhole completions isolated by a formation isolation valve.

Optimize single-trip completions

Because the packer is hydrostatically set, it is ideal for interventionless single-trip completions. Optionally, it can be fully set by placing a tubing plug below it and applying pressure. The hydrostatic setting mechanism includes a built-in contingency, and the leak-free hydrostatic chamber ensures packer activation at the proper depth.

The packer's cut-to-release feature also enables multiple through-tubing interventions without the risk of unsetting the packer.
