XHP

Premium production packer

Rated to 15,000 psi [103 MPa]

Rated up to 425 degF [218 degC]

Validated to ISO 14310 and API Spec 11D1 V0

Isolate single-string production or injection wells even in extreme temperatures and pressures

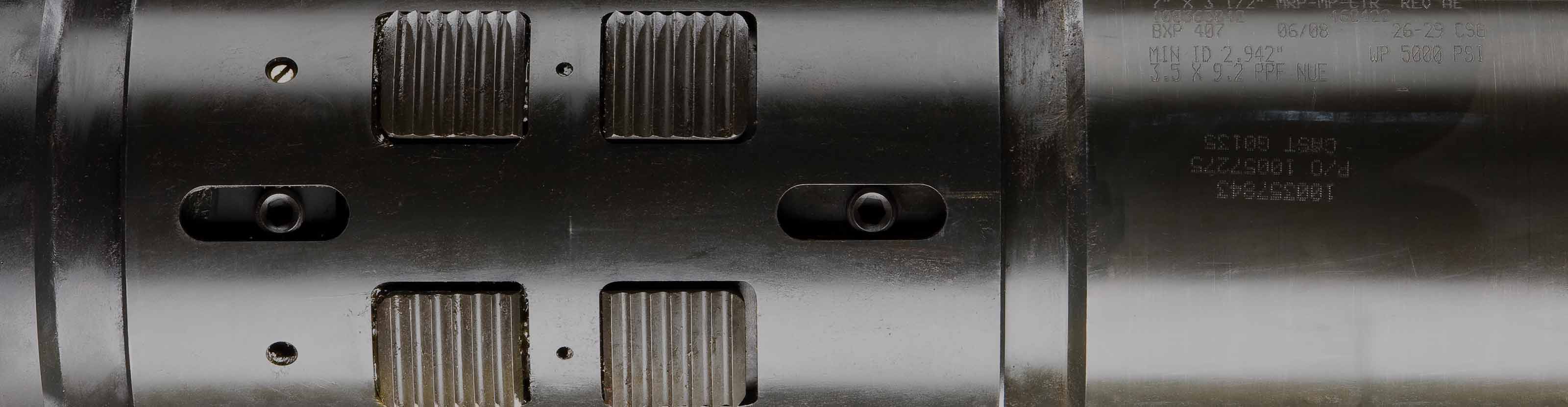

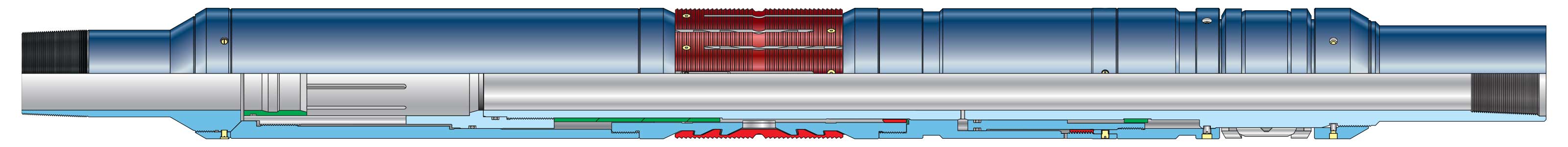

Designed for single-trip, single-string completions, the XHP premium production packer isolates critical zones from low-temperature subsea injection wells to HPHT land and deepwater wells.

The hydraulic-set, retrievable packer is installed with completion tubing and retrieved with a through-tubing intervention tool. Slips are located below the sealing element to minimize debris buildup and facilitate retrieval.

Isolate well segments with confidence

Design flexibility enables the following configuration options: Setting on control line, left-hand rotation disconnection, and retrieval by intervention with a tubing cutter. The design makes it suitable for use in unsupported casing, and it can be run in deviated wells.
