案例分享 JEL Acquires Temperature Profile Data
JEL uses distributed temperature array system in the reservoir to acquire temperature data profile
Real-time data monitoring and tool control for reservoir testing operations
With operations completed in more than 26 countries and nearly every continent, Schlumberger’s wireless telemetry testing solutions enable you to monitor and refine reservoir testing operations in real time—even in remote locations. Using bidirectional communication between surface and downhole, wireless telemetry provides real-time data monitoring and tool control so you meet your test objectives every time.

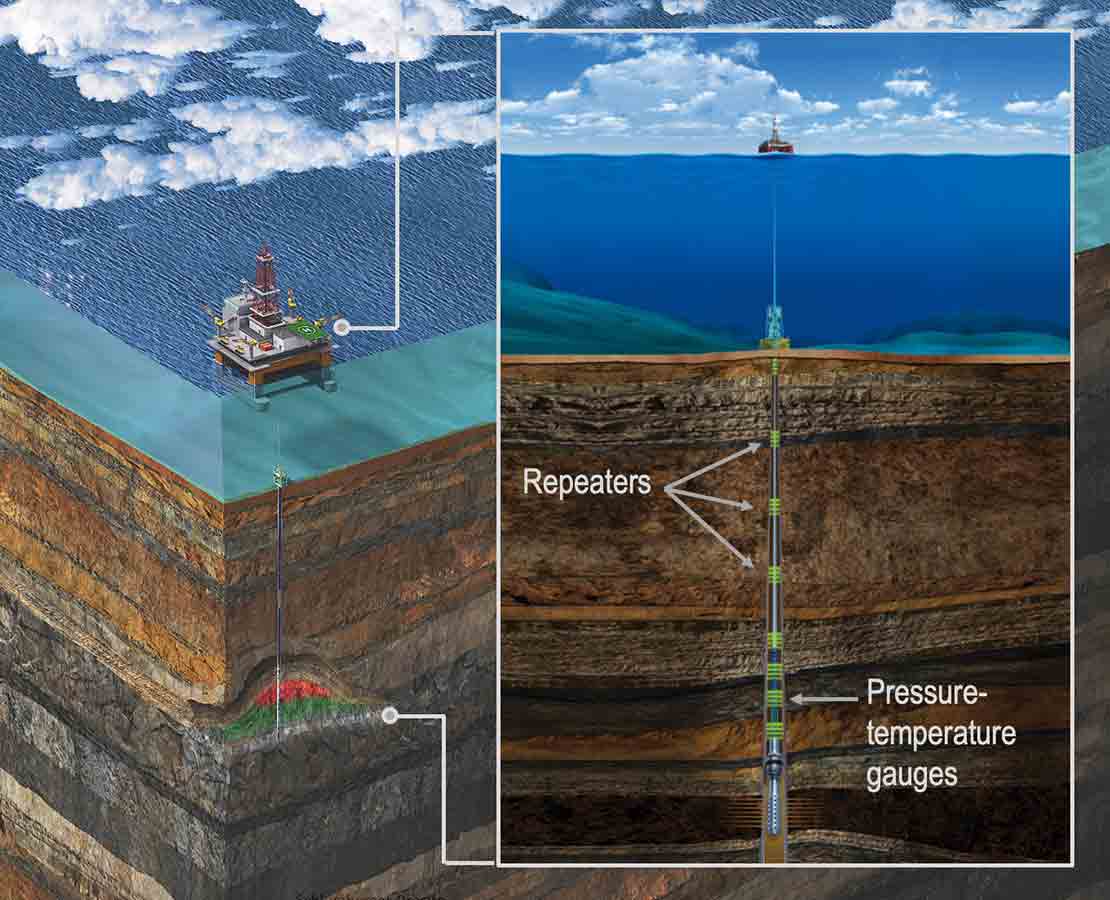

A digitized acoustic signal is transmitted across the toolstring using a network of repeaters to provide reliable performance in maintaining high data transmission density.
Wireless Technology | Wireless Enabler | Rig Type | Max. Well Depth, ft [m] | Max. Temperature, degF [degC] | Max. Pressure, psi [MPa] | Connected Tools | Communication Availability |
Presto wireless gauges | Muzic wireless telemetry | Land, jackup | <11,500 [3,505] | 250 [121] | 10,000 [69] | Two gauges | Buildup only |
Symphony live downhole reservoir testing | Muzic wireless telemetry | All | No limitation | 330 [165] | 18,000 [124] | No limitation | No limitation |
Muzic Aeon premium-performance wireless telemetry | All | No limitation | 392 [200] | 30,000 [206] | No limitation | No limitation |
Enable the industry’s fastest, most advanced system for achieving real-time bidirectional communication between surface and downhole with Muzic wireless telemetry. And for HPHT conditions, Muzic Aeon premium-performance wireless telemetry uses 100% ceramic multichip module technology to lower power consumption, enhance reliability, and increase the high-frequency bandwidth.
