CMR-MagniPHI

High-definition NMR service

Unlocking a new dimension in fluid mapping across the smallest pores.

CMR-MagniPHI

High-resolution NMR service

Measure T₁ and T₂ simultaneously and continuously for the most accurate lithology-independent porosity and fluids mapping

New CMR-MagniPHI service obtains high-definition, simultaneous, continuous T₁ and T₂ relaxation time measurements to enable the unprecedented determination of shale porosity and reservoir fluid types and volumes for

movable and nonmovable oil
high-viscosity hydrocarbon
free, capillary-bound, and clay-bound water.

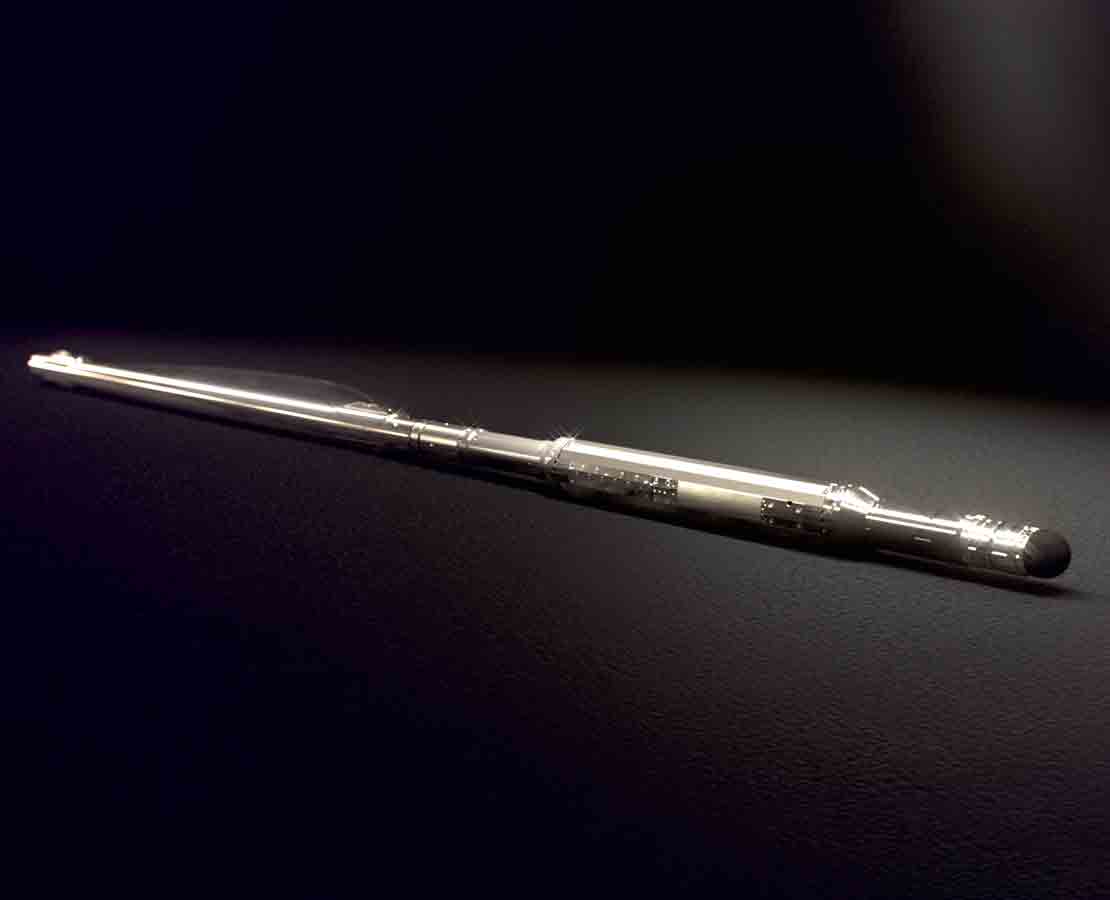

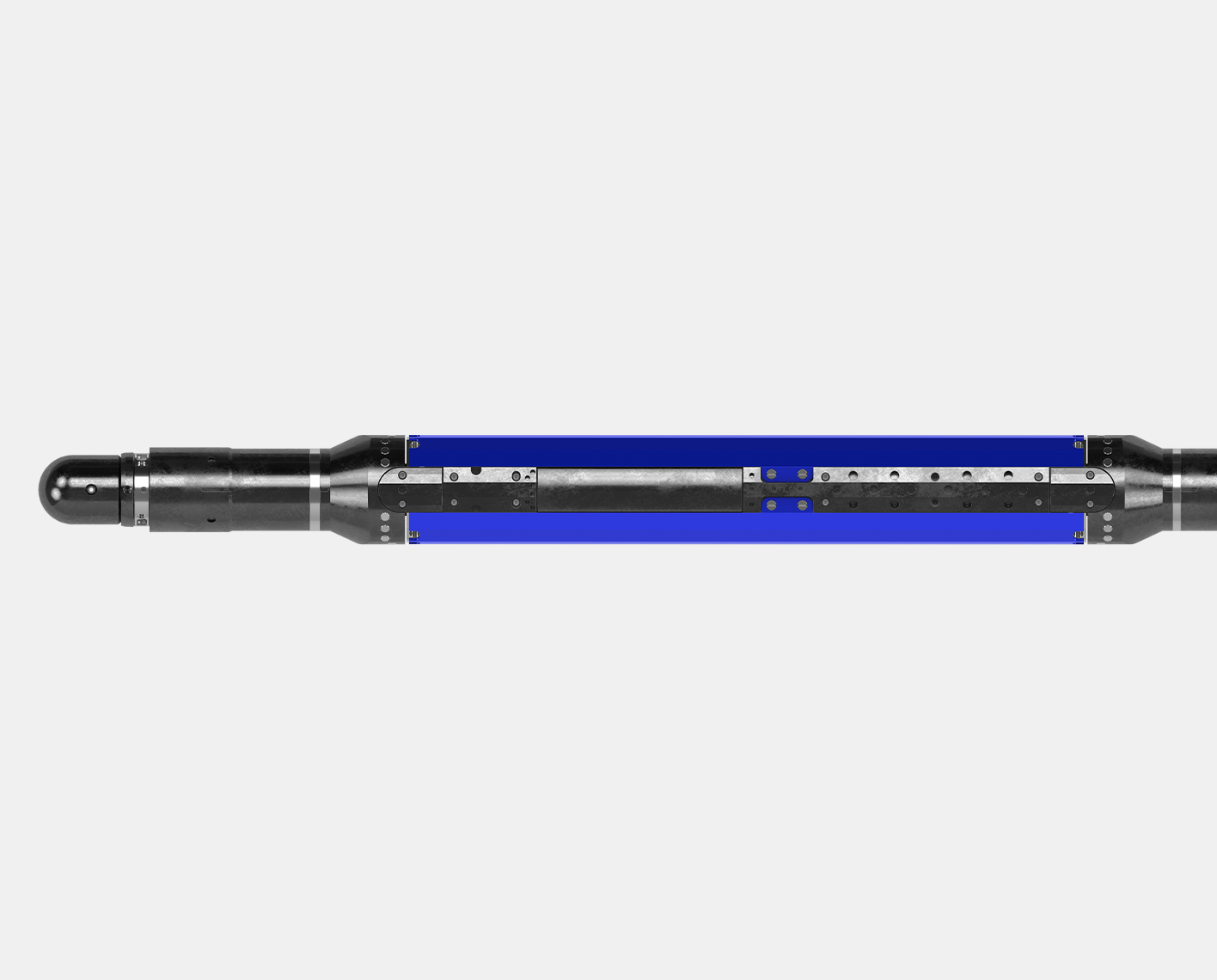

The CMR-MagniPHI High-definition NMR service tool

200 us

Shortest echo spacing

6 in

Highest vertical resolution

15.6 ft

Shortest tool

374 lbm

Lightest tool

Zoom in on the smallest organic shale pores

Building on the capabilities of the industry-benchmark CMR-Plus combinable magnetic resonance tool, CMR-MagniPHI service pairs technological advancements with improvements in efficiency and reliability.

The new continuous T₁ measurement made in combination with T₂ relaxation at the industry’s shortest echo spacing of just 200 us captures high-definition NMR data from the smallest pores in organic shales to improve the identification of different fluid types.

Quantify certainty in any reservoir, any size pores

In addition to greater certainty in reserves calculations, new insight is brought to selecting the lateral drilling landing point and designing engineered completions and fracturing operations in shale reservoirs.

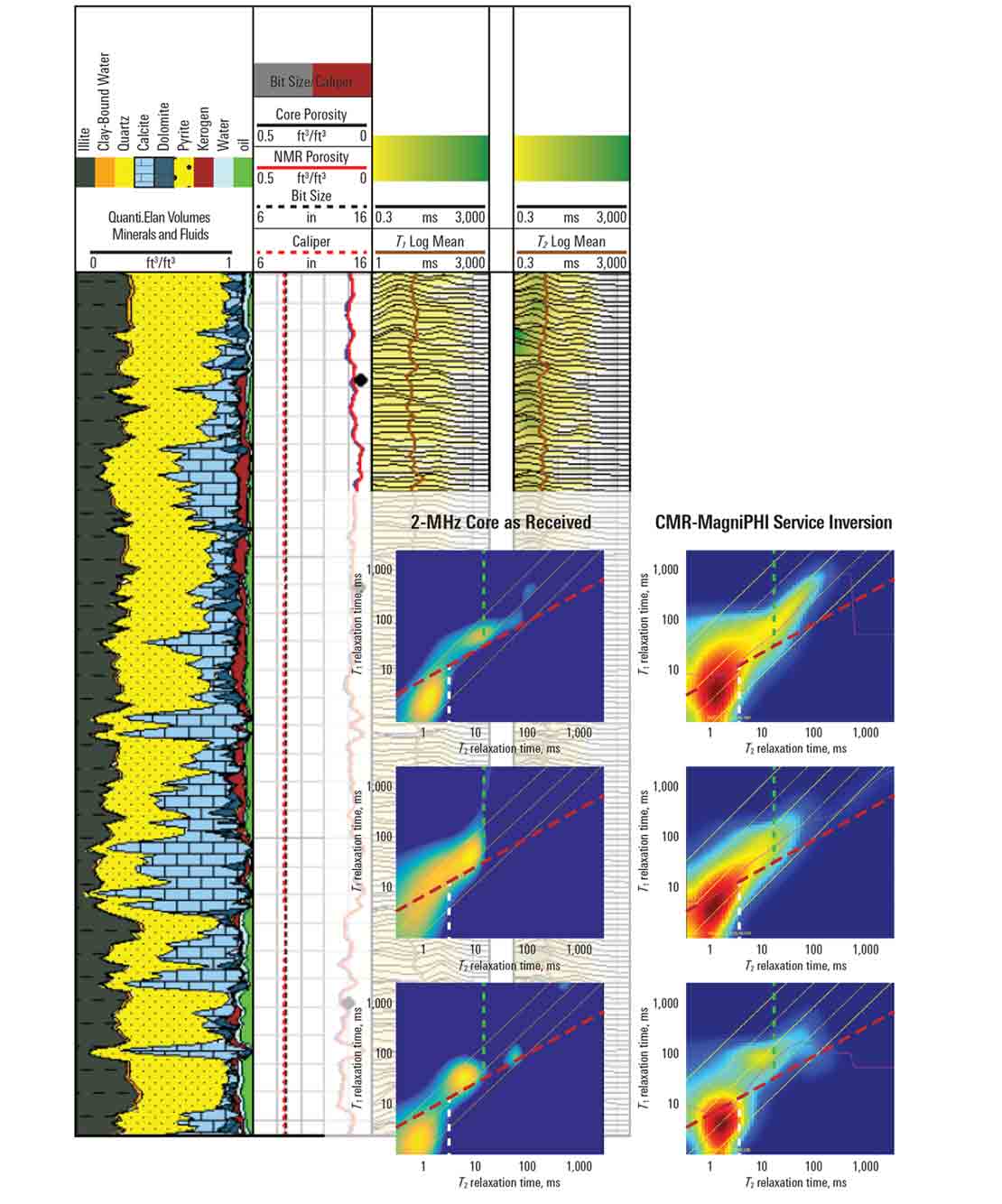

Logs and fluid maps from the CMR-MagniPHI High-definition NMR service.

Validated by results from core analysis, the petrophysical model developed for an Eagle Ford well with measurements from CMR-MagniPHI service refined the reservoir volumetrics to identify potential landing targets on the basis of the reservoir producibility index and permeability from CMR-MagniPHI service.
