案例分享 HPHT Borehole Seismic Survey Below Chalk
SlimXtreme borehole seismic survey in a deviated, HPHT North Sea well accurately images reservoir beneath chalk layer.

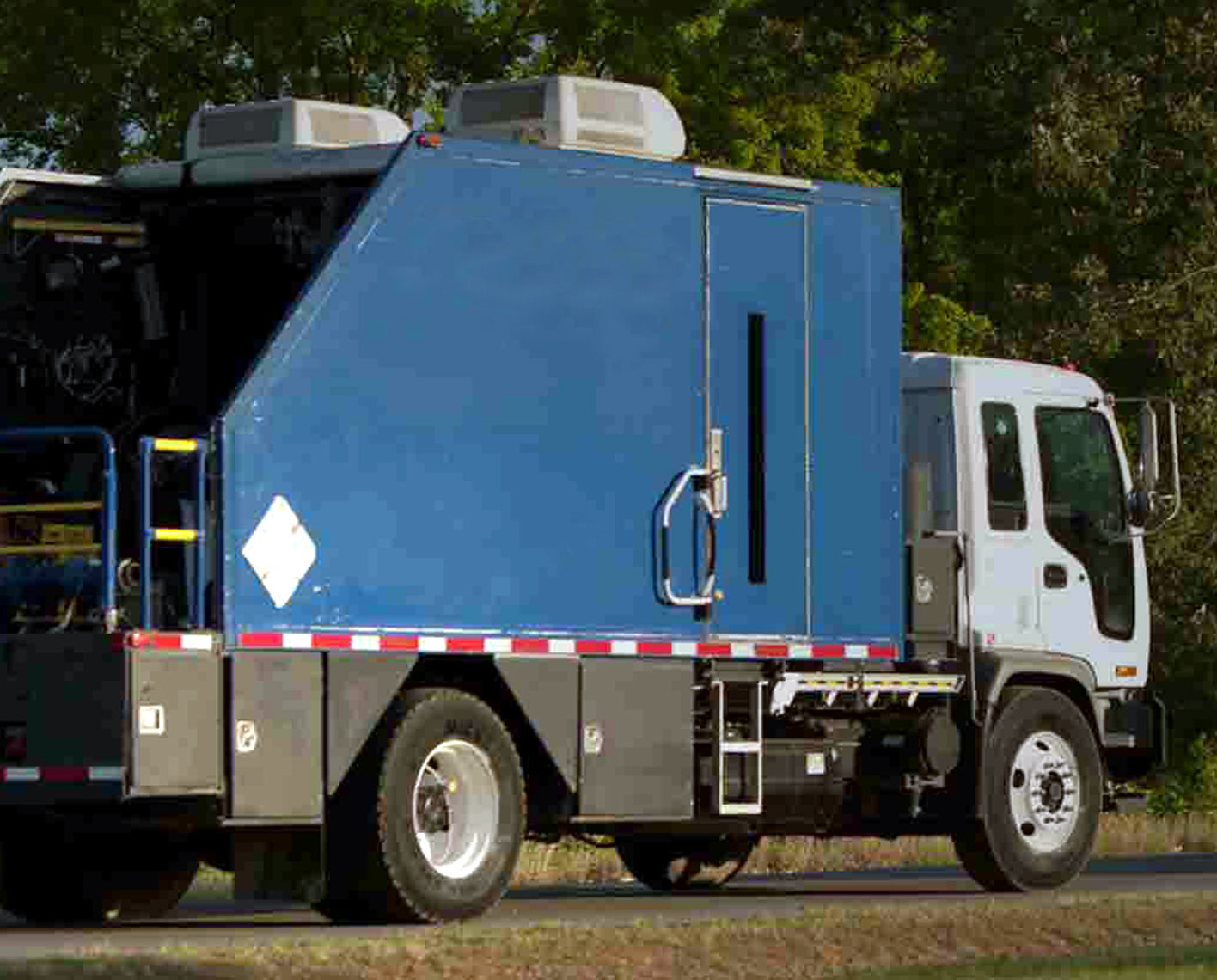

SlimXtreme
Slimhole HPHT well logging platform
500 degF
Temperature
30,000 psi
Pressure
3 7/8 in
Borehole diameter
Break through logging barriers in extreme-environment slim wells
The SlimXtreme slimhole HPHT well logging platform enables logging in the toughest of places: ultradeep HPHT wells with borehole diameters as small as 3 7/8 in.
The platform integrates robust HPHT-rated tools providing array induction resistivity, formation photoelectric absorption cross section, bulk density, thermal neutron porosity, and gamma ray measurements. All tools use advanced wireline digital telemetry rated to the same pressure and temperature as the platform. Data transmission capability is through wireline cables as long as 36,000 ft.

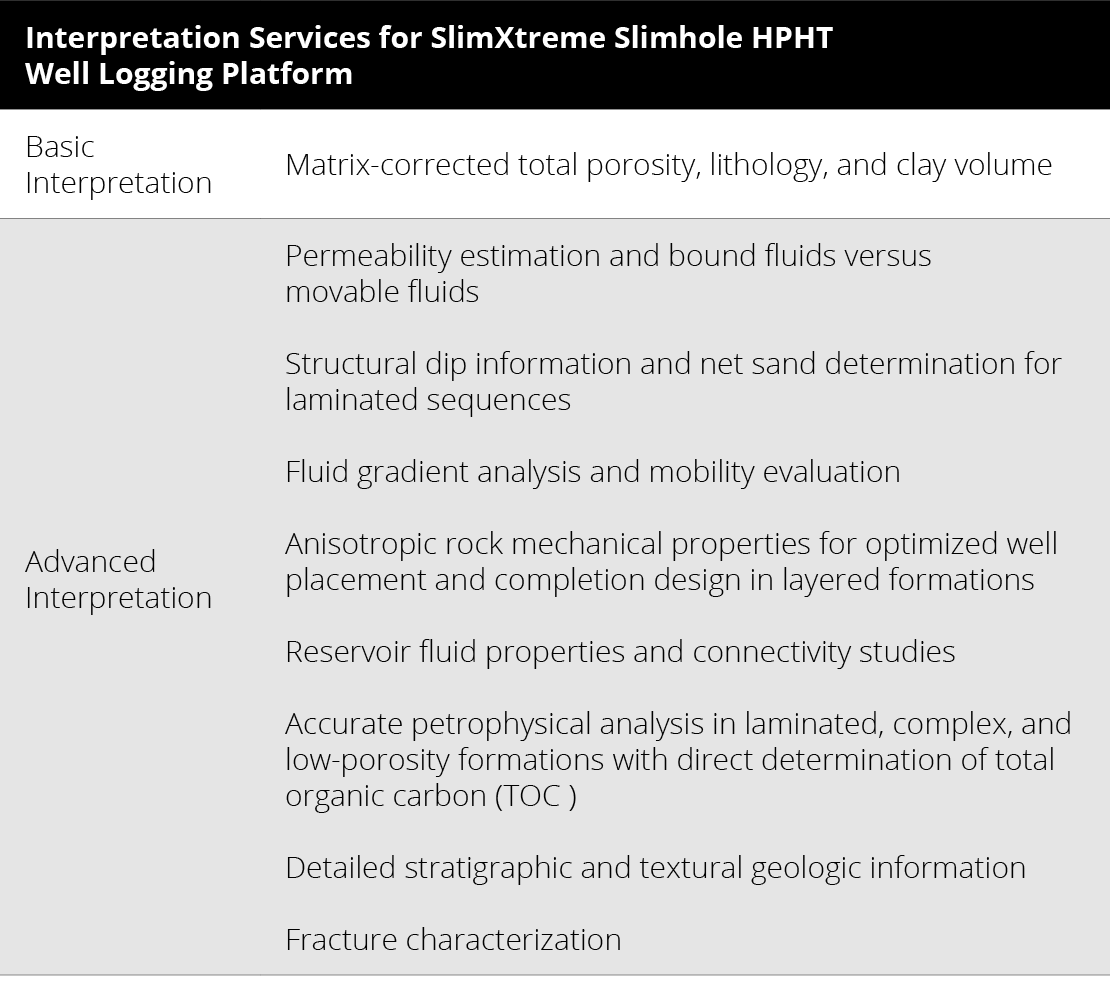

Interpretation
The SlimXtreme slimhole HPHT logging platform provides an integrated dataset with the information required for basic formation evaluation answers, such as porosity and saturations. Tool output is fully corrected for borehole and environmental effects. The real-time mud resistivity measurement is used to compute tool standoff and environmental corrections.
This foundational insight is readily expanded by combining the dataset with additional measurements. Integrated interpretation employs advanced workflows, the multidisciplinary expertise of our interpretation geoscientists and engineers working with you as needed, and software such as the Techlog wellbore software platform to maximize the value of your logging data. The result is the fullest possible understanding of complex lithologies, such as carbonate, shaly sand, and shale reservoirs.
