M-I SWACO DURAFLO Optimus Shaker Screens | SLB

DURAFLO Optimus

High-capacity two-tier composite shaker screens

Closeup of DURAFLO Optimus screen.
2
Tiers
50%
More fluid capacity
30%
More nonblanked area

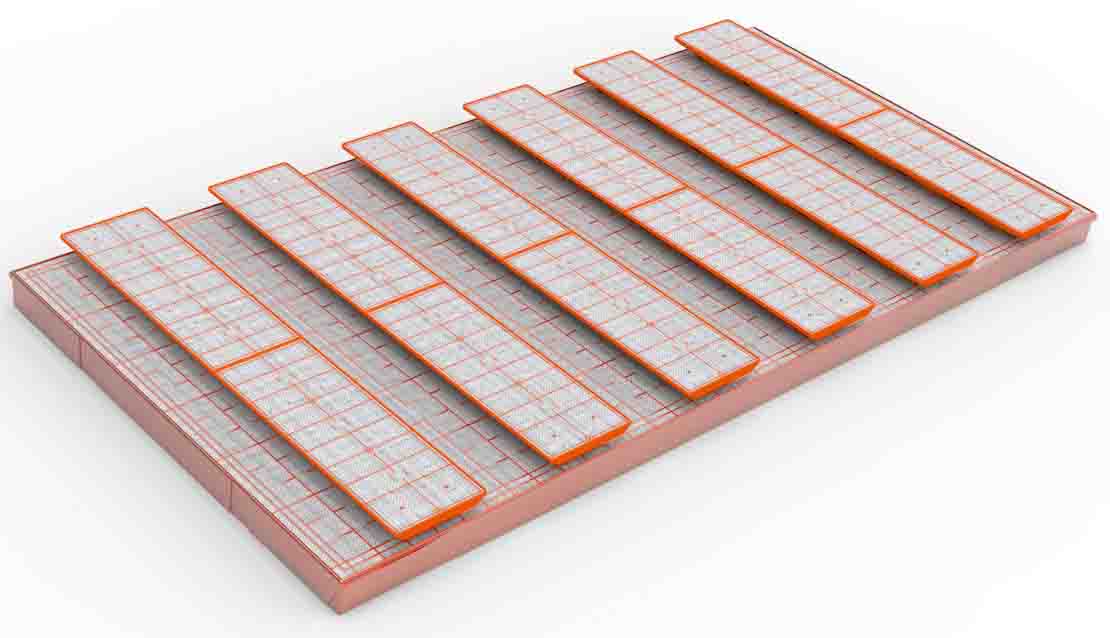

DURAFLO Optimus screen.
A composite frame design holds up under virtually all drilling conditions.

Increase in circulating capacity for better hole cleaning while screening finer for the best reduction in low-gravity solids

Featuring a patented, composite frame design that holds up under virtually all drilling conditions, the DURAFLO Optimus high-capacity high-tier composite shaker screen delivers unsurpassed usable screen area.

DURAFLO Optimus screens are available with ultrafine (XL) and XR MESH shaker screen mesh, giving operators maximum screening flexibility.

Applications

  • MONGOOSE PRO dynamic dual-motion shale shaker
  • MEERKAT compact single-deck shale shaker

Benefits

  • Increases fluid capacity up to 50%
  • Decreases downtime

Features

  • Patented, composite frame design
  • Raised funnels for 30% increase in nonblanked area
  • Manufactured with consistent, rugged construction
  • Quickly and easily reparable base screen
  • Rust- and delamination-resistant design

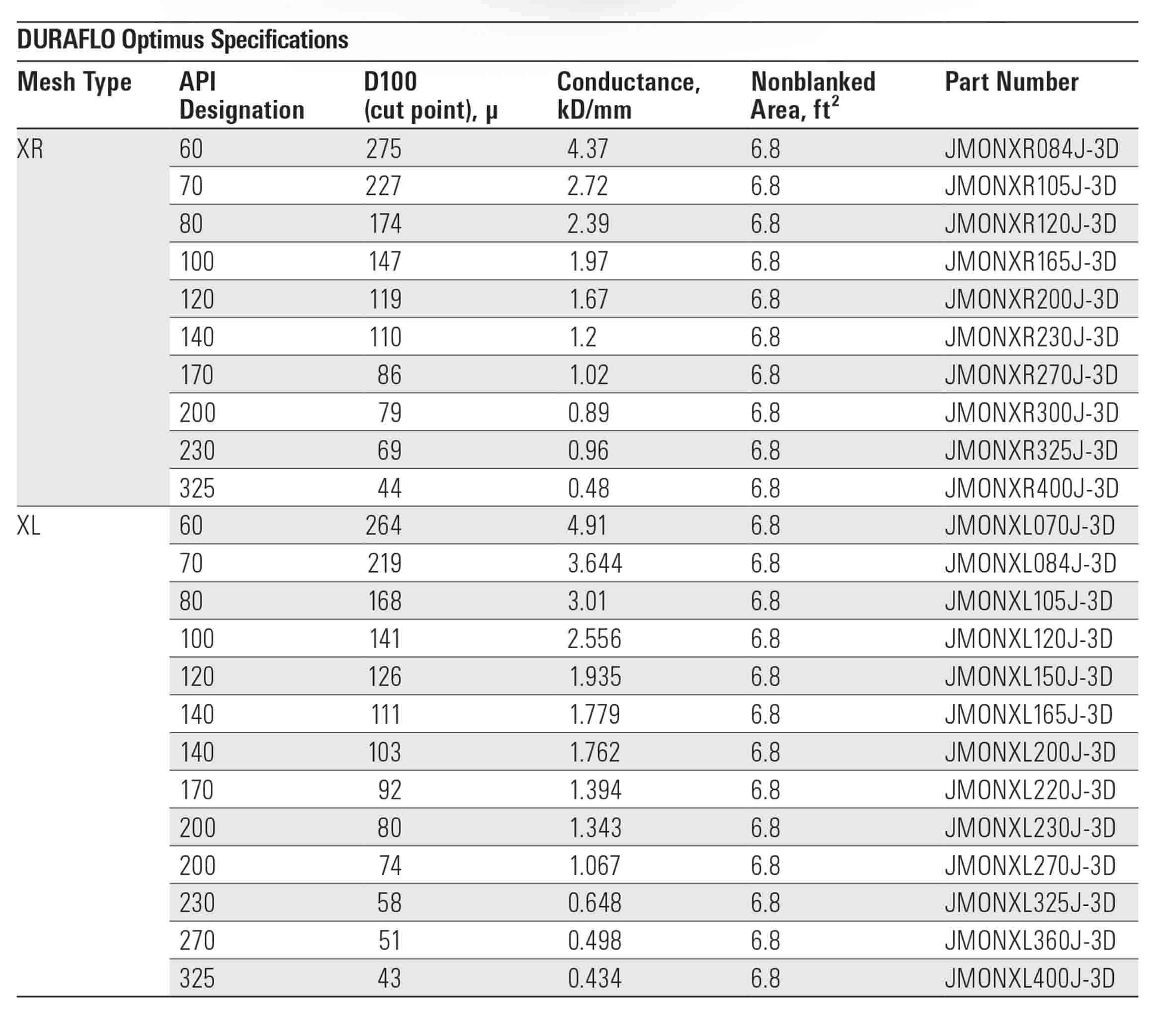

Specifications table for DURAFLO Optimus screens
Specifications table for DURAFLO Optimus screens
DURAFLO Optimus
High-capacity two-tier composite shaker screen
