案例分享 Extreme-Life Shaker Screens Lasted 4.65 Times Longer Than Conventional Screens
New shaker screens enable an onshore Mexico operator to reduce screen costs by 23% and screen disposal by 77%.

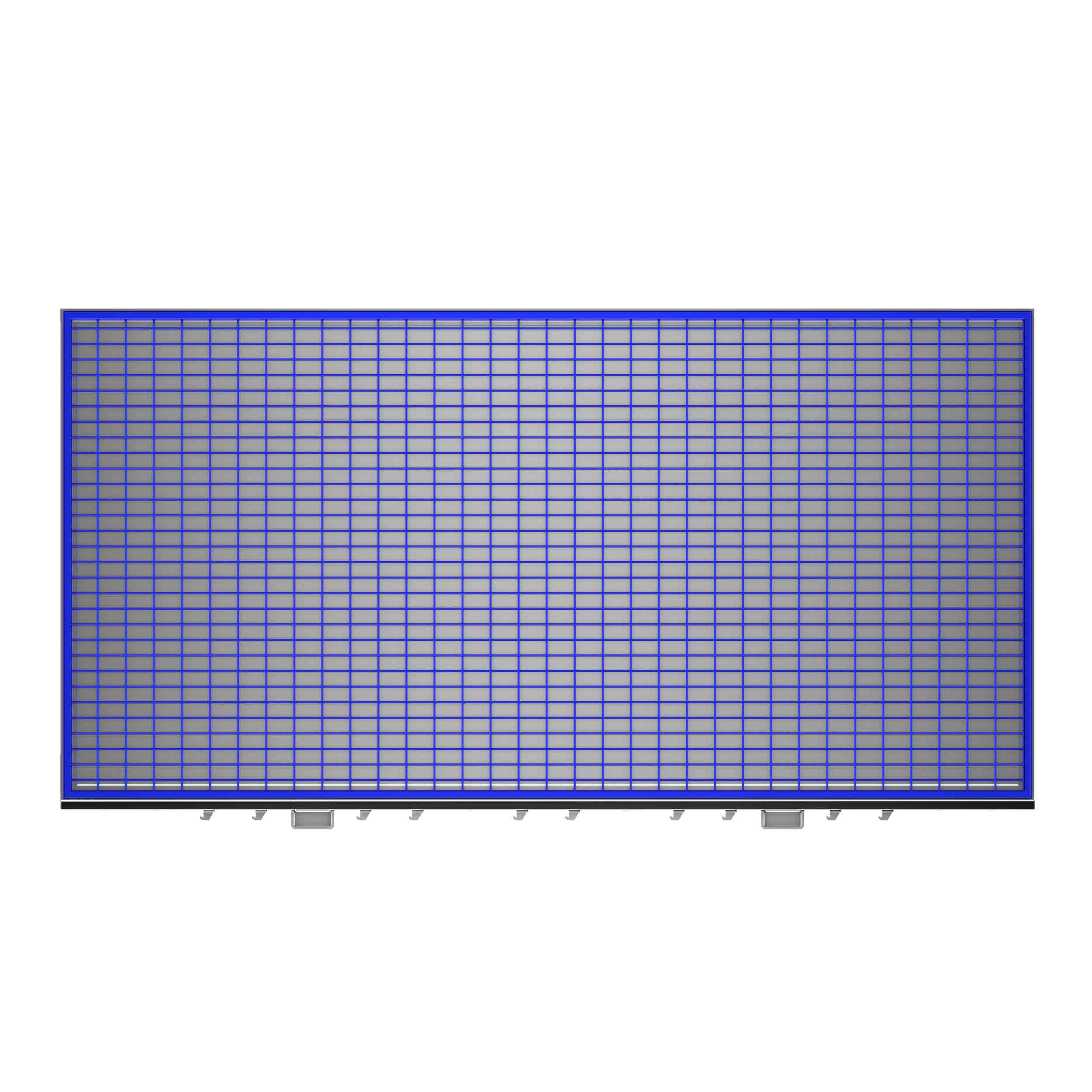

Extreme-life shaker screens
Durable and longer-lasting screens
Overview
Extreme-life shaker screens deliver long-lasting service that produces cleaner drilling fluids and reduces downtime. The fine, durable screens generate less waste from screen consumption at the rig site and reduces haul-off materials to the landfill.
The Extreme-life shaker screens are used with the MONGOOSE PT™ dynamic dual-motion shaker, the MONGOOSE PRO™ dynamic dual-motion shaker, and the MEERKAT™ compact single-deck shaker screens.
Sustainability
Reducing waste generated by creating a longer-lasting screen will reduce our CO2 footprint. This is accomplished by reducing the fuel costs associated with haul-off of used screens and reducing waste material generated.
Applications
- Global onshore and offshore
- MONGOOSE PRO shaker series
Benefits
- Reduce high amounts of waste caused by frequent screen changes
- Lower total screen costs
- Quick and easy to repair
Features
- Stronger, longer-lasting mesh
- Does not rust or delaminate
Tech Specs
Extreme-Life Shaker Screen Specifications
Size (W × L, in), 23 × 45.875
| API Designation | Mesh Type | D100 (cut point), μ | Conductance, kD/mm | Non-blanked Area, sq.ft | Part Number |
| API 80 | XR | 174 | 2 | 5.3 | JMONXR120X |
| API 100 | XR | 147 | 1.65 | 5.3 | JMONXR165X |
| API 120 | XR | 119 | 1.4 | 5.3 | JMONXR200X |
| API 140 | XR | 110 | 0.99 | 5.3 | JMONXR230X |
| API 170 | XR | 86 | 0.84 | 5.3 | JMONXR270X |
| API 200 | XR | 79 | 0.72 | 5.3 | JMONXR300X |
| API 230 | XR | 69 | 0.81 | 5.3 | JMONXR325X |
| API 325 | XR | 44 | 0.39 | 5.3 | JMONXR400X |
| SNAP-LOK™ plugs | JMONYYZZZ-BX |
All specifications are subject to change without notice.
MEERKAT, MONGOOSE PRO, MONGOOSE PT, and SNAP-LOK are marks of M-I L.L.C., an SLB company.
