Hydraulic underreamer
Rhino integrated borehole enlargement system
Overview
Fast, reliable underreaming

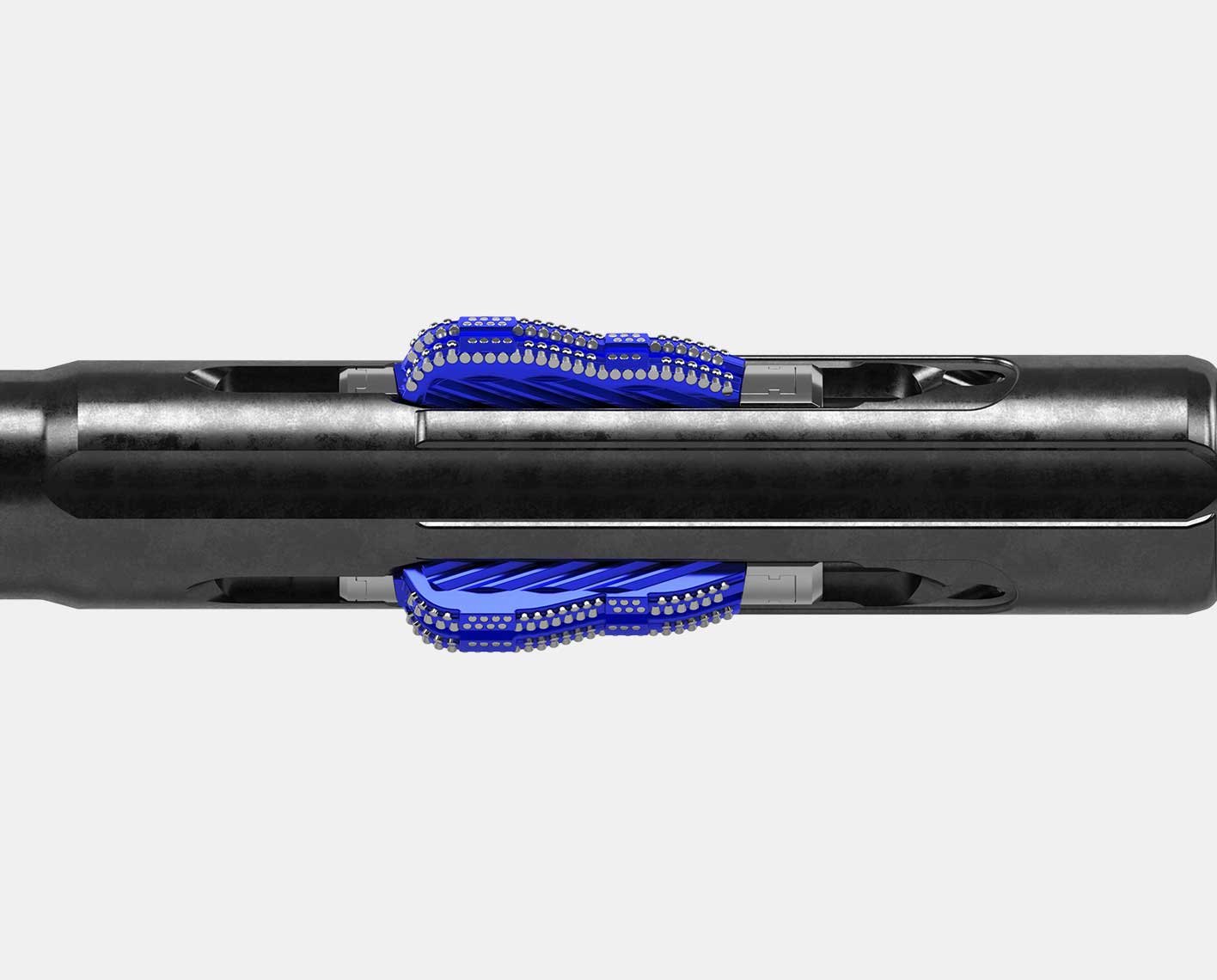

The Rhino™ hydraulic underreamer is part of the Rhino integrated borehole enlargement system—a family of hydraulically actuated reamers that save rig time and bring production online faster by underreaming while drilling in a single run. The Rhino hydraulic underreamer reduces trip-out time, especially in swelling or unstable formations.
Rhino hydraulic underreamer can be configured for a wide range of borehole sizes and borehole-enlargement applications.
Applications
- Hole enlargement while drilling
- Onshore or offshore wells
- Swelling or unstable formations
Benefits
Superior borehole quality
High-quality hole enlargement in demanding applications
Single ball-drop activation
Reliable hydraulic actuation and operation control
Dual reamer capability
Tandem underreamer BHA with dual Rhino hydraulic underreamers
Customizable cutting structures
Application-specific cutter block configuration for improved ROP
Features
- Moving parts placed farther from critical flow ports
- Three drilling fluid ports to facilitate cuttings removal
- Compatibility with rotary or rotary steerable BHA components
- Locking mechanism for shoe-track drillout applications
- Undergauge diameter to optimize annular flow
- Optional stabilizer sleeve for improved stability
- Maximum lost circulation material: 50 lbm/bbl [142.65 kg/m3]
How It Works
Designed for dependability
The rugged, precision-engineered Rhino hydraulic underreamer features moving parts positioned farther from critical flow ports on the undergauge body for optimal flow. Hole enlargement results from cutter block actuation by drilling fluid flow. The fluid then exits the reamer through three fluid ports to improve cuttings removal. An optional integral stabilized body enables use during high ROP in high lateral-vibration applications.

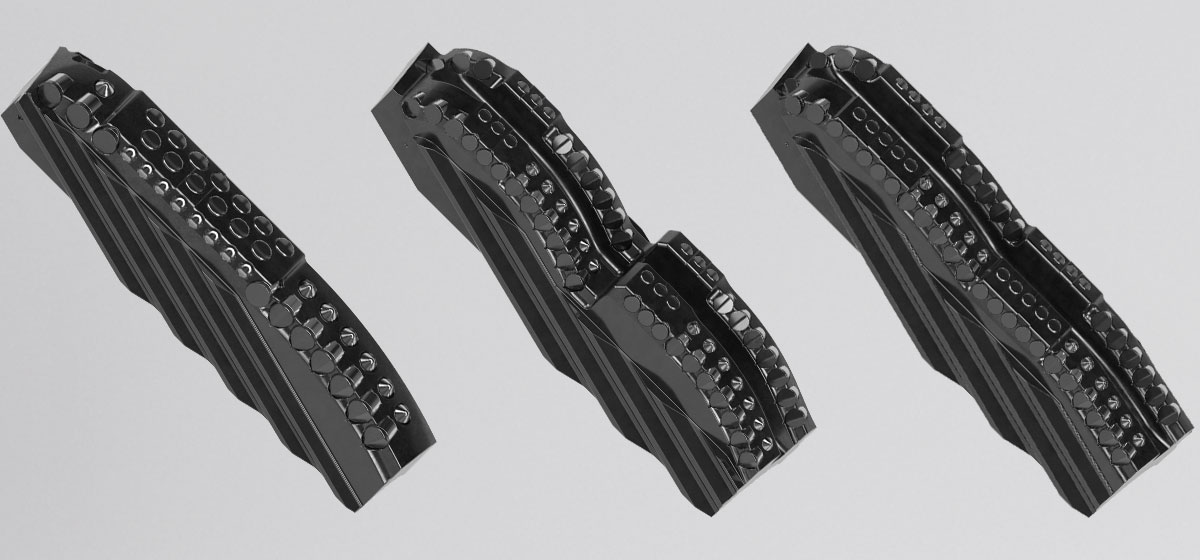

Cutter Blocks: 3D Innovations for the Best Performance
From the AxeBlock™ torque-reducing ridged diamond element cutter block to stabilizer blocks, our industry-leading family of cutter blocks combine the best cutters with a dynamically stable design for the best performance in a variety of formations—all in a variety of BHA configurations.
