Synapse

Performance insights and optimization service

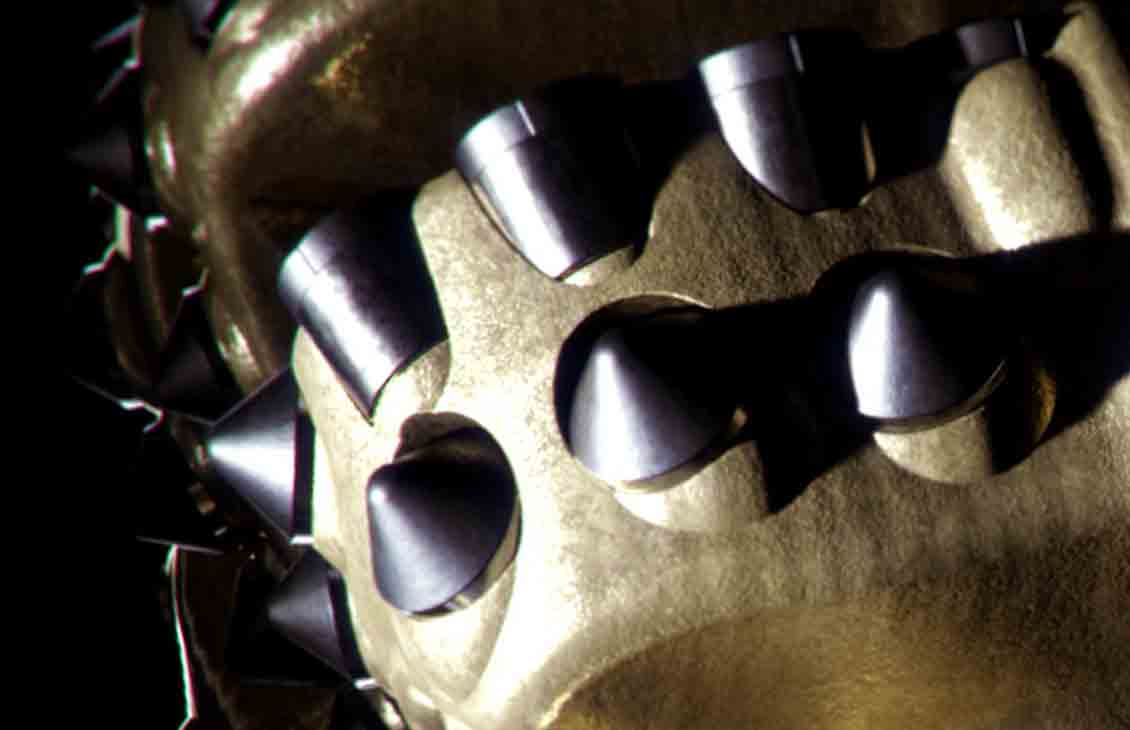

Synapse performance insights and optimization service with blade

Crucial at-bit data that optimizes drilling parameters on upcoming wells

Synapse performance insights and optimization service uses a memory-mode shock and vibration logging tool located inside Smith Bits PDC and roller cone bits. It provides postrun data to evaluate drilling system performance by measuring 3-axis acceleration, torsional vibration, and rpm. The data is quickly processed and customized, per the customer’s requirements, to provide an improved understanding of downhole events and identify performance limiters.

Postrun analysis of Synapse service data enables quick development and adjustment of drilling parameters, further optimizing drilling performance for improved overall efficiency while downhole. Additionally, the data helps reduce premature tool failure, direct tool maintenance systems, evaluate performance of new motor designs, and optimize the bit selection.

True at-bit data improves safety and efficiency

The Synapse service is a self-contained sensor module housed within the bit for true at-bit measurements. Its nonmagnetic assembly prevents interference within the BHA. And the memory-mode logging with optional preset sleep mode enables efficient data acquisition (rotational speed, shock and vibration, and temperature).

Synapse performance insights and optimization service

Schlumberger experts can assess BHA drilling efficiency and deliver synthesized data in 24–48 hours.

Synapse Performance Insights and Optimization Service Specifications


Measurement Range Processing Sampling Frequency
Measurement 3-axial shock Range ±200 gn
Processing RMS, peak, and mean Sampling Frequency 800 Hz
Measurement 3-axial vibration Range ±16 gn  Processing RMS, peak, and mean Sampling Frequency 800 Hz
Measurement rpm Range ±666
Processing  Min., max., mean, stick/slip Sampling Frequency 1,125 Hz
Measurement Torsional acceleration Range ±6,400,000°/s2
Processing Peak, mean Sampling Frequency 1,125 Hz
Measurement Temperature Range –40 to 125 degC Processing Mean Sampling Frequency 1 Hz
Measurement Recording time Range Up to 200 h Processing Sampling Frequency

Measurement Burst mode Range 10-min internal and 10-s duration Processing  Sampling Frequency
Measurement 3-axial shock  Range Processing Sampling Frequency 800 Hz
Measurement Torsional acceleration Range Processing  Sampling Frequency 1,125 Hz
RMS = root mean square.
