T-90

Short-body annular BOP

Onshore BOP on a land rig.

When vertical space is limited, the T-90 short-body annular BOP provides reliable closing and sealing solutions in a compact design. The T-90 BOP can be monogrammed to API Spec 16A.

Specifications
Application
  • Onshore
  • Well servicing
  • Drilling
Bore sizes and working pressures
  • 7 1/16 in: 3,000, 5,000, and 10,000 psi [20,684, 34,474, and 68,948 kPa]
  • 9 in: 3,000 psi [20,684 kPa]
  • 11 in: 3,000 and 5,000 psi [20,684 and 34,474 kPa]
  • 13 5/8 in: 3,000 and 5,000 psi [20,684 and 34,474 kPa]
Body styles
Single
Packer material
Synthetic rubber

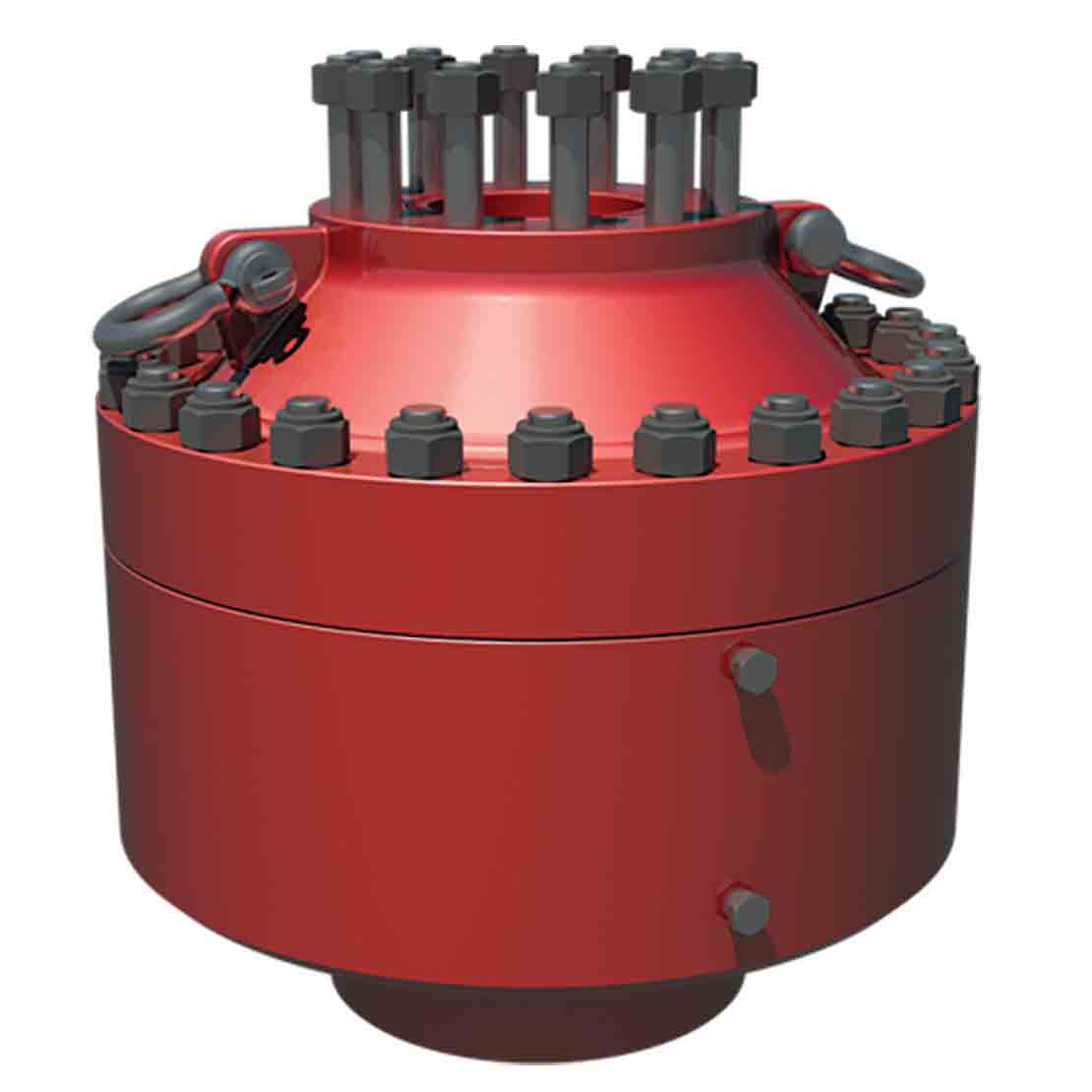

T-90 Annular BOP 3D model
