Product Sheet CN Rotary Tables
Offers a number of key features including a large oil capacity that adds to the unit’s durability.
Rotary Tables
Large oil capacity

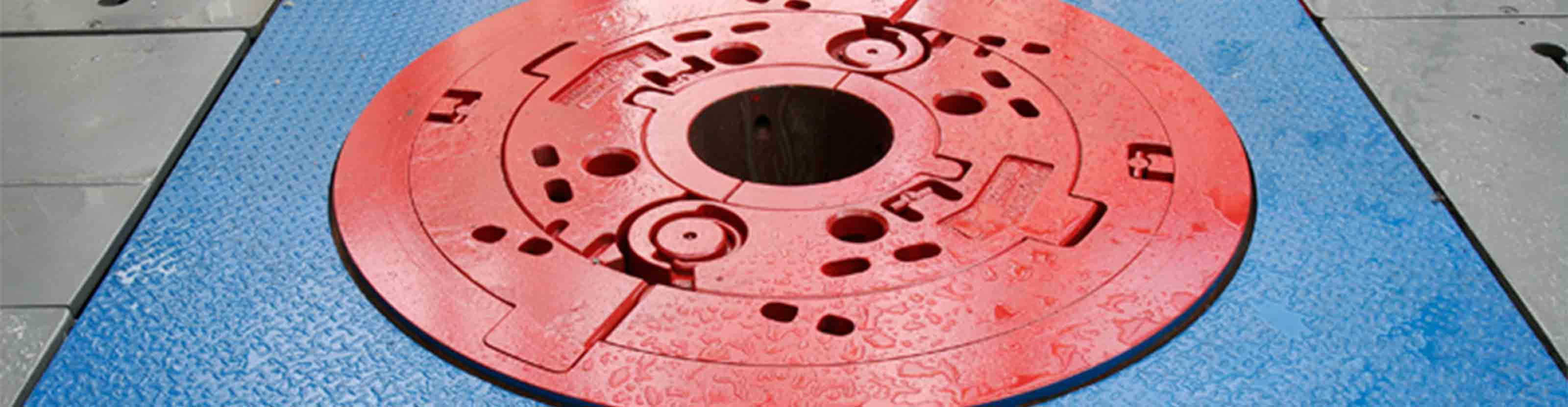

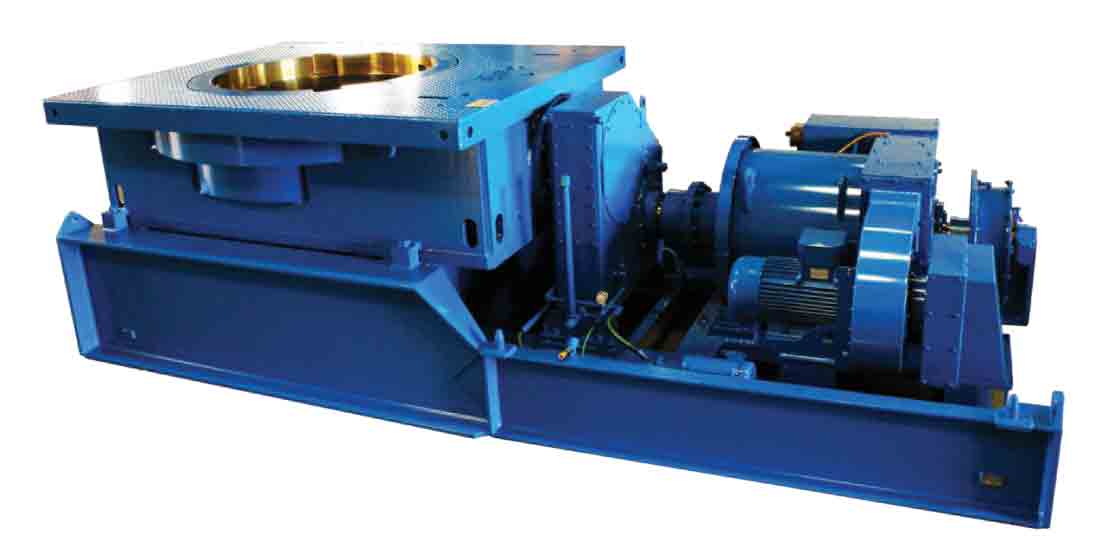

Cameron rotary tables range from 27 1/2 in to 60 1/2 in and feature a large oil capacity that adds to the unit's durability. The rotary table includes a forged-steel fabricated housing and a heat-treated forged-steel turntable. Each rotary table is supplied with spiral-bevel, induction-hardened gears and two independent ratchet-type locks, with lever access from the top to lock the table in position.
Specifications
| Model | Table Opening, in [mm] |
| L-275 | 27 1/2 [699] |
| L-375 | 37 1/2 [953] |
| L-495 | 49 1/2 [1,257] |
| L-605 | 60 1/2 [1,537] |
