Iron Roughnecks

Smart technology for makeup and breakout of drill pipe and drill collars

Cameron provides cost-effective, modern iron roughnecks in a compact format. Featuring an advanced control system, our iron roughnecks keep safety in mind and are a sensible choice for today’s demanding drilling needs.

Pipe range from 2 7/8 to 10 in [73 to 254 mm] for enhanced versatility
Triple-grip torque wrench that delivers 166,000 ft.lbf of torque
High-performance spinner that can deliver 3,500 ft.lbf of torque, improving efficiency during challenging pipe connections
Smart technology for makeup and breakout of drill pipe and drill collars

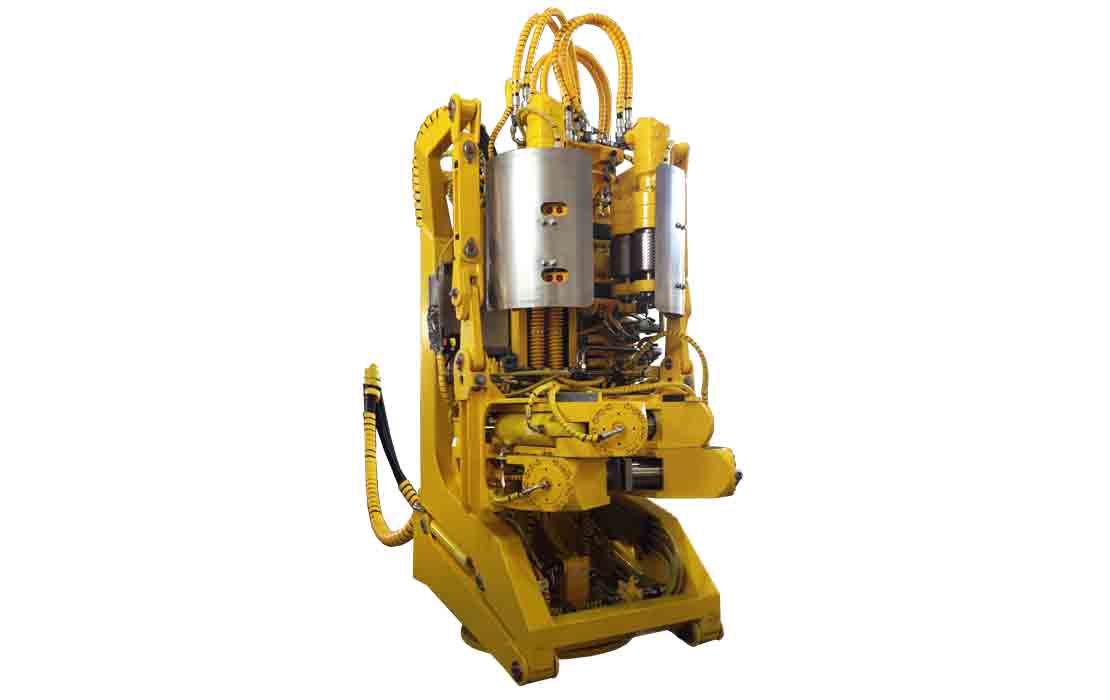

T-P iron roughneck

Light weight
Torque wrench in an articulated arm that allows travel of torque wrench and spinner assembly from parked position to well center
Elevation system that ensures handling of a wide range of stickups with ease and precision Hydraulic Roughneck

T-P iron roughneck

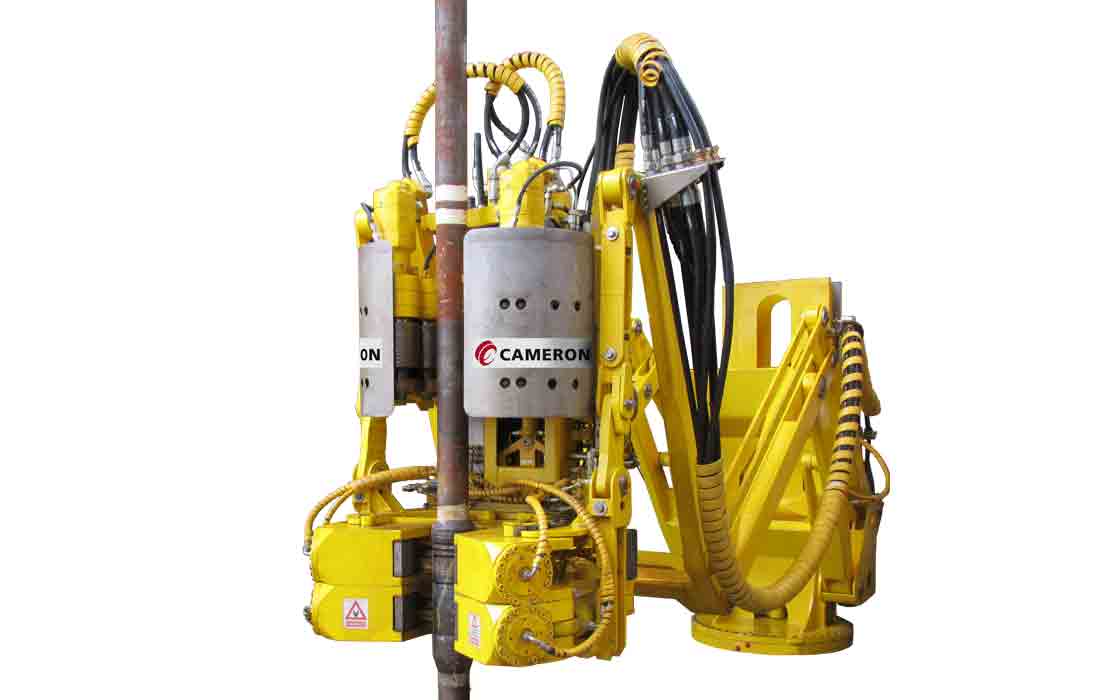

T-P-L iron roughneck

Maximum reach of 16 ft [4.90 m] for enhanced drill floor flexibility
Long-reach articulated arm and slewing system
Torque wrench and spinner assembly that can travel from parked position to well center or other positions such as the mousehole
Elevation system that enables streamlined and accurate handling of a wide range of stickups

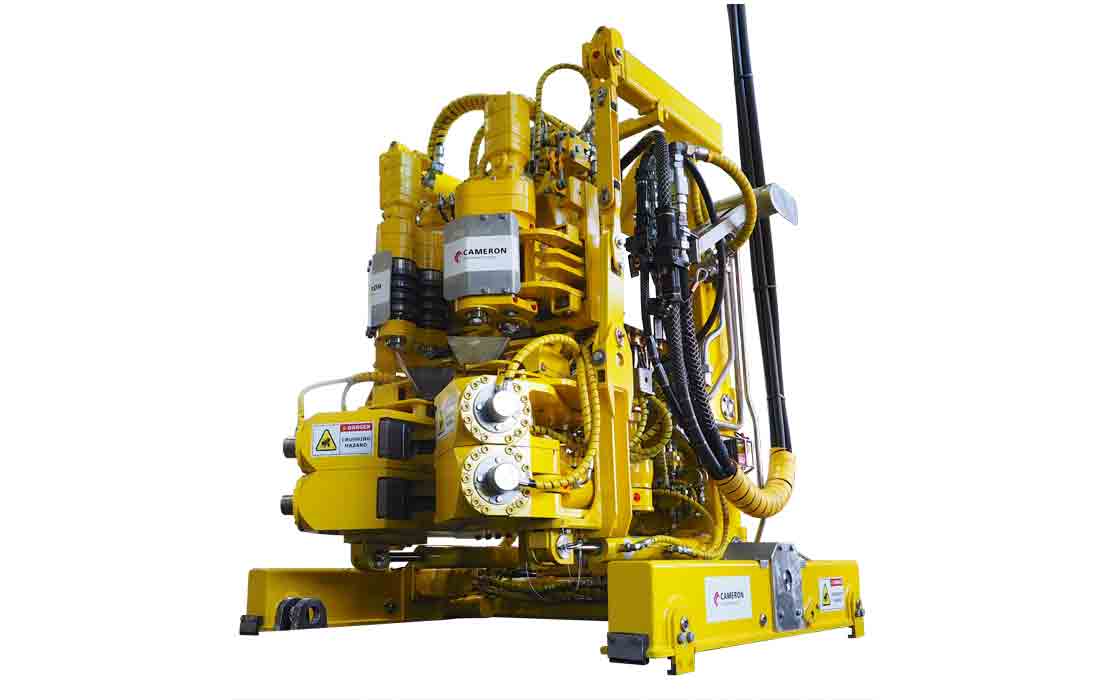

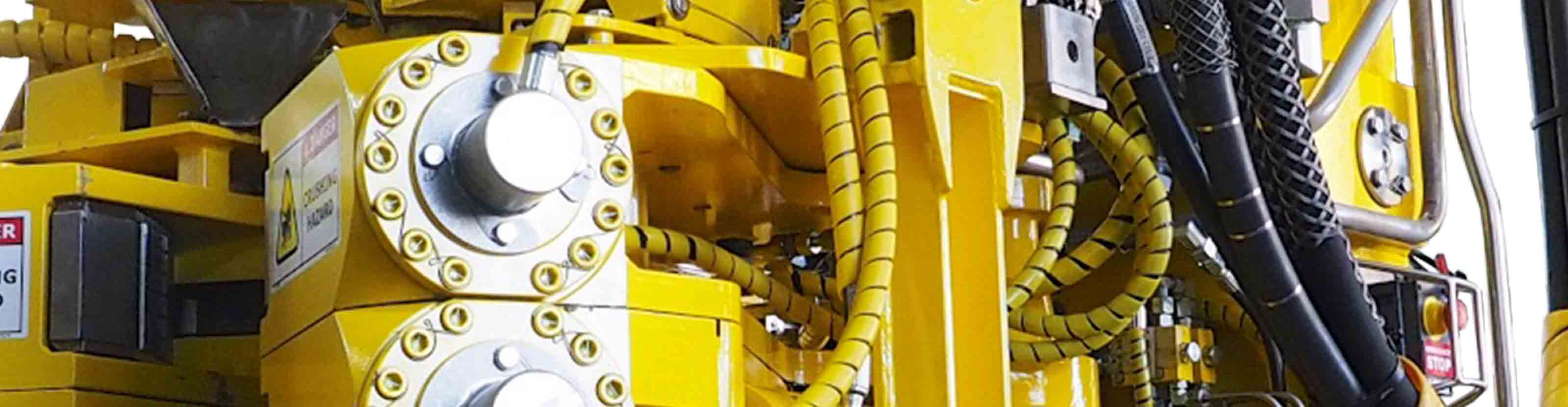

M-R iron roughneck

Modular, rail-mounted design that improves drill floor efficiency and tool changeout safety
Efficient and precise movement from parked position to well center
Backup torque arrestor functionality—81,000 ft.lbf [110,000 N.m] transmitted to the floor
Backup torque readings
Enhanced bit makeup and breakout functionality
Optional Cameron casing tongs and casing backup tongs
