Product Sheet CN Work Basket WB 10.2m
Two-man work basket designed for use during manually-assisted stabbing operations and maintenance procedures to be performed on drilling equipment above the drillfloor.
Work Basket
For stabbing operations and maintenance procedures

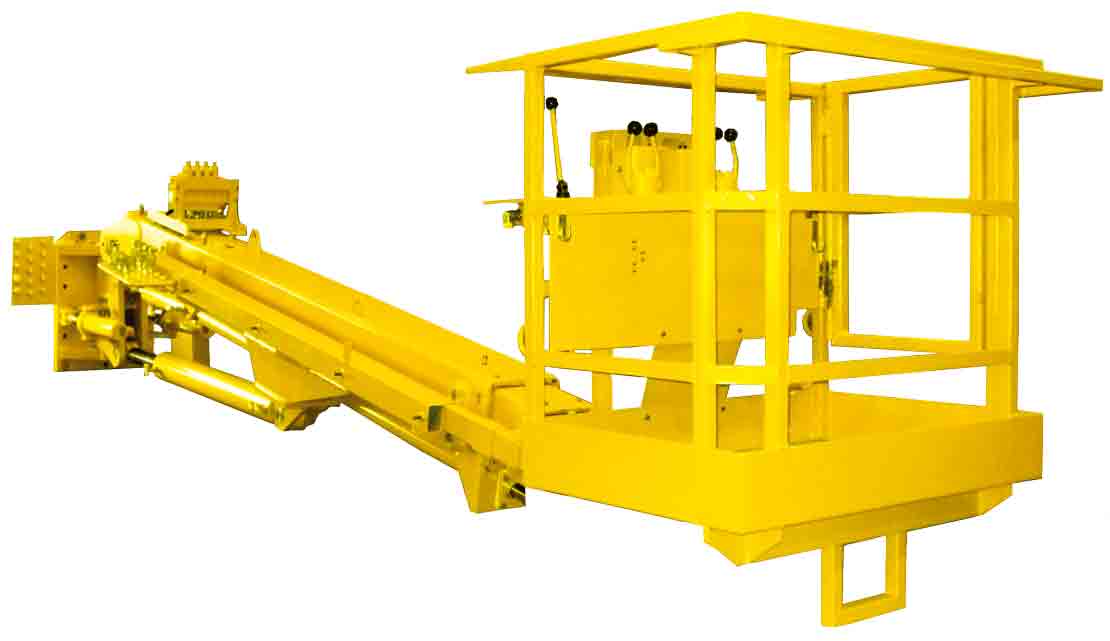

The Cameron two-person work basket is designed for use during manually assisted stabbing operations and maintenance procedures to be performed on drilling equipment above the drill floor.
The work basket includes features such as interface with OnTrack integrated drilling controls system (warning only), proximity sensors to avoid collision, a personnel escape system, and emergency functions capable of lowering and slewing the basket. The work basket can be operated from a local panel mounted in the basket itself or from the remote control panel (location determined on a project-by-project basis).
Features
- Automatic parallel system to maintain basket level when boom is elevated
- Hydraulic unit rated for Zone II operation
- Double-telescopic boom that can be tilted or slewed
- 551-lbm [250-kg] basket capacity
- ±45° boom swing
- Pressure relief valves mounted on all hydraulic cylinders to protect against overload conditions
- Emergency stop on local and remote control panels
- Interface with OnTrack system to provide indication in drilling control room when work basket is in use
