Reliable fluid injection during EOR

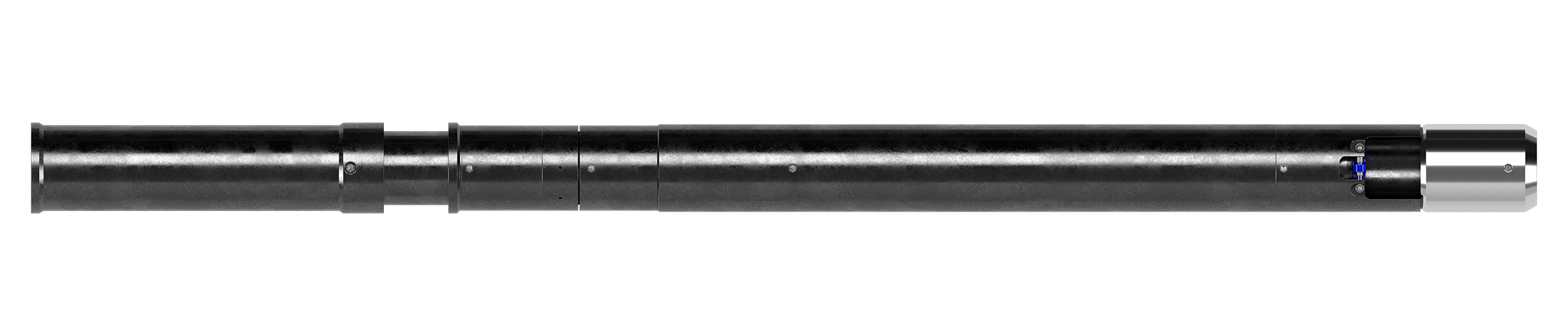

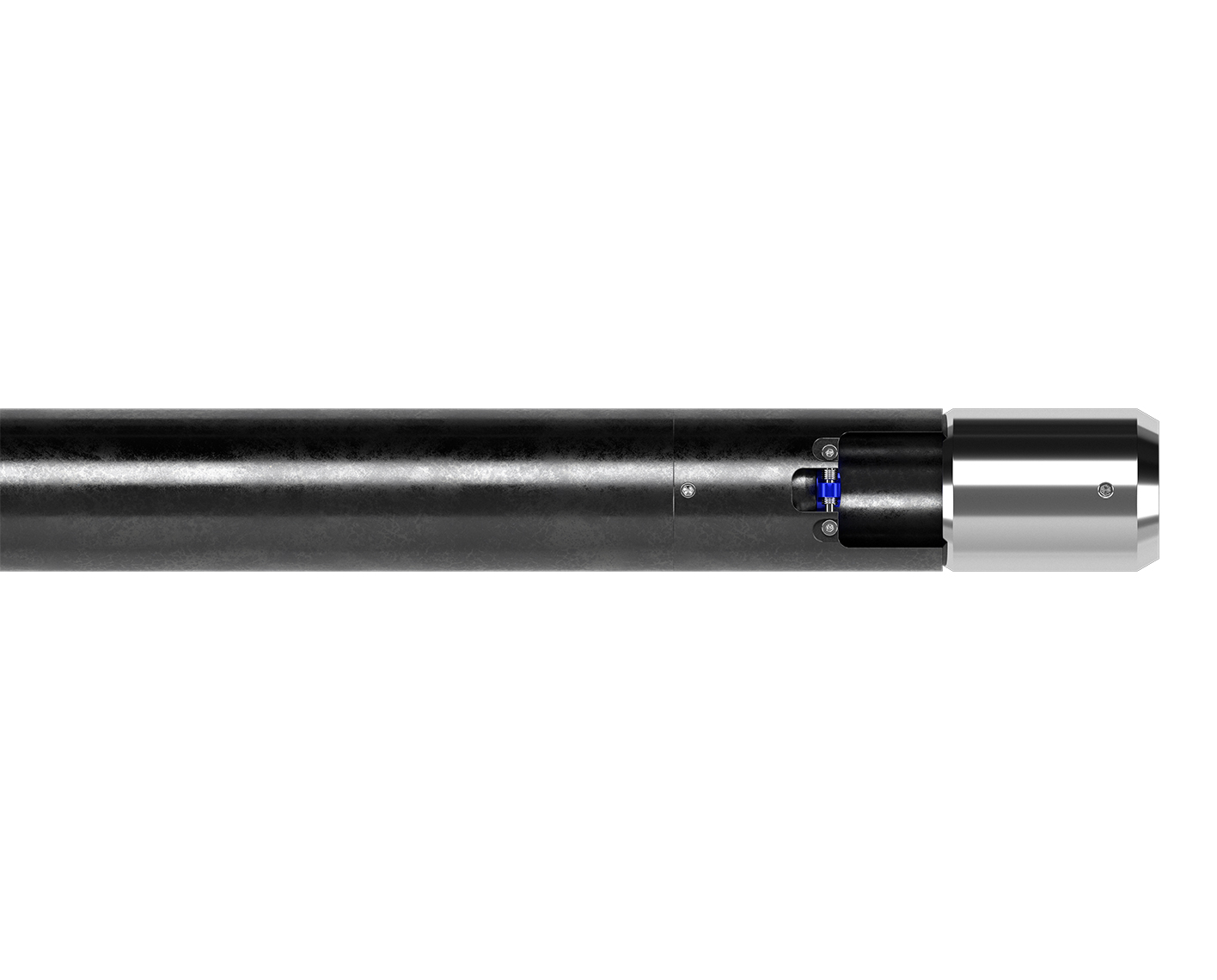

The injection valve of the Peak Family™ flow control and well intervention tools plays a critical role in optimizing enhanced oil recovery (EOR) operations, such as waterflooding or chemical injection. Featuring a flapper-type design, the Peak Family injection valve controls the injection of water, chemicals, and produced fluids into the well, improving well pressure and hydrocarbon mobility.

• Injection of fluids for EOR
• Reinjection of produced fluids

• Slickline conveyance
• SIM retrievable bridge plug compatibility
• Multicycle opening
• Metal-to-metal flapper seal
• Optional insertable carbide choke
• Straight flow path design

Versatile valve deployment

Fluids are injected from the surface through the injection valve, opening the flapper that is held open by a sleeve to prevent the flapper “floating” due to pump pulsations. The injection valve can be suspended below industry-standard lock mandrels or SIM™ retrievable bridge plugs. This versatility enables the valve to be set at any required depth and in a wide range of operational situations.

Additionally, the Peak Family injection valve has the option to insert a carbide choke if necessary to control the injection rate and maintain the hold-open differential.
