SIMplus retrievable bridge plug

Versatile high-performance V3-rated barrier and flow control system

Overview

Reliable zonal isolation and retrieval in challenging applications

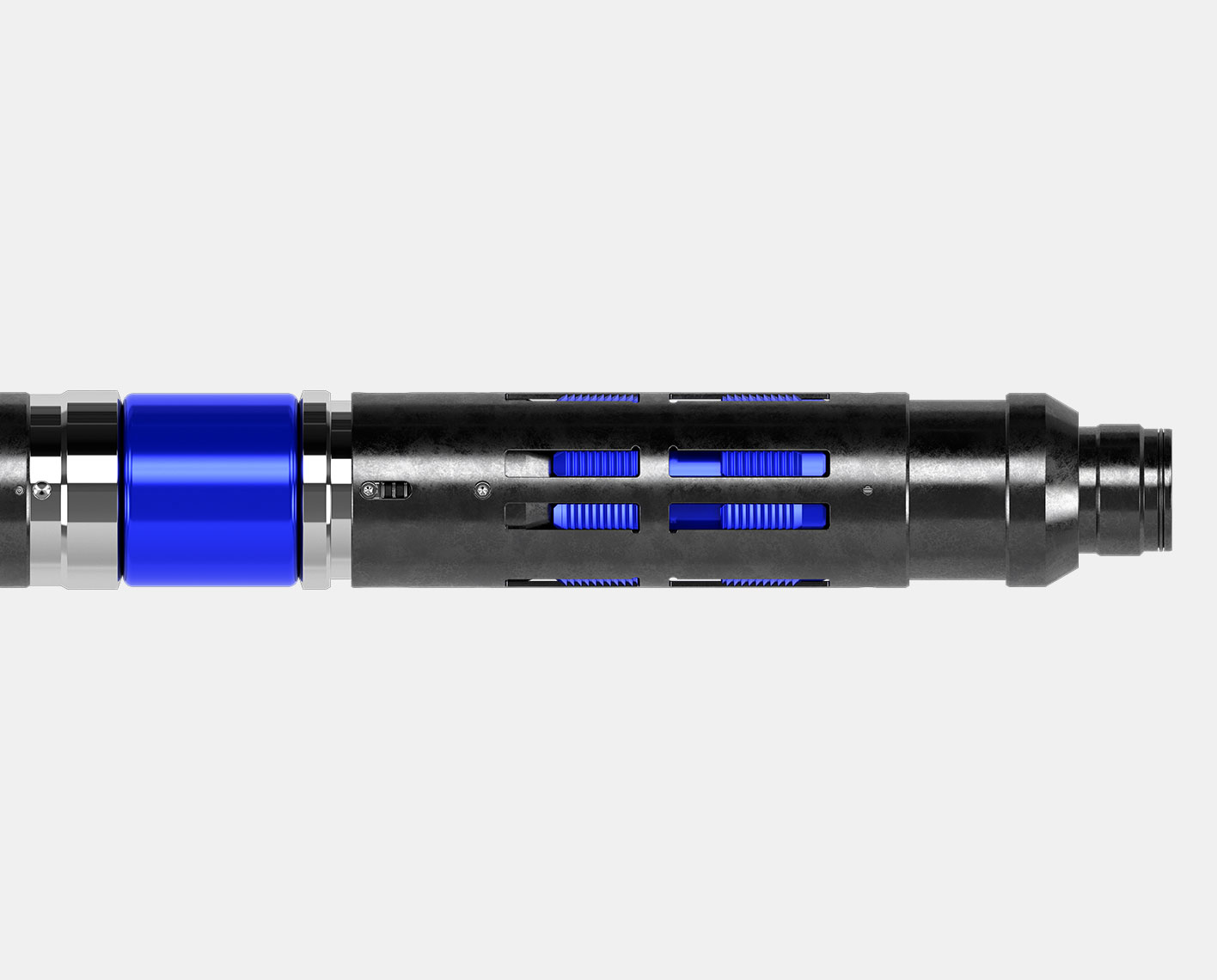

The SIMplus™ retrievable bridge plug provides high-performance, fully certified ISO 14310:2008 and API Specification 11D1 V3-rated sealing integrity for well barrier and flow control applications anywhere in the production tubing.

With an operating range to 300 degF [149 degC] and 7,500 psi [51.7 MPa], the SIMplus plug is available in standard industry sizes from 9⅝ to 7 in for deployment on slickline and other conventional conveyance methods.

Applications

Certified well barrier for well suspension during completion, workover, and well maintenance
Zonal isolation for leaks, water or gas shutoff, or stimulation
Packer setting for deployment of flow control devices and straddles
Deployment of shut-in tools and gauges for production testing
Sour service

Benefits

Creates a reliable, high-performance downhole seal even in dynamic environments with cycling downhole pressure and temperature
Delivers excellent operational flexibility, high assurance, and conformance to the most stringent well barrier criteria
Limits solids ingress and assures recovery reliability
Functions as a packer for deployment of a wide range of inflow control devices, including downhole chokes and check valves, and for the suspension of shut-in tools and downhole gauges
Enables modular straddle applications, including slickline-conveyed gas lift and sandscreen deployment

Features

The ISO 14310:2008 and API Spec 11D1 V3-rated SIMplus retrievable bridge plug provides a simple, easy, and reliable setting solution in challenging isolation applications.

Nominal tubing size: 2⅞ in to 9⅝ in [73 to 244.475 mm]
Temperature: up to 300 degF [149 degC]
Differential pressure: up to 7,500 psi [51.7 MPa]
Rating: ISO 14310:2008, API Spec 11D1 V3
Quality grade: ISO 14310 Level 3 for performance tracking and traceability (other grades available on request)
Components: 17-4 PH^® grade stainless steel

How It Works

High-performance setting and retrieval for a wide range of sizes and systems

The SIMplus bridge plug can be mechanically set at any chosen depth within the completion tubing or liner without the need for a nipple profile.

Available in all industry sizes from 2⅞ in to 9⅝ in, it can be deployed by all conventional conveyance methods including slickline, e-line, coiled tubing, drillpipe, and tractor. Additionally, it has multiple equalizing assembly options to suit well and operational conditions, including melon-, prong-, or pump open-type systems.

The SIMplus plug can be recovered using a conventional pulling tool on any conveyance method.

It is simple to redress in the field, minimizing asset requirements and NPT and providing greater operational flexibility.
