P3
Postperforating treatment
Remove debris from existing perforations in permeable rocks and increase productivity or injectivity.

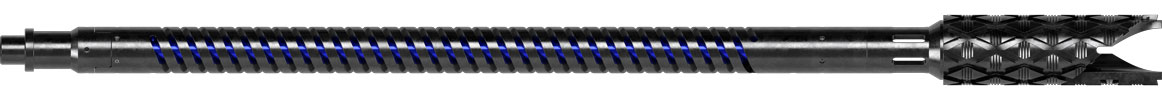

Wellbore cleanup and debris removal tool
Flow assurance is critical in maintaining well productivity and the Torque-Action Debris Breaker™ wellbore cleanup and debris removal tool can reduce the time required to clean up a compromised wellbore, particularly in the case of stubborn-to-remove and hard scales that resist traditional methods including standard broaches, chemical treatments, jetting, milling, explosives, and sonic pressure pulses.
Enables resuming production faster after cost-efficient, rapid, effective debris removal in comparison with other methods.

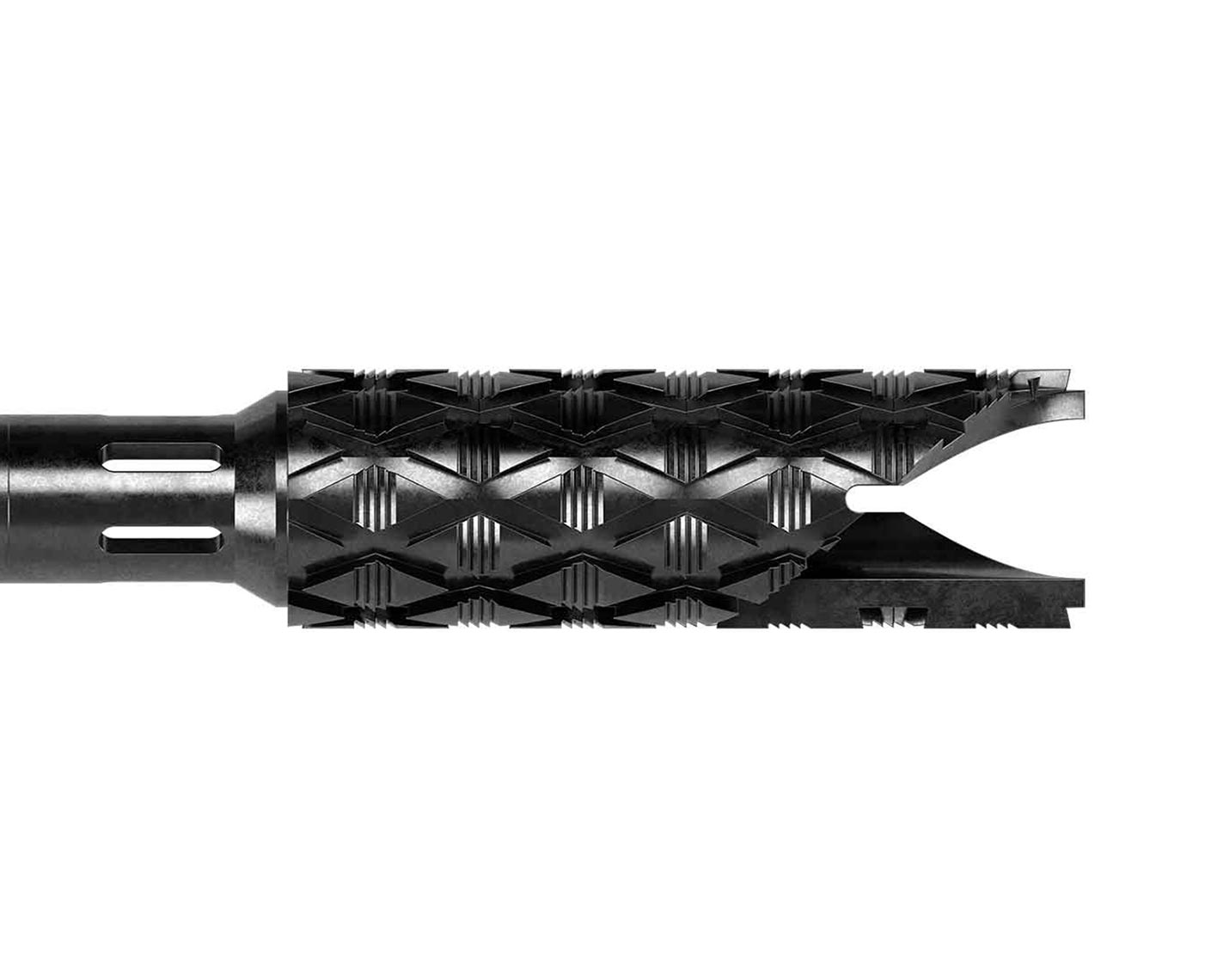

The Torque-Action Debris Breaker tool is a fully mechanical design. The tool is jarred down mechanically in the well. This causes the helically split torque sub to apply a short-duration torque to the cutting edges of the Torque-Action Debris Breaker tool. The main torque body comes in 1½-in, 1⅞-in, and 2½-in diameters and has different shoe sizes for easy exchange on the main body as the scale is broken down. The debris is recovered by subsequent bailer runs.
Torque-Action Debris Breaker Specifications
Main body OD* | 1.5 in [38.1 mm] | 1.875 in [47.62 mm] | 2.5 in [63.5] |
Gauge cutter size range,** | 1.7—2.25 in [43.2—57.1 mm] | 1.9—3.79 in [48.3—96.3 mm] | 2.7 –5.5 in [68.6—139.7 mm] |
All specifications are subject to change without notice.
*Additional sizes available on request.
**Custom sizes available on request.
案例分享
Torque-Action Debris Breaker tool completed efficient debris removal, significantly reducing well intervention time
Read more
