Anchor–Linear Actuator Tool
ReSOLVE Family instrumented wireline intervention services
Employ controlled high-force linear actuation with high-expansion anchoring capability.
ReSOLVE Family smart shifting tool
Multiple, confirmed shifts in a single run
Overview
Multiple measured shifts in any direction to single or multiple components
Both the ReSOLVE™ instrumented wireline intervention service and ReSOLVE iX™ intelligent extreme wireline intervention service use a smart shifting tool (SST). The SST is paired with the high-expansion anchor and high-force linear actuator for efficient, effective shifting.
The smart shifting tool’s keys can be opened and closed on command, enabling latching of multiple shifting profiles in any well condition and sliding sleeves in multizone completions or isolation valves. The linear actuator's bidirectional capabilities allow multiple shifts in any direction, in one run—whether to a single component or multiple components in multizone completions. Continuous measurements of displacement and applied force validate completion of the operation.
The ReSOLVE Family service integrates an anchor, linear actuator, and smart shifting tool.
Applications
- Smart shifting
- High-force, high-expansion anchoring
- High-force linear actuation
Benefits
Reliable shifting
Continuous measurements provide real-time confirmation of downhole actuation.
Live monitoring
Built-in sensors enable real-time tool tracking and control of downhole operations.
Adaptive operations
Configurable, bidirectional shifting capabilities enable multicomponent shifting in one run.
Extreme environment
High performance even in HPHT, deviated, restricted access, or sour conditions.
Features
Rating
350 degF [177 degC] and 20,000 psi [138 MPa]
Certification
NACE MR0175
Real time
Live measurements, control, and verification
Conveyance
Gravity or tractor
With a larger diameter and more available space, the two-key system of the ReSOLVE service SST delivers reliability and minimizes the toolstring length.
The three-key design of the ReSOLVE iX service 2 1/8-in SST enables the highest expansion ratio and ensures centralization in the largest tubing or completions diameter.
How It Works
Components latched with compliant profile keys

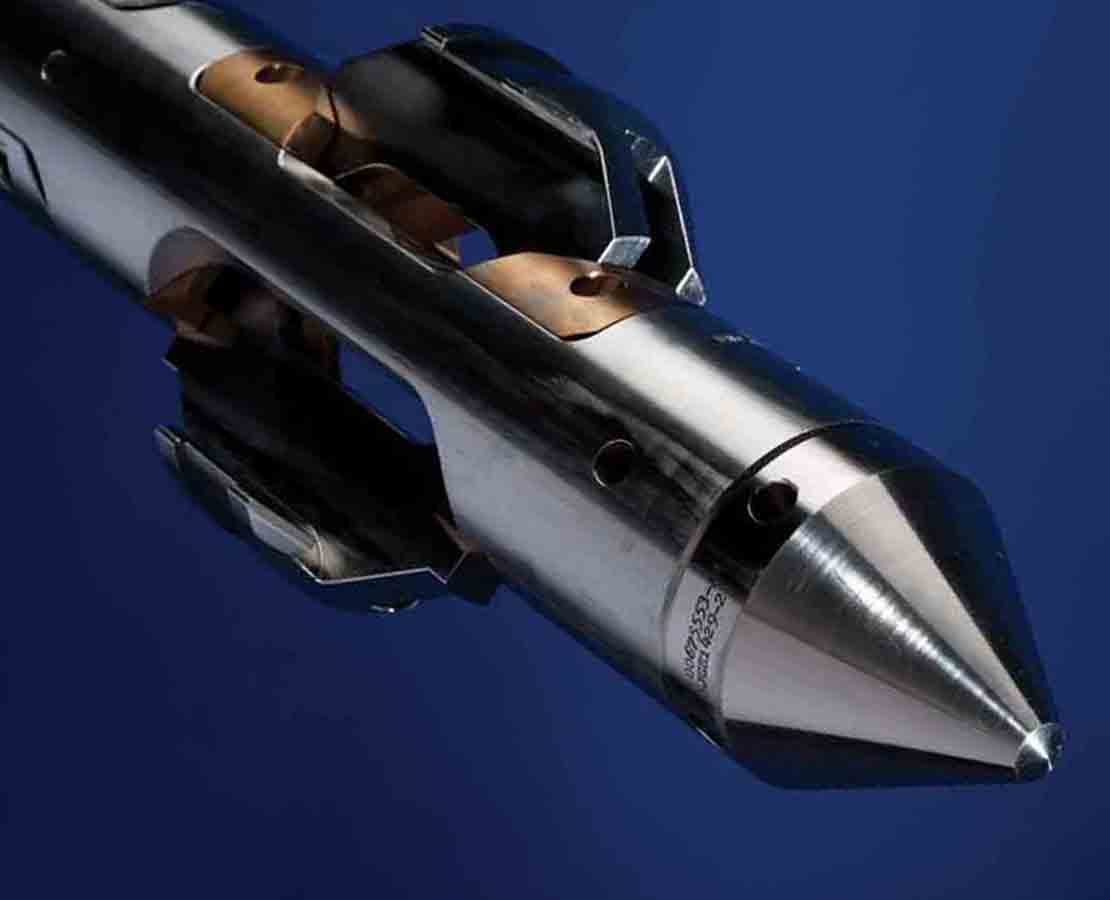

The smart shifting tool’s keys are fully retracted while running the tool downhole, enabling the tool to pass any restrictions. To latch a selected completion component, the smart shifting tool radially extends profile keys with a specified preload force. The extended keys remain compliant to navigate well geometry.
Once the smart shifting tool is latched onto the profile of the component, the anchor secures the tool in the well and the linear actuator extends or retracts to shift the component.
