Novel dual-ESP bypass completion increased field production by 33% with minimal capex, Ecuador

minus
Ecuador, South America, 陆上

An innovative completion architecture leveraging two electric submersible pumps (ESPs) and the PURE™ clean perforations system cost-effectively maximized waterflood efficiency and secondary recovery in the Inchi Field in Ecuador.

Economic constraints posed a challenge to continued production

Empresa Nacional del Petróleo (ENAP) operates the Inchi Field in northeastern Ecuador. Daily production was 3,000 bbl/d with one injector and 11 producers. The injection well used dumpflooding, producing water from one zone and injecting it into the oil reservoir to provide the drive for secondary recovery; the water did not require any treatment at surface. When operational issues in the injector started causing a decline in production, a solution was required. An oil producer (Inchi A9) on the same pad was identified as a suitable source of injection water. The water chemistry would avoid delays and capital expenditure on surface facilities for water treatment and pumping, which was critical to project economics. At the same time, ENAP did not want to lose production from the well.

Pioneering completion architecture minimized time and costs

ENAP and SLB decided to implement an inverted dual concentric ESP design for the selected well. The novel completion includes a flow inverter, which enables the upper ESP to produce the lower zone while the lower ESP produces the upper zone.

  • Water suitable for direct injection is pumped from the lower zone to surface by an S8000N high-efficiency REDA™ pump and supplied to the injector. Using the upper pump—which is closer to the surface—for the water zone ensures adequate pressure and flow rate at surface for injection.
  • At the same time, oil from the upper zone is pumped to surface by a REDA Continuum™ extended-life ESP pump encapsulated in a pod, a sealed and isolated environment. Using the lower ESP for the oil zone maximizes proximity and hence, drawdown and production. With the ability to operate at high efficiency through a wide operating range, the Continuum ESP pump provides the flexibility to reliably produce the well under various conditions.
Well pad with oil and water producer as well as the injector that receives the water.
A well on the same pad as the injector was used to produce both oil and water independently. The water did not require any treatment and was pumped directly to the injector by the upper ESP in the producing well.

The completion architecture includes several proprietary and other components to direct the fluids along the required paths. Moreover, the unique design incorporates technology to compensate for the expansion and contraction caused by downhole temperature fluctuations. This feature enhances completion integrity throughout the life of the well, addressing a known challenge for dual-ESP systems in the region. No surface processing or treatment facilities are required.

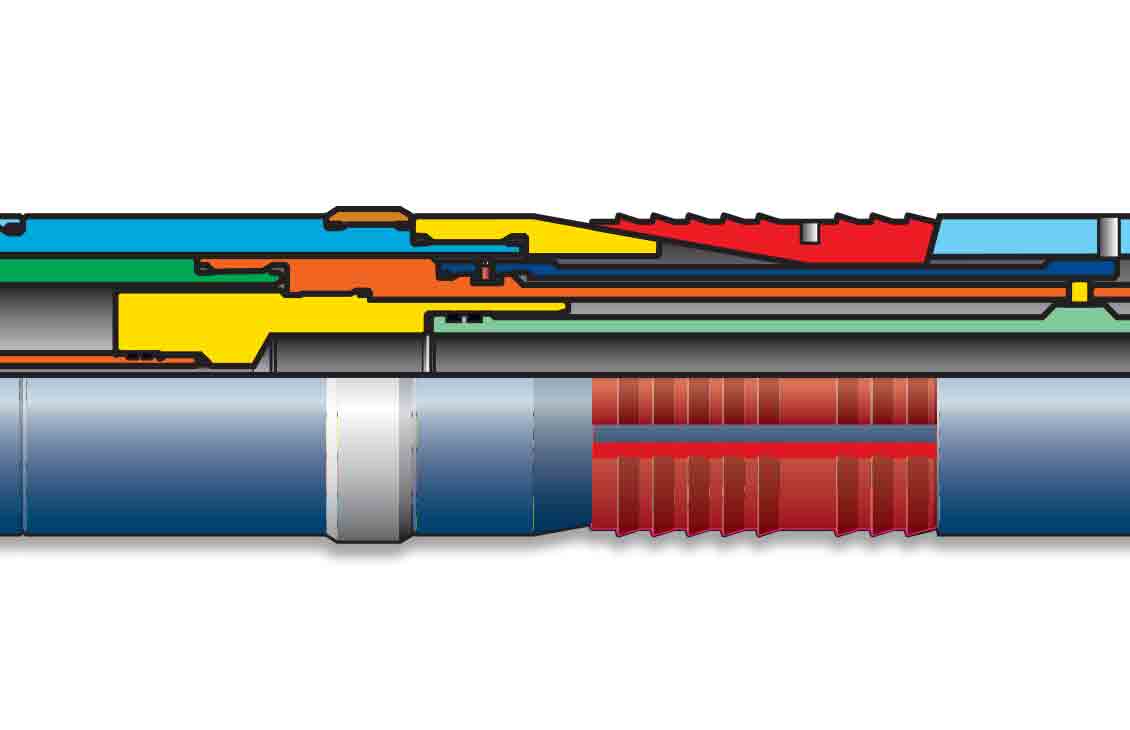

Located below the completion string were the perforating guns for the water zone and a monobore anchor with automatic release (MAXR) tool for anchoring the guns. The MAXR enables automatic gun dropoff at the instant of detonation—before formation sand can cause the guns to stick. After the crew installed the completion, oil flow was restarted using the lower ESP and subsequently, the water zone was perforated. An eFire™ electronic firing head, which is activated by pressure pulses down the tubing annulus, detonated PowerJet Nova™ extradeep penetrating shaped charges selected as part of the PURE clean perforations system. This proprietary system minimized formation damage and skin.

Production commenced faster and exceeded best estimates by about 40%

As a result of the innovative design, the best production estimate of 693 bbl/d of oil with 1% water cut was exceeded by about 40%, with the well delivering nearly 1,000 bbl/d. Field production increased by 33% to 4,000 bbl/d as the impact spread to the other wells.

The water zone productivity index was higher than initial estimates, reducing ESP power consumption by 33.3%. By eliminating the need to build surface facilities, ENAP minimized capex and increased production more than 12 months earlier than otherwise possible. Water injection rate can be adjusted via the VSD (used for the upper ESP) and other surface equipment.

Graph shows higher oil production with lower water content as a result of novel dual-ESP completion.
Production from Well Inchi A9 had dropped to uneconomic levels because of issues in the injector well, but it rose rapidly to nearly 1,000 bbl/d after the novel completion design was implemented.

“ENAP has validated this Schlumberger (now SLB) well architecture solution as a pioneer for the explained challenges.”

Diego Cueva, Production Director, ENAP Ecuador
