Precise Placement of Lateral Maximizes Reservoir Exposure and Production Rates | SLB

Precise placement of lateral maximizes reservoir exposure and production rates

minus
Vietnam, 亚洲, 海上

SLB maximized the length of horizontal lateral places within 2-4 m thick oil sands.

We used PeriScope™ bed boundary mapping service with PowerDrive X6™ rotary steerable system (RSS) to geosteer the well through the reservoir. We optimized the reservoir exposure in three target sands, and achieved higher than expected production rates with Well 1 at 1,600 bbl/d, Well 2 at 1,200 bbl/d, and Well 3 at 1,500 bbl/d.

Develop thin oil-bearing sands to mitigate field production decline

The Cuu Long Joint Operating Company (CLJOC)—a joint venture of PetroVietnam, Perenco, the Korea National Oil Corporation (KNOC), SK Energy, and Geopetrol—was experiencing a decline in oil production from 25 wells in the Cuu Long Prospect oil field offshore southern Vietnam. Production in the field had begun in 2003 from a fractured granite basement and later reservoirs were developed in the overlying sands.

During exploration and development drilling, CLJOC identified additional thin oil-bearing sands in nearby reservoirs and decided to develop them to reverse the decline in field production. Achieving that goal would require long laterals and precise well placement to maximize reservoir exposure.

Use distance-to-boundary measurements to geosteer RSS

The PeriScope bed boundary mapping service provided distance-to-boundary data with azimuthal gamma ray and average resistivity measurements. The PowerDrive X6 RSS allowed continuous rotation of the drillstring while steering the well, which optimized drilling efficiency, maximized ROP, and minimized the time spent on dedicated hole-cleaning trips.

While drilling the first lateral, the PeriScope service detected a conductive boundary below the well path, which enabled proactive geosteering decisions to build the trajectory and avoid a premature exit into the underlying shale. The 129-m lateral was placed within the target sand, exceeding the initial objective of 100 m. The well is producing more than 1,600 bbl/d of oil— 50% more than the expected rate—with near-zero water cut.

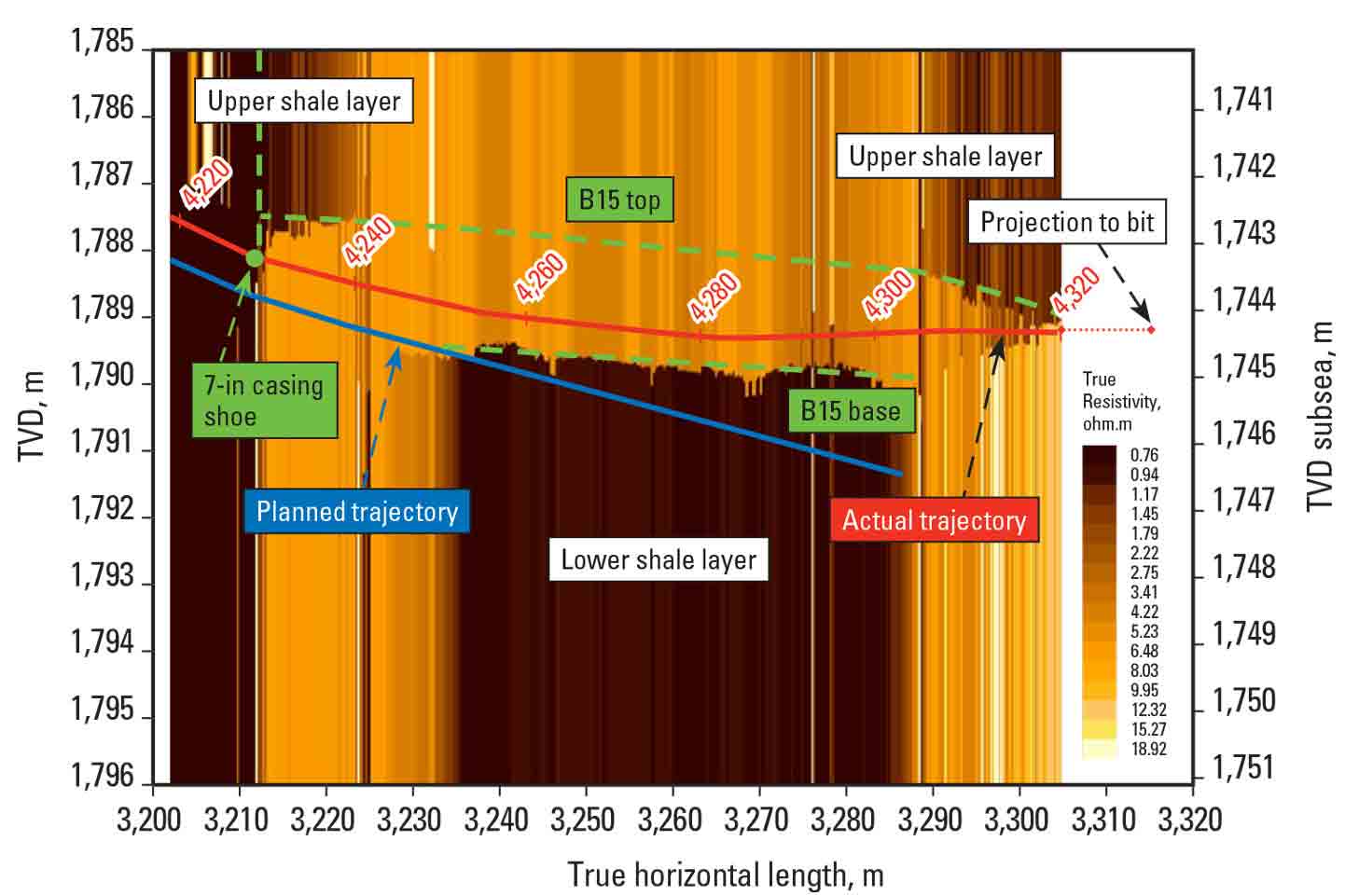

Graph: Precise Placement of Lateral Maximizes Reservoir Exposure and Production Rates in Vietnam - PeriScope bed boundary mapping service provided real-time data that enabled proactive geosteering to maximize exposure in the B15 thin-sand reservoir.
PeriScope bed boundary mapping service provided real-time data that enabled proactive geosteering to maximize exposure in the B15 thin-sand reservoir.

Maximize reservoir exposure to increase field production

Encouraged by the success of the first horizontal appraisal well, CLJOC decided to develop other potential thin-oil prospects. The second well had 57 m of net pay and an initial production rate of 1,200 bbl/d of oil. Its production has been steady, with minimal water cut. And a third horizontal appraisal well targeted the deeper of two sands. PeriScope service enabled the team to maximize reservoir exposure. A total of 110 m of lateral was placed in very good quality sand with an average thickness of 2 to 4 m, again exceeding the 100-m objective.

Initial production from this third well—1,500 bbl/d of oil with only a 10% choke—indicates that it may have been the best of the three. Based on this success, CLJOC may plan additional horizontal wells in the field, using similar technology and well placement methods.

Graph: Precise Placement of Lateral Maximizes Reservoir Exposure and Production Rates in Vietnam - Distance-to-boundary measurements guide lateral placement to increase production in Vietnam field
After PeriScope service had been used to place 110 m of the third lateral in the targeted B9 reservoir sand, the trajectory was intentionally dropped to hit the base of the sand for appraisal purposes. As the trajectory dropped, the well path encountered a possible fault, which was confirmed by the dips in an image from adnVISION* azimuthal density neutron service.

“We in Cuu Long JOC very much appreciate the effective teamwork from SLB while drilling our recent very challenging and long-reach production well. Bringing us the PeriScope technology was, of course, the first critical step—the kind of innovation needed for our continued business unit success.”

David Weichman, Subsurface Geologist, Cuu Long Joint Operating Company
