Well and formation tests, which entail taking measurements while flowing fluids from the reservoir, are conducted at all stages in the life of oil and gas fields, from exploration through development, production and injection. Operators perform these tests to determine whether a formation will produce, or continue to produce, hydrocarbons at a rate that gives a reasonable return on further investments. Operators also use test data to determine the limits of the reservoir and to plan the most efficient methods for producing wells and fields.

During testing, operators measure formation pressure, characterize the formation fluids and reservoir and determine permeability and skin—damage to the formation incurred during drilling or other well operations. Data that indicate how the formation reacts to pressure increases and decreases during a test can also reveal critical information about the reservoir.

Well and formation tests are also primary sources of critical data for reservoir models and are the principal means by which engineers confirm or adjust reservoir model parameters. Engineers use these models to understand how reservoir fluids, the formation and the well interact and use that knowledge to optimize completion and development strategies.

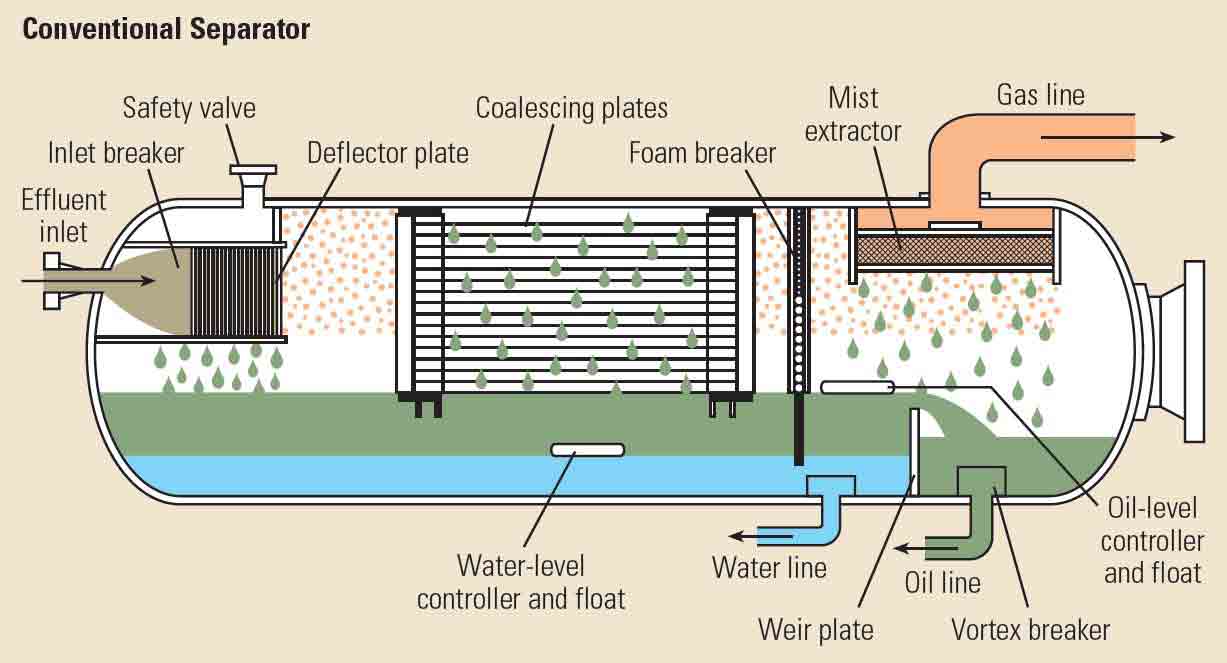

Operators assess the production potential of wells through several test methods, singularly or in combination. They may choose to perform a production well test in which the well is flowed through a temporary completion to a test separator (Figure 1). Or they may use a wireline formation tester to capture fluid samples and measure pressure downhole at the zone of interest. Engineers sometimes perform both types of tests.

During production well tests, technicians flow reservoir fluids to the surface through a drillstring or a drillstem test (DST) string. Packers isolate the zone to be tested while downhole, or surface equipment provides well control. The well is flowed at different rates through a choke valve that can be adjusted to control the flow rate precisely.

Reservoir fluids produced to the surface are sent directly to holding tanks until test operators determine that contaminants such as drilling fluids are eliminated, or at least minimized, from the flow stream. After cleanup, flow is redirected to a test separator where bulk fluids are divided into oil, gas and water, and any debris, such as sand and other material, is removed. The three fluid phases are measured and analyzed separately. Operators may opt to obtain additional reservoir and fluid flow data by simultaneously running production logging tools into the well on wireline. These tools measure the downhole flow rate and fluid composition and can indicate which zones are contributing to the total flow.

During well tests, reservoir fluids are produced to the separator at varying rates according to a predetermined schedule. These tests may take less than two days to evaluate a single well or months to evaluate reservoir extent. Test types include buildup, drawdown, falloff, injection and interference. For most tests, engineers permit a limited amount of fluid to flow from or into a formation. They then close the well and monitor pressures while the formation equilibrates.

Buildup tests are performed by shutting in the well after some period of flow to measure increase in bottomhole pressure (BHP). By contrast, for drawdown tests, engineers open the well after a specified shut-in period to observe BHP decrease. During injection tests and falloff tests, fluid is injected into the formation, and BHP, which increases as a result, is monitored. The well is then shut in and the ensuing decreasing BHP is recorded. Interference tests record the pressure changes in adjacent wells when the test well pressure is changed. The time it takes for changes in the test well to affect pressure at the observation well gives engineers an indication of the size of the reservoir and flow communication within it.

Engineers analyze responses to pressure change schemes using pressure transient analysis, a technique based on the mathematical relationships between flow rate, pressure and time. The information from these analyses helps engineers determine the optimal completion interval, production potential and skin. They can also derive average permeability, degree of permeability heterogeneity and anisotropy, reservoir boundary shape and distance, and initial and average reservoir pressures.

Engineers use specific variations on well buildup and drawdown tests to evaluate gas wells. During a backpressure test, a well is flowed against a specified backpressure until its BHP and surface pressures stabilize—an indication that flow is coming from the outer reaches of the drainage area. An isochronal test is a series of drawdowns and buildups. Pumping rates vary for each drawdown, while subsequent buildups continue until the well reaches its original shut-in pressure. A modified isochronal test—in which drawdown and buildup periods are of equal duration—may also be used.

Based on data from these tests, engineers are able to determine production potential, skin and absolute open flow (AOF)—the theoretical rate at which the well would flow if backpressure on the sandface, or the borehole wall, were zero. Operators use AOF as the basis for calculations to determine the relationship between backpressure settings and flow rates of the well.

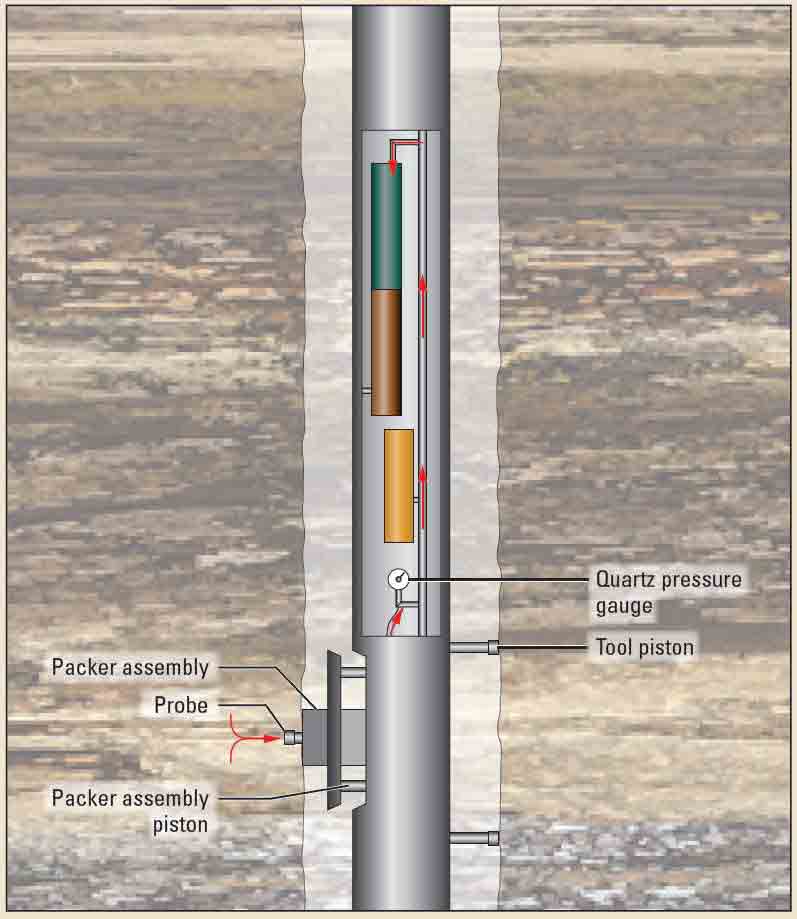

Rather than use well tests, operators may opt to evaluate their wells using wireline formation testers that include a quartz pressure gauge and a fluid sampling tool placed across a production interval (Figure 2). During these formation tests, reservoir fluids are pumped or flowed into the wireline formation tester through a probe inserted into the formation or between packers set above and below the sampling site.

The reservoir fluids, which may be contaminated with drilling fluid, are first flowed or pumped through flowlines in the tool into the wellbore while the contamination level decreases. Once engineers determine that the formation is delivering minimally contaminated reservoir fluids, they redirect flow to sample chambers within the tool. The chambers are retrieved to the surface and transported to laboratories for analysis.

Scientists also use downhole fluid analysis (DFA) to monitor the sampling process. Using optical spectroscopy, or the recorded light spectrum, engineers identify in real time the composition of fluids as they flow into the tool; this method also reveals critical data about the reservoir without waiting for laboratory tests to be completed. Additionally, the DFA measurements confirm that the sample is uncontaminated and eliminate uncertainties associated with fluid transport and laboratory reconstruction of in situ conditions necessary for fluid analysis. Technicians also use DFA data to identify gas/oil ratios, relative asphaltene content and water fraction in real time.

A variety of well and formation test schemes are performed throughout the stages in the life of a well or field. At the exploration stage, operators may use well tests to simulate production after a well is completed to establish production potential and reserves estimates. In addition, capturing large fluid samples at the surface gives experts an opportunity to perform laboratory measurements on the reservoir fluids.

Well tests at the exploration stage also allow operators to determine if low flow rates are affected by skin or are the result of natural permeability of the reservoir. Armed with the knowledge of either situation, engineers can then take appropriate actions, plan treatments that may be necessary once production commences or decide to abandon the project for economic reasons. For instance, well tests can be used to estimate reservoir size, which allows operators to abandon a small reservoir that will not be economical despite high initial flow rates.

During the field development stage, well tests help indicate wells that may require stimulation treatments. Using well test data, engineers predict induced or natural fracture length and conductivity. They can then estimate productivity gains that may be realized from a stimulation treatment. In addition, wireline formation testers can be used for pressure testing to determine static reservoir pressures and to confirm fluid contacts and density gradients. This information helps analyze communication within the reservoir, tie reservoir characteristics to a geologic model and identify depleted zones.

During the production phase, well tests are aimed at monitoring reservoirs, collecting data for history matching—comparing actual production with predicted production from reservoir simulator—and assessing the need for stimulation. These tests use a pressure gauge placed at formation depth to collect data during pressure buildup and drawdown.

Well productivity usually diminishes over time, sometimes as a result of formation damage from fines migration—the movement of very small particles through the formation to the wellbore where they fill pore spaces and reduce permeability. Engineers may perform formation tests to predict the likely effectiveness of treatments to remove these fines. The effects of completion choices may also be assessed using formation tests to aid engineers in planning required remedial operations.

Well and formation test data provide operators with information about their new and producing wells that is critical to making near-term operational decisions. But the real power of well test data is their application to construction or correction of reservoir models, which allow operators to make better long-term decisions about their assets.
