MP Series

Pneumatic piston actuators

Cameron MP Series pneumatic piston actuators are designed to be used with most manufacturers’'gate valves. Recommended when instrument air is available, the MP actuator offers a reliable and cost-effective option when a robust actuator is required.

Fail-safe design
Rising stem design
Cameron sealing technology
Actuator interchangeability
Fixed drift adjustment
Corrosion-resistant materials
Optional devices and accessories

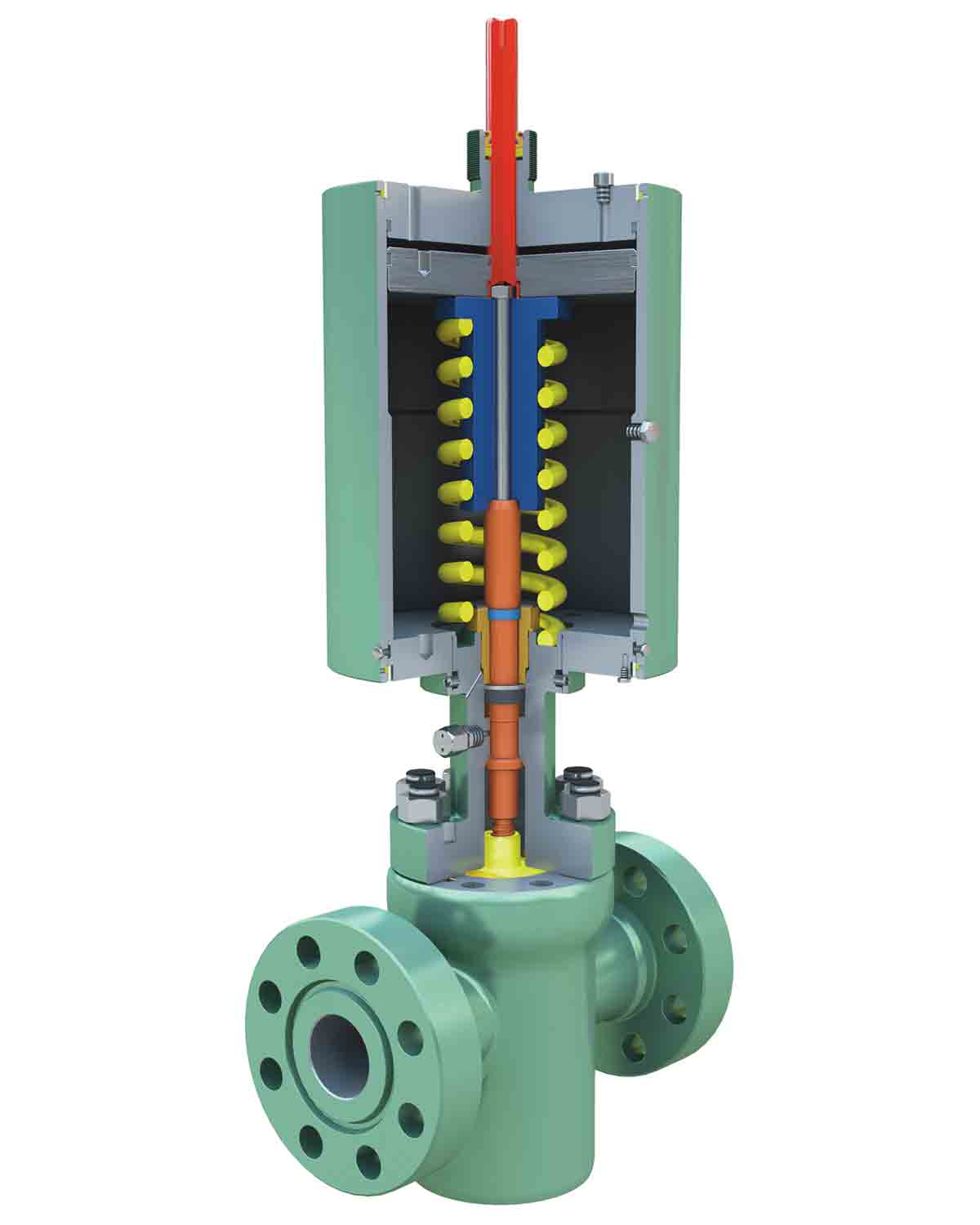

Saf-T-Gard Pneumatic Piston Actuator - MP Series

Actuator specifications

API Spec 6A actuators for use with 1 13/16- through 6 3/8-in nominal gate valves
API Spec 6A Appendix F, PR-2 qualified
Temperature rating: –20 to 250 degF [–29 to 121 degC]; other temperatures available
13- through 17-in standard diaphragm sizes for these valve groups
270-psi [18.6-bar] maximum operating pressure
450-psi [31-bar] test pressure
Standard 1/2-in-NPT inlet port
Wide range of options and accessories available
