GROVE B7

Valves

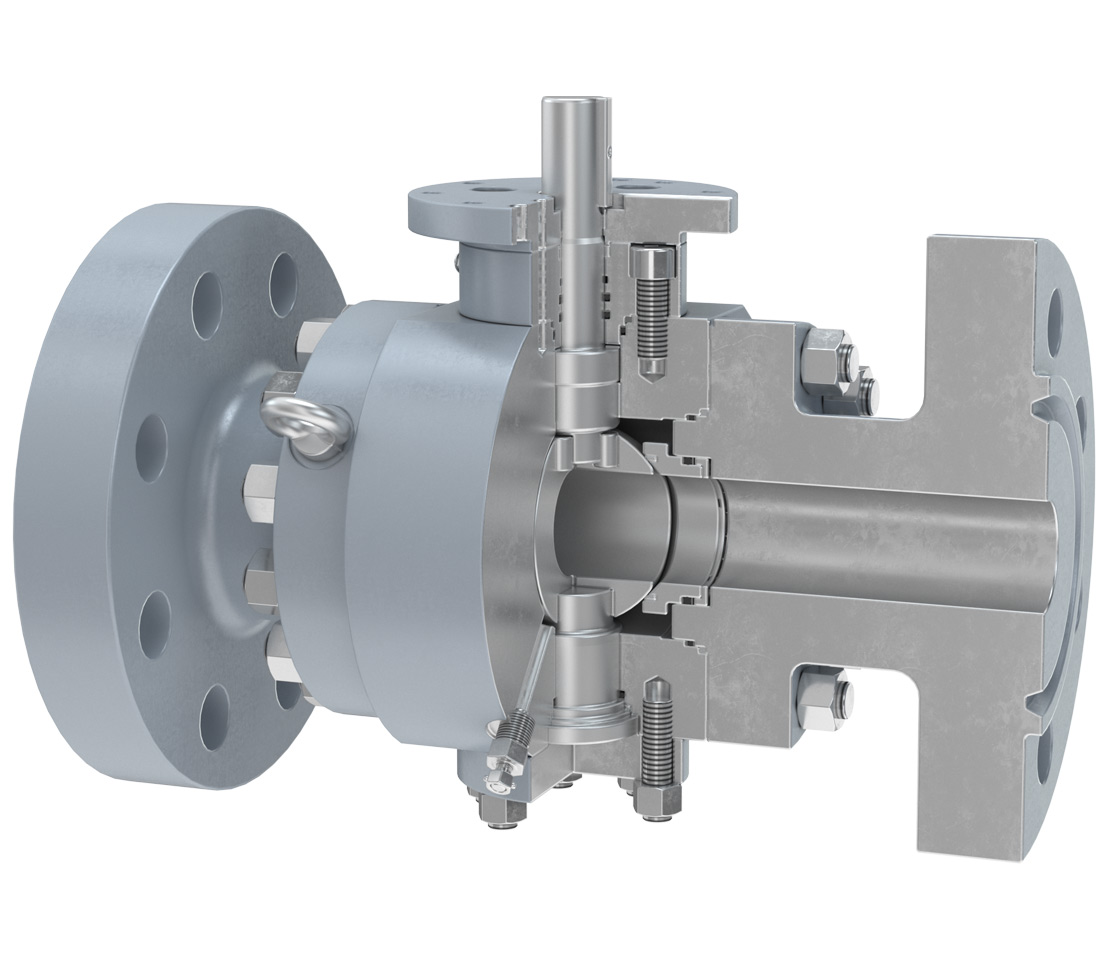

The B7 valve identifies the side-entry ball valve ASME Class 2500. Because of the high pressure and strong force involved, material selection is carried out by paying particular attention to the antiextrusion features of the gaskets and to the resistance of the ball and stem materials. In addition to oil and gas applications, the valve is used for hydrogen, CCUS, renewable fuels, and ammonia service.

Size
1 1/2 to 20 in

Pressure
ANSI 2500

Standard features

Antistatic device
Ball load on the bearing blocks
Body relief valve for overpressure
Emergency grease fitting for stem
Factory-positioned external stops
Fire-safe graphite rings
Metal-backed, self-lubricating bearings and washers
Nickel plating for trim parts
Plastic polymer insert for seat sealing
Sealant injection system for emergency seal
Self-relieving seats
Stem separated from the ball; antiblowout design
Triple-barrier stem seals
Trunnion-mounted ball

Options

PTFE, various grades of reinforced gaskets, and spring energizing for stem and seat sealing
Metal-to-metal seats
Double piston effect (DPE) double-barrier sealing in both directions
Body relief valve for overpressure
Double block-and-bleed capabilities
