GROVE BT1

Valves

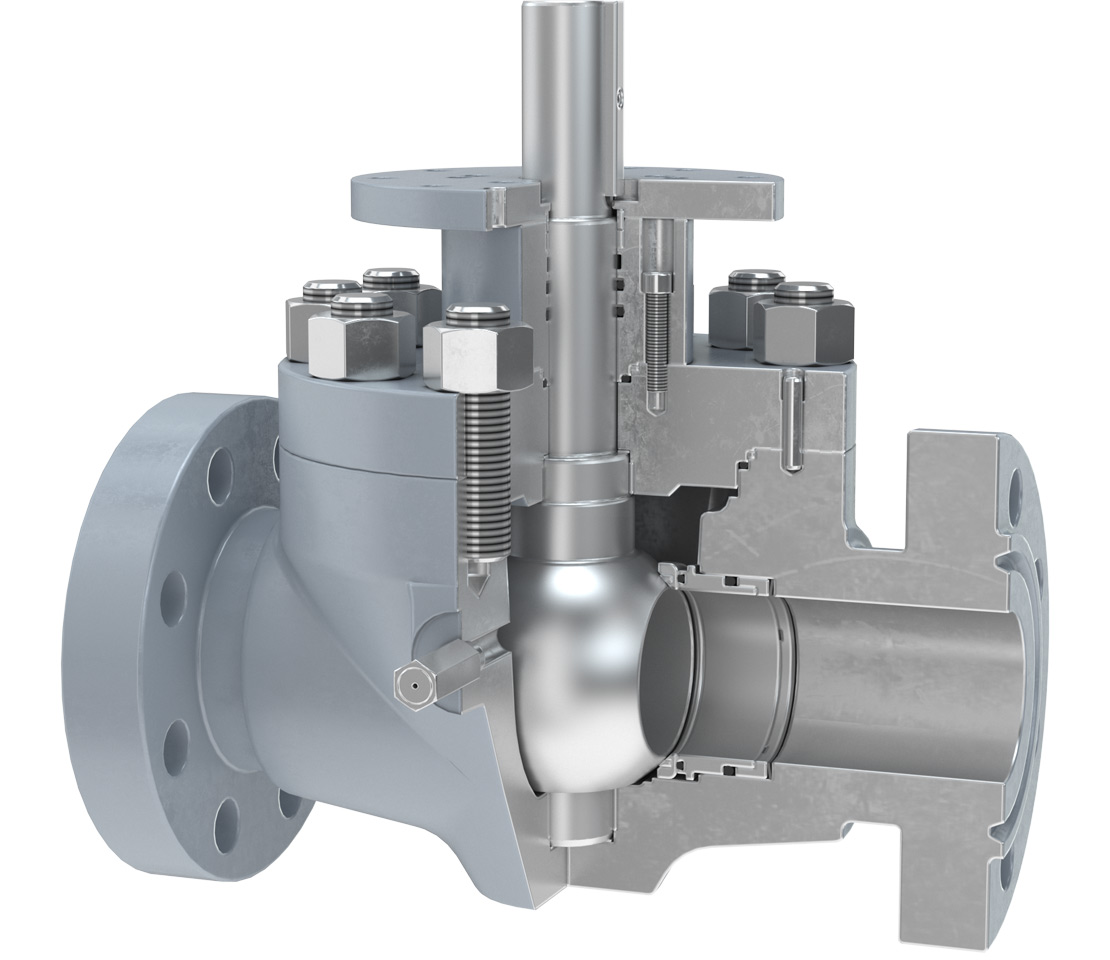

The top-entry GROVE BT1 valve is manufactured in a wide range of diameters and pressure classes. In the standard versions, the valve is suitable for transmission pipelines, pumping, compression and reinjection units, offshore platforms, onshore terminals, pig traps, measuring stations, and surge-relief skids. In addition to oil and gas applications, the valve can be used for renewable fuels service. Whenever ball valves are used in critical service applications, in situ field repairability with quick turnaround is often needed.

Size
1/2 to 12 in

Pressure classes
ANSI 150 to 1500

Standard features

Trunnion-mounted design
Triple-barrier stem seals
Antiblowout stem design
Stem emergency grease fitting
Factory-positioned external stops for a permanent reference to open and closed positions
Low-friction, metal-backed, self-lubricating PTFE sleeve bearings and thrust washers
Plastic polymer insert for seat sealing
Double-piston effect (DPE) seat rings (double-sealing barrier in both directions)
Double block-and-bleed capability
Pressure-relief valve in the body cavity to prevent pressure lock
Electroless nickel coating on pressure-controlling parts and stem
Body thickness in accordance with ASME B16.34
In-line repairable
CE marking (PED directive)

Options

Self-relieving seat rings
Lubricated seats
PTFE spring-energized lip seals for seat and stem sealing
Metal-to-metal seat sealing
Stainless steel or INCONEL 625 overlay on sealing areas
Explosive decompression-resistant seals (standard for Class 600 and higher)
Antistatic device
Features to allow vertical installation and maintenance

Standards compliance

Fire-safe in accordance with API Specs 6FA and BS 6755 Part 2

Body construction

Body bonnet design features bolted construction, and its sizing complies with requirements given in ASME VIII Div. 1
Bolted construction allows in-line disassembly for inspections and potential repairs
Removing the bonnet from the valve allows free access to the ball and the seats, which can simultaneously be taken out without the need for any special maintenance tools
After maintenance, seating surface integrity can be assessed by pressurizing the body cavity only, before any repressurization of the pipeline (standard DPE design)
Body drain provided in the lowest part of the body cavity, featuring an NPT drain valve with a safety plug
