WKM 370D Series
Trunnion-mounted ball valves
Overview
The Cameron WKM 370D Series™ trunnion-mounted ball valves satisfy a wide range of ANSI and API Spec 6D applications. Engineered for heavy-duty, reduced-maintenance performance and manufactured with a variety of body and seal materials, WKM 370D Series valves are extensively used in oil and gas production.
Applications
- Onshore oil and gas production
- Hydrogen, CCUS, renewable fuels, and ammonia service
Tech Specs

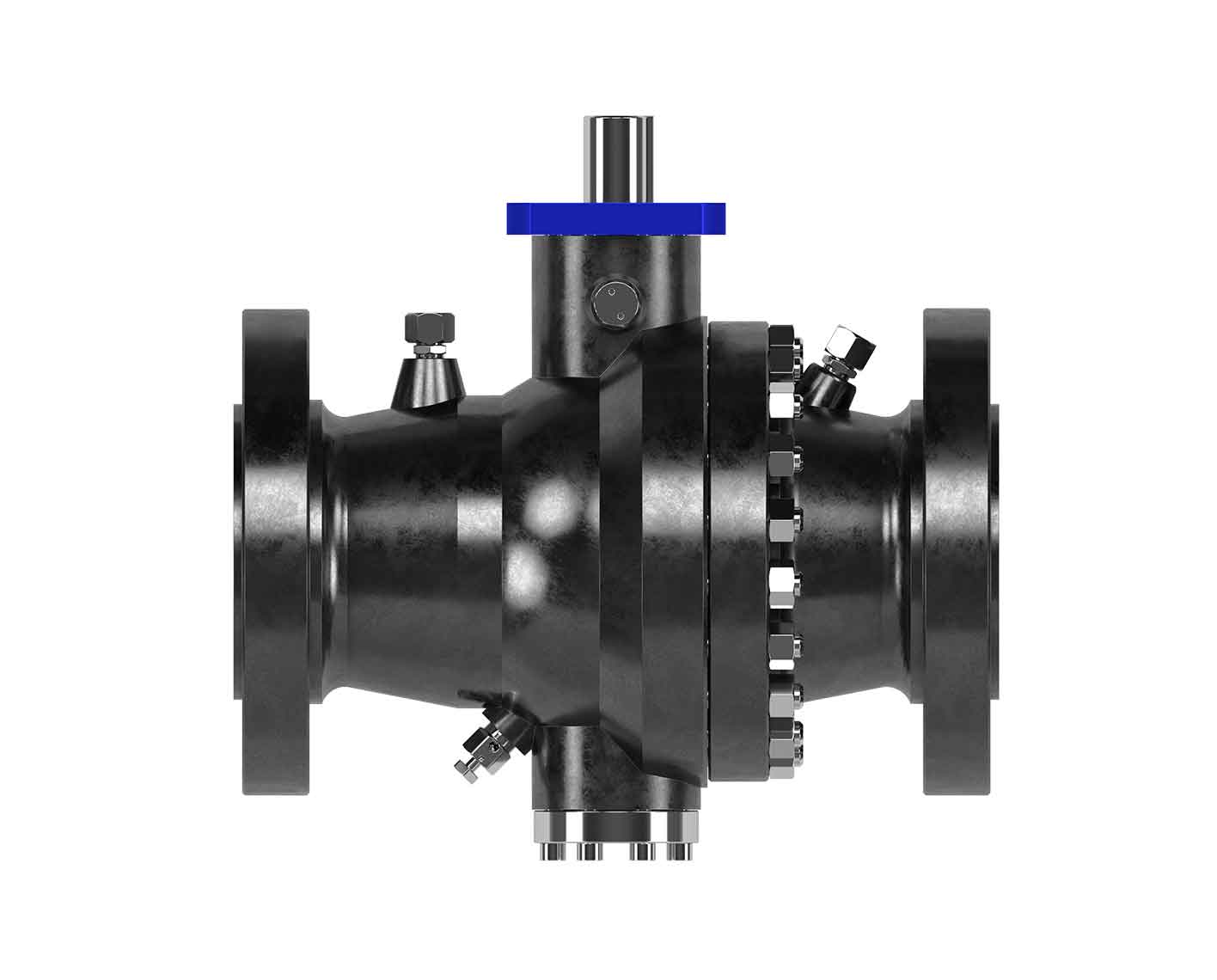

WKM 370D6 trunnion-mounted ball valves
- Sizes: 2 to 16 in [50 to 400 mm]
- Pressure classes: 150 psi to 2,500 psi
- Double block-and-bleed operation
- API Specs 6D, 598, 608, and 607 6th Ed. fire-test
- NACE MR0175/ISO 15156 for buried service
- ASME Standard B16.34 (valves, flange end)
- Optional compliance with CE/PED, ISO 5211 top works, and CRN

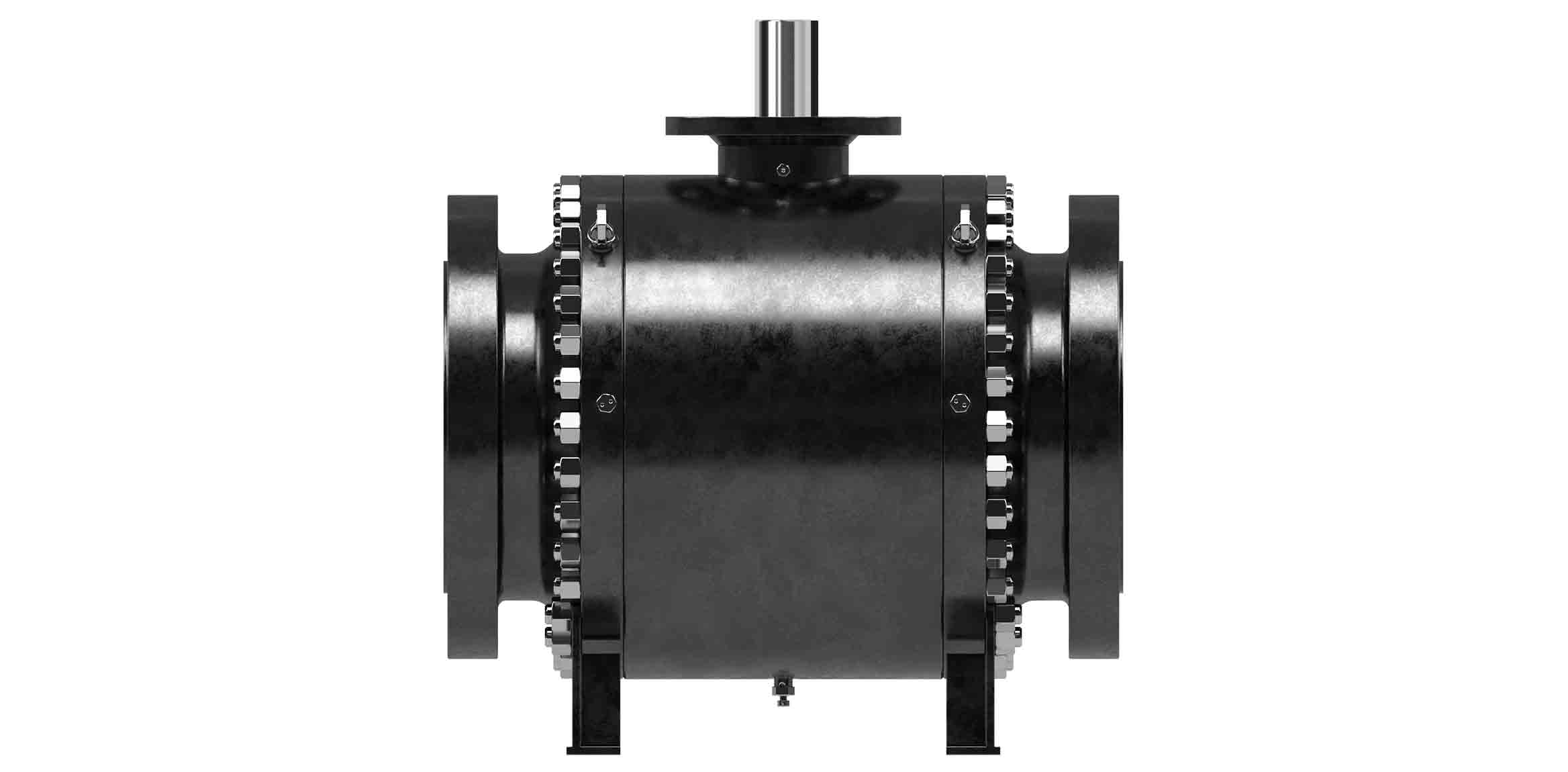

WKM 370D5R trunnion-mounted ball valves
- Sizes: 18, 20, and 24 in [450, 500, and 600 mm]
- Pressure classes: 150 psi to 600 psi
- API Standard 641 certified trims available for low emissions
- Three-piece forged construction
- Double block-and-bleed
- Stem and seat injection
- Adapter plate for direction mount gear
- API Spec 6D
- NACE MR0175/ISO 15156
- Fire-tested to API Standard 607
