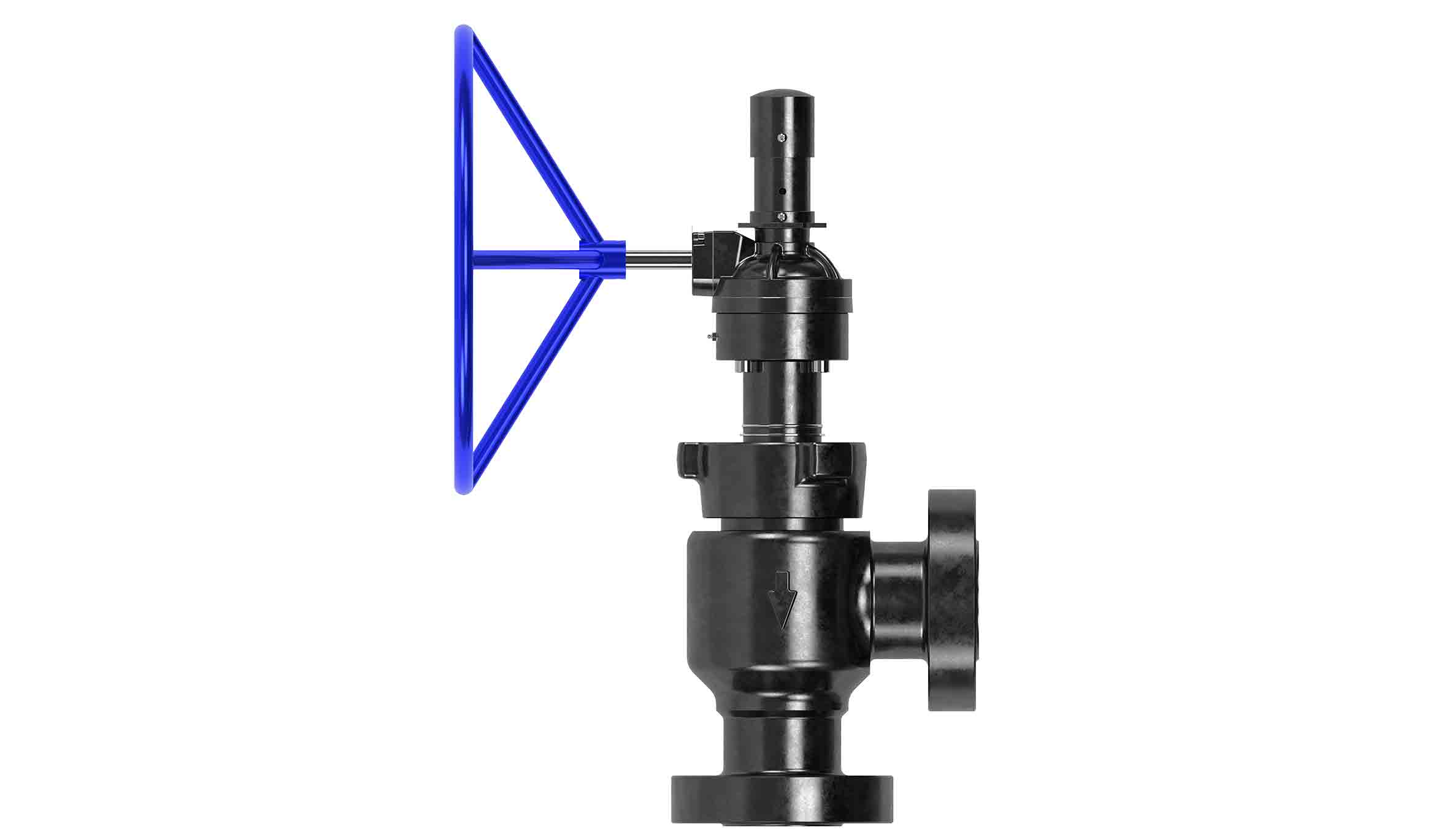

3d render of CAM 20-FB multitrim choke valve

Cameron multitrim flowback chokes

Qualified per API Spec 6A for flowback applications in standard and severe environments

Overview

Adapt the choke valve to the operating environment and increase uptime

With multiple trim options to suit changing conditions, our multitrim flowback choke valves accommodate a wide range of oilfield operations. Their modular design and easily interchangeable trim styles enhance versatility. Further, their adaptability for various modes of actuation enables you to change the actuation type in the field without disassembling the choke, minimizing downtime.

CAM20-FB multitrim choke valve (above) and here, the CAM30-FB multitrim choke valve.

Applications

Improve erosion resistance

Chokes are frequently exposed to erosive wear because of sand and other particles in the production fluids. If left unattended, washouts and choke failures can result, endangering personnel, environmental safety, and production. Multitrim chokes offer full trim interchangeability, supporting planned maintenance for increased uptime. A replaceable needle tip and external sleeve trim further facilitate maintenance.

Benefits

Enhance production efficiency and reduce formation damage

Changing trims saves the time and cost associated with purchasing a different type of choke when well conditions change. Multitrim shale choke valves have a significantly extended service life and enhanced control owing to innovative trim design and the use of advanced materials. The result is more efficient production and less formation damage.

Features

CAM20-FB multitrim choke valve

Interchangeable multitrim
Max. 1.25-in orifice
Max. 15,000 psi
Manual or actuated
Needle-and-seat and plug-and-cage available
1502 connection
Invincible trim™ extreme wear-resistant choke trim for harsher sand environments

CAM30-FB multitrim choke valve
