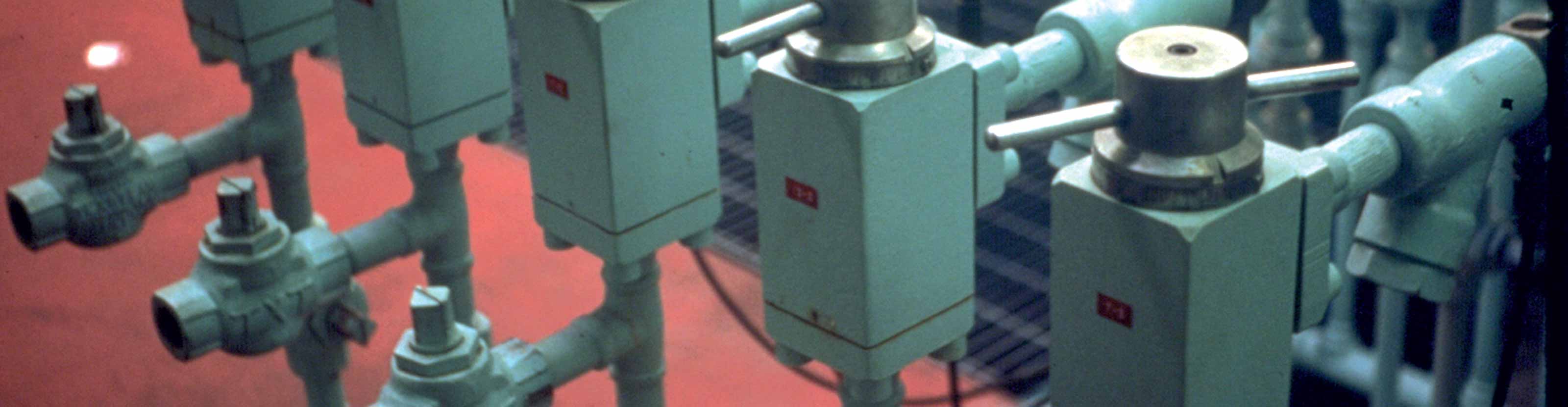

Multiorifice Valves (MOVs)

Disc-style chokes

For more than 60 years, Cameron MOVs have set the standard for precision flow control in applications all over the world.

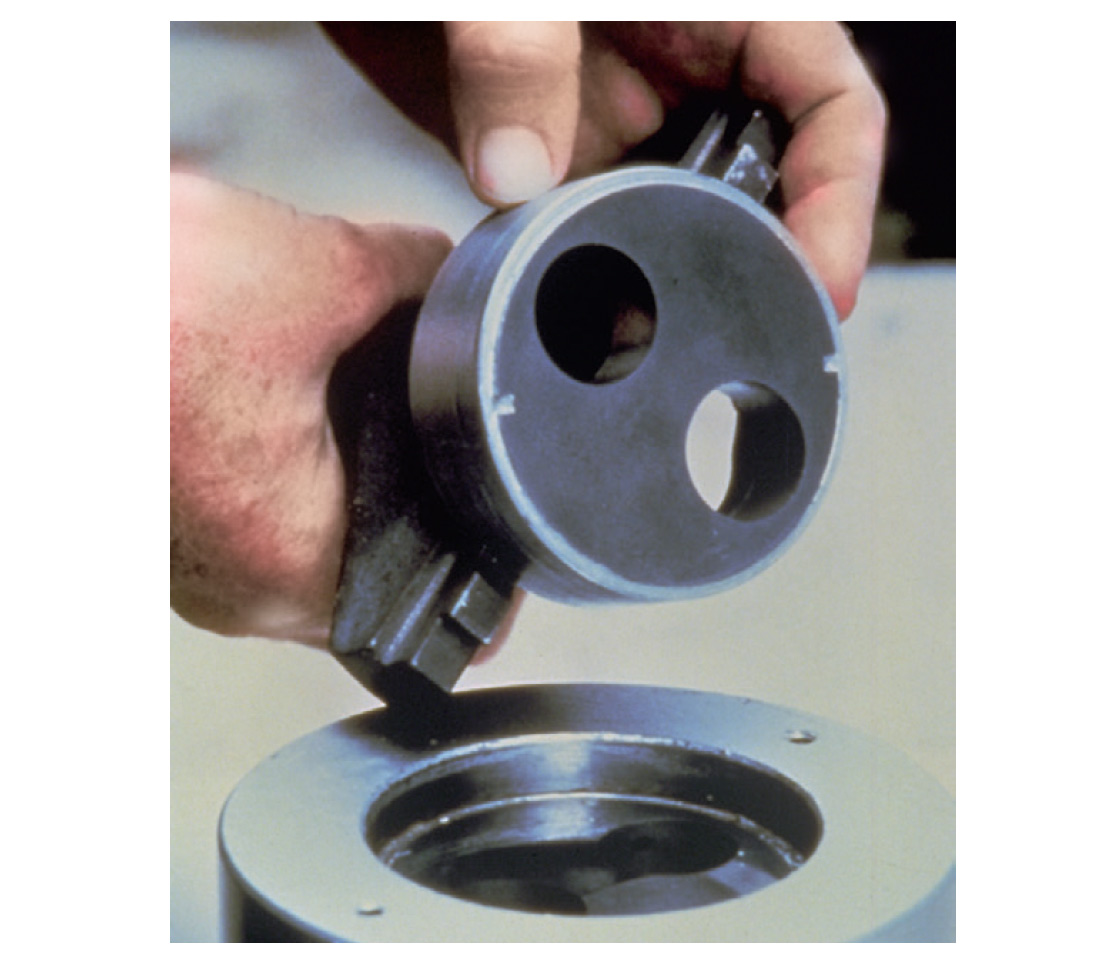

The term “multiple orifice” refers to the exclusive design of the MOV, which uses a set of adjacent discs, each containing a pair of circular openings or orifices. Other shapes can be used for custom applications.

The two discs are diamond lapped on the mating surfaces to tolerances near two light bands of flatness. This allows for complete shutoff over a prolonged period and precise flow rate control throughout the service life of the equipment. In fact, most MOV chokes meet the requirements of ANSI B104 Class IV shutoff as standard.

Applications

The near-linear flow characteristics of the MOV make it ideal for production choke applications, including

wellhead
manifold
separator letdown
heater bypass
waterflood
CO₂
gas lift.

Specifications
Sizes	1 to 6 in [25 to 152 mm]
Pressure rating	10,000 psi
Temperature range	–50 to 650 degF [–46 to 343 degC]
Compliance	API, ANSI, and NACE standards
Configurations	Adjustable or positive; angled or inline
End connections	Range of options
