Compact LEDEEN Actuators
Save valuable rig space

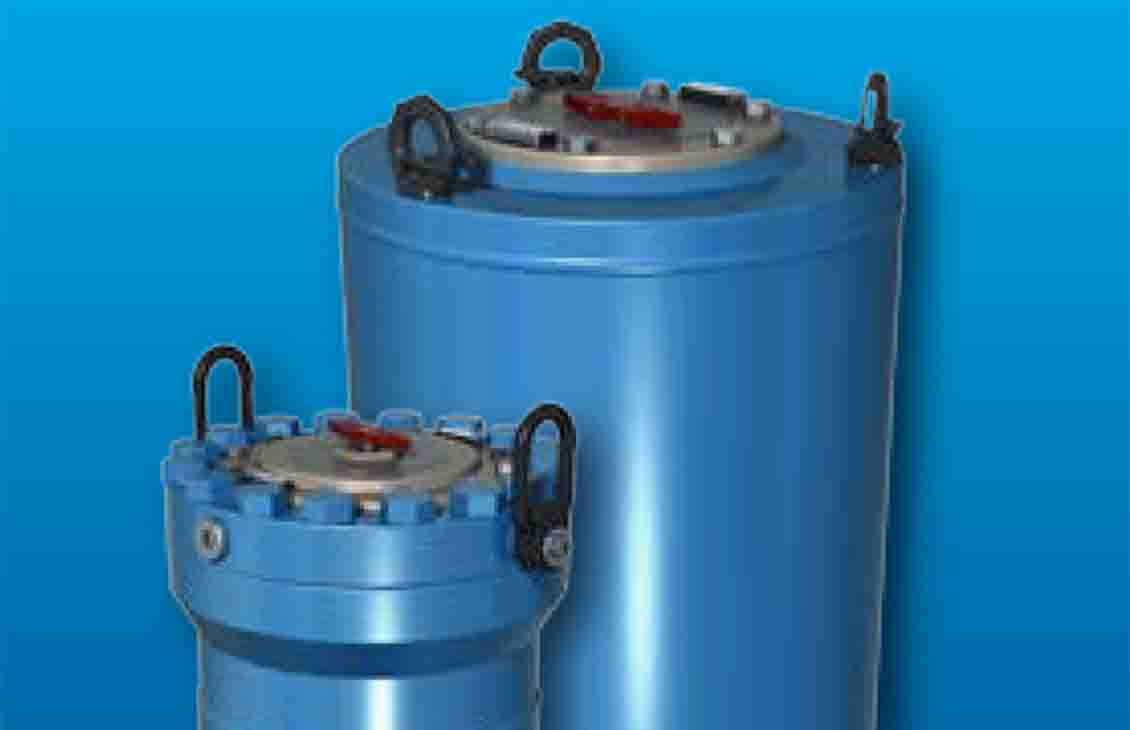

Compact LEDEEN HS and CP actuators—some of the smallest actuators available on the market—save valuable space on a production platform or FPSO vessel when installing automated valve packages within the piping system.
Ideal solutions for space-constrained installations
Unlike conventional scotch yoke actuators, compact LEDEEN actuator profiles are concentric with the valve stem, reducing the required installation space and enabling alternative piping options.
Application-specific torque mechanism
LEDEEN actuators have two different torque mechanisms available, enabling the most appropriate mechanism to be utilized for maximum efficiency.
- High-pressure hydraulic applications: A small helical spline mechanism is used with a small piston diameter to generate high torque outputs.
- Low-pressure pneumatic applications: The larger helical slot mechanism is combined with a larger piston diameter to generate an equivalent torque output.
Independently adjustable travel stops
For precise valve positioning, the actuators feature a patent-pending integrated adjustable travel stop subassembly. Valves can be accurately set to the closed position to ensure positive shut-off and set fully open to optimized process flow.
|
Model |
Temperature Range, degF [degC] | Gauge Pressure Range, psi [bar] |
| HS (Compact hydraulic) | −22 to 185 [−30 to 85] | 145 to 3,000 [10 to 207] |
| CP (Compact pneumatic) | −22 to 185 [−30 to 85] | 40 to 160 [3 to 11] |
